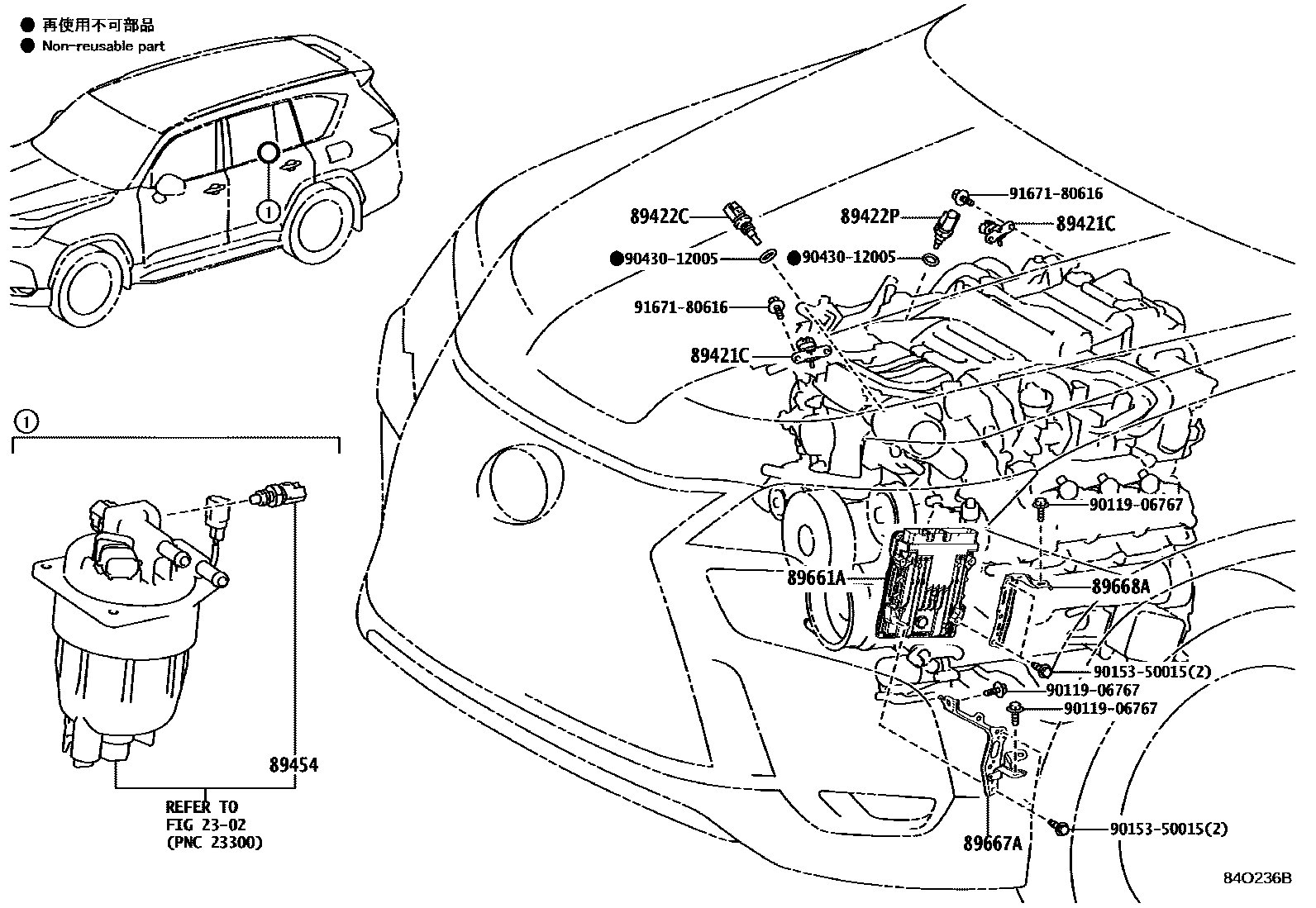

ELECTRONIC CONTROLED DIESEL (ECD)

2302FUEL FILTER

→ Go to FIG 23-02

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20200×2i202411

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030i202411

89422PSENSOR, WATER TEMPERATURE

main89422-33030i202411

89454SENSOR, FUEL TEMPERATURE

main89454-20010i202411

BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR); BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR); KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR); OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); PERU SPEC&EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR); PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR); QATAR SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); UAE SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR); UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); YEMEN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)

89661ACOMPUTER, ENGINE CONTROL

main89661-6A600supersedes 89666-60M91i202411

DENSO; DENSO,BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); DENSO,KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); DENSO,OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); DENSO,QATAR SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR); DENSO,SAUDI ARABIA SPEC&EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680; DENSO,UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)

main89661-6A410i202310-202403

DENSO,NEW ZEALAND SPEC&EXH.EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),*614

main89661-6A411supersedes 89666-60S31i202404-202411

DENSO,NEW ZEALAND SPEC&EXH.EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),*614

main89661-6A590supersedes 89666-60S31i202501

DENSO,SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR)

main89661-6A610supersedes 89666-60M11i202411

DENSO,EXH.EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS); DENSO,EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR); DENSO,EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARD DIAGNOSIS & EGR); DENSO,INDIA SPEC&EXHAUST EMISSION CONTROL-INDIA BS6, WITH(ON BOARD DIAGNOSIS); DENSO,NEW ZEALAND SPEC&EXH.EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS); DENSO,PERU SPEC&EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR); DENSO,THAI SPEC&EXH.EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)

main89666-60M20i202310-202403

DENSO,AZER, GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS& EGR),*614

main89666-60M21supersedes 89666-60M11i202404-202411

DENSO,AZER, GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS& EGR),*614

main89666-60M30supersedes 89666-60M91i202112-202402

DENSO,KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614; DENSO,OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614; DENSO,PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614; DENSO,UAE SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614

main89666-60M31supersedes 89666-60M91i202403-202411

DENSO,BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614; DENSO,COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614; DENSO,KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614; DENSO,OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614; DENSO,PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614; DENSO,UAE SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR),*614

main89666-60M40supersedes 89666-60S31i202112-202402

DENSO,SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR),*614

main89666-60M41supersedes 89666-60S31i202403-202411

DENSO,SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR),*614

main89666-60M80supersedes 89666-60M91i202112-202312

DENSO,SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT(OBD & EGR) SAUDI ARABIA SPEC,*614

main89666-60M81supersedes 89666-60M91i202401-202411

DENSO,SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT(OBD & EGR) SAUDI ARABIA SPEC,*614

main89666-60N10supersedes 89666-60S31i202112-202312

DENSO,INDIA SPEC&EXHAUST EMISSION CONTROL-INDIA BS6, WITH(ON BOARD DIAGNOSIS),*614

main89666-60N11supersedes 89666-60S31i202401-202411

DENSO,INDIA SPEC&EXHAUST EMISSION CONTROL-INDIA BS6, WITH(ON BOARD DIAGNOSIS),*614

main89666-60S30supersedes 89666-60M91i202112-202402

DENSO,*614; DENSO,KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,QATAR SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614

main89666-60S31supersedes 89666-60M11i202403-202411

DENSO,*614; DENSO,AZER, GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS& EGR),*614; DENSO,BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,MOLDOVA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,QATAR SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS &EGR),*614; DENSO,UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614; DENSO,UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR),*614

main89666-60Y20i202310-202312

DENSO,CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARD DIAGNOSIS & EGR),*614

main89666-60Y21supersedes 89666-60M11i202401-202411

DENSO,CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARD DIAGNOSIS & EGR),*614

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-60300i202112-202411

main89667-60350i202411

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60320i202112-202411

main89668-60370i202411

9011906767

main90119-06767
