SWITCH & RELAY & COMPUTER
82715BRACKET,WIRING HARNESS CLAMP
82715WBRACKET, WIRING HARNESS CLAMP
82715XBRACKET, WIRING HARNESS CLAMP, NO.2
82715YBRACKET, WIRING HARNESS CLAMP, NO.3
82716FBRACKET, WIRING HARNESS CLAMP, NO.4
RH
LH
83520GAGE ASSY,OIL PRESSURE SENDER
84540SWITCH ASSY, NEUTRAL START
89429FSENSOR, TEMPERATURE
89467BSENSOR, AIR FUEL RATIO
LH
RH
QATAR SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
SAUDI ARABIA SPEC&EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
89467CSENSOR, AIR FUEL RATIO, NO.2
RH
LH
89467DSENSOR, AIR FUEL RATIO, NO.3
89467ESENSOR, AIR FUEL RATIO, NO.4
89615SENSOR, KNOCK CONTROL
8946A60170BRACKET, EXHAUST SENSOR CLAMP
main8946A-60170
9011906A23
main90119-06A23
9011908C62
main90119-08C62
9043012031
main90430-12031
9046815007
main90468-15007
9155180830
main91551-80830
9167180612
main91671-80612
9167180816
main91671-80816
9167180820
main91671-80820

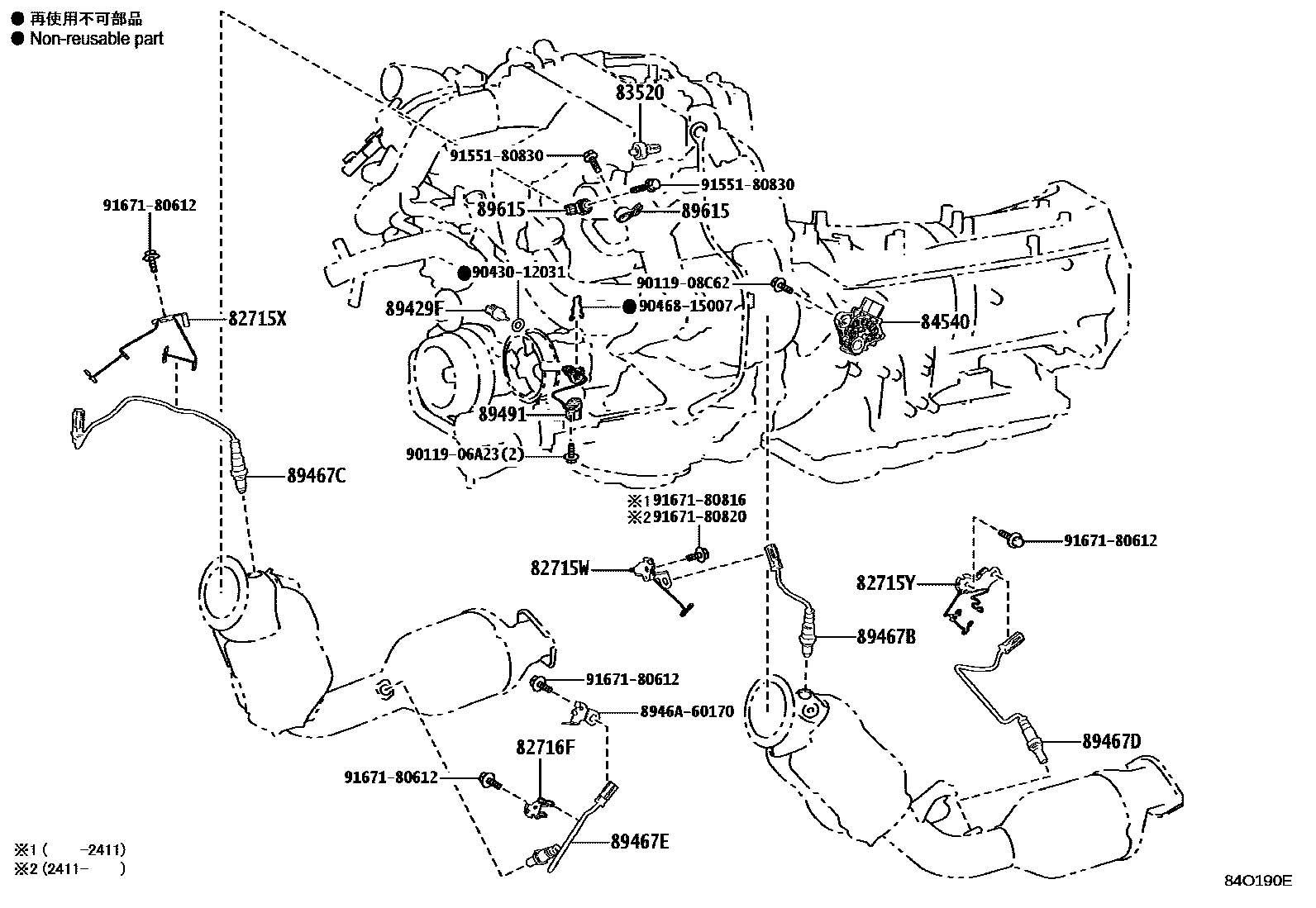

23 parts on this diagram · 30 diagrams in section
