FRONT SEAT & SEAT TRACK

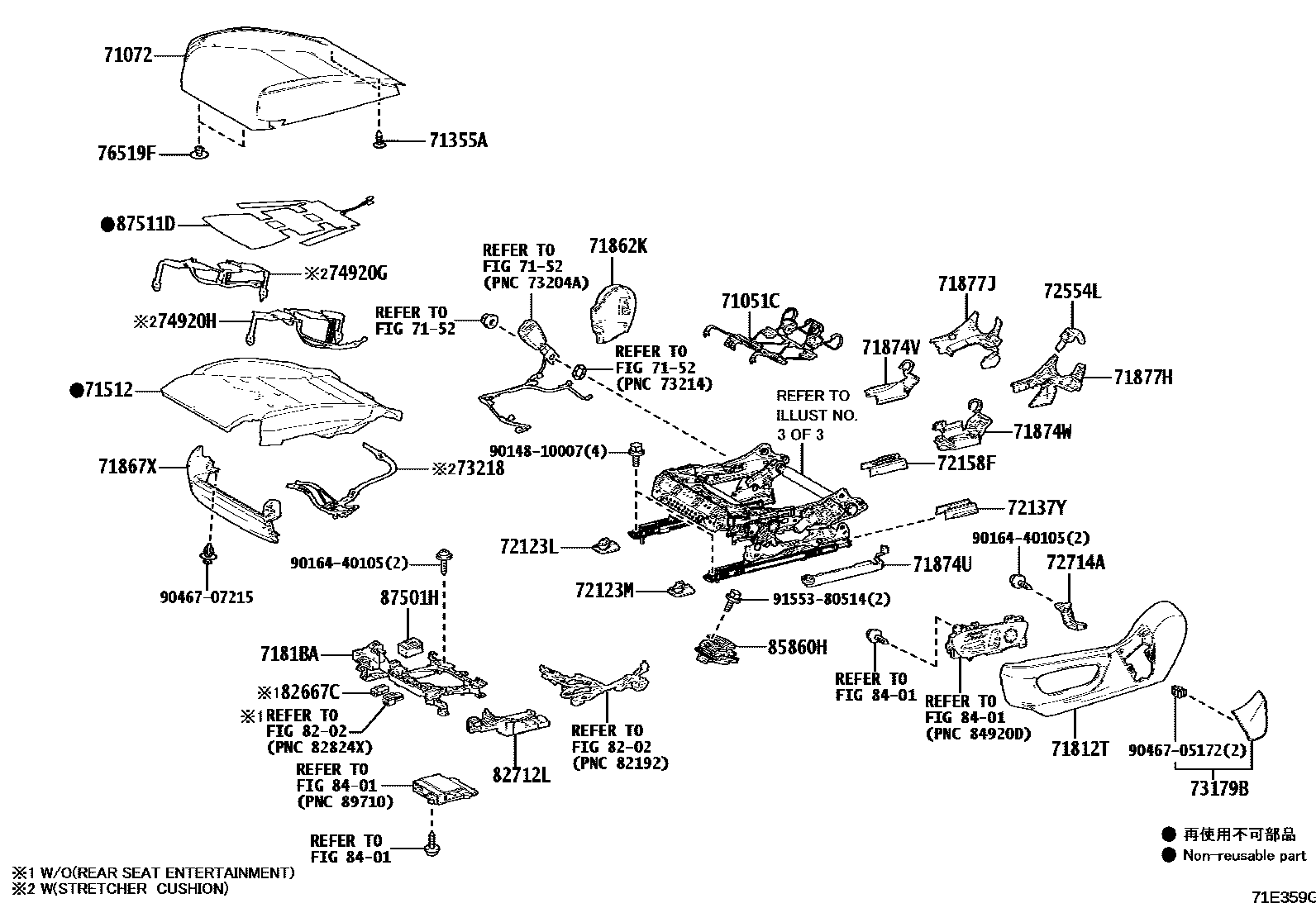

Parts diagram
71051CSPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-47090i202112-202411
71072COVER SUB-ASSY, FRONT SEAT CUSHION, LH
main71072-60Q90-C1i202411
BLACK,TRIM2#
main71072-60Q90-D0i202112-202411
CRIMSON,TRIM3#
main71072-60Q90-E0i202411
HAZEL,TRIM4#
main71072-60R00-A0i202411
WHITE,TRIM0#
main71072-60R00-C1i202411
BLACK,TRIM2#
main71072-60R00-D0i202411
CRIMSON,TRIM3#
main71072-60R00-E0i202112-202411
HAZEL,TRIM4#
main71072-60R10-A0i202211-202411
INDIA SPEC&F-SPORT&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,WHITE,TRIM0#; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),WHITE,TRIM0#; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER,WHITE,TRIM0#; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),WHITE,TRIM0#; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,WHITE,TRIM0#; INDIA SPEC&SEAT COVER MATERIAL-LEATHER,WHITE,TRIM0#
main71072-60R10-C2supersedes 71072-60Q90-C1i202112-202411
F-SPORT&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM2#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM2#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71072-60R10-D0i202112-202411
F-SPORT&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,RED,TRIM31; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),RED,TRIM31; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER,RED,TRIM31; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),RED,TRIM31; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,RED,TRIM31; SEAT COVER MATERIAL-LEATHER,RED,TRIM31
main71072-60R10-D1i202112-202411
F-SPORT&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,CRIMSON,TRIM30; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),CRIMSON,TRIM30; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER,CRIMSON,TRIM30; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),CRIMSON,TRIM30; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,CRIMSON,TRIM30; SEAT COVER MATERIAL-LEATHER,CRIMSON,TRIM30
main71072-60R10-E1i202211-202411
INDIA SPEC&F-SPORT&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,HAZEL,TRIM4#; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),HAZEL,TRIM4#; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER,HAZEL,TRIM4#; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),HAZEL,TRIM4#; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,HAZEL,TRIM4#; INDIA SPEC&SEAT COVER MATERIAL-LEATHER,HAZEL,TRIM4#
main71072-60R11-A0supersedes 71072-60Q90-A0i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,WHITE,TRIM0#; INDIA SPEC&F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,WHITE,TRIM0#; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),WHITE,TRIM0#; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),WHITE,TRIM0#; INDIA SPEC&SEAT COVER MATERIAL-LEATHER,WHITE,TRIM0#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),WHITE,TRIM0#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),WHITE,TRIM0#; SEAT COVER MATERIAL-LEATHER,WHITE,TRIM0#
main71072-60R11-C2i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM20,21; INDIA SPEC&F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM20,21; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM20,21; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM20,21; INDIA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM20,21; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM20,21; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM20,21; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM20,21
main71072-60R11-C3i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM23; INDIA SPEC&F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM23; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM23; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM23; INDIA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM23; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM23; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM23; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM23
main71072-60R11-D0i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,RED,TRIM31; INDIA SPEC&F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,RED,TRIM31; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),RED,TRIM31; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),RED,TRIM31; INDIA SPEC&SEAT COVER MATERIAL-LEATHER,RED,TRIM31; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),RED,TRIM31; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),RED,TRIM31; SEAT COVER MATERIAL-LEATHER,RED,TRIM31
main71072-60R11-D1i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,CRIMSON,TRIM30; INDIA SPEC&F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,CRIMSON,TRIM30; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),CRIMSON,TRIM30; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),CRIMSON,TRIM30; INDIA SPEC&SEAT COVER MATERIAL-LEATHER,CRIMSON,TRIM30; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),CRIMSON,TRIM30; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),CRIMSON,TRIM30; SEAT COVER MATERIAL-LEATHER,CRIMSON,TRIM30
main71072-60R11-E1i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,HAZEL,TRIM40; INDIA SPEC&F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,HAZEL,TRIM40; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),HAZEL,TRIM40; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),HAZEL,TRIM40; INDIA SPEC&SEAT COVER MATERIAL-LEATHER,HAZEL,TRIM40; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),HAZEL,TRIM40; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),HAZEL,TRIM40; SEAT COVER MATERIAL-LEATHER,HAZEL,TRIM40
main71072-60R11-E2i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,KHAKI,TRIM42; INDIA SPEC&F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER,KHAKI,TRIM42; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),KHAKI,TRIM42; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),KHAKI,TRIM42; INDIA SPEC&SEAT COVER MATERIAL-LEATHER,KHAKI,TRIM42; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),KHAKI,TRIM42; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE),KHAKI,TRIM42; SEAT COVER MATERIAL-LEATHER,KHAKI,TRIM42
main71072-60R20-A0i202112-202411
F-SPORT&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),WHITE,TRIM0#; F-SPORT&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),WHITE,TRIM0#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),WHITE,TRIM0#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),WHITE,TRIM0#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER &PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),WHITE,TRIM0#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER &PASSENGER & REAR),WHITE,TRIM0#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),WHITE,TRIM0#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),WHITE,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),WHITE,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),WHITE,TRIM0#; SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REARAUDIO-WITH(DUAL *RSE),WHITE,TRIM0#; SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),WHITE,TRIM0#
main71072-60R20-C2i202112-202411
F-SPORT&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2#; F-SPORT&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM2#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER &PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM2#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER &PASSENGER & REAR),BLACK,TRIM2#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM2#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REARAUDIO-WITH(DUAL *RSE),BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),BLACK,TRIM2#
main71072-60R20-D0i202112-202411
F-SPORT&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RED,TRIM31; F-SPORT&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RED,TRIM31; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),RED,TRIM31; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RED,TRIM31; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER &PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),RED,TRIM31; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER &PASSENGER & REAR),RED,TRIM31; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),RED,TRIM31; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RED,TRIM31; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),RED,TRIM31; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RED,TRIM31; SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REARAUDIO-WITH(DUAL *RSE),RED,TRIM31; SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),RED,TRIM31
main71072-60R20-D1i202112-202411
F-SPORT&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),CRIMSON,TRIM30; F-SPORT&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),CRIMSON,TRIM30; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),CRIMSON,TRIM30; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),CRIMSON,TRIM30; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER &PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),CRIMSON,TRIM30; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER &PASSENGER & REAR),CRIMSON,TRIM30; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),CRIMSON,TRIM30; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),CRIMSON,TRIM30; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),CRIMSON,TRIM30; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),CRIMSON,TRIM30; SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REARAUDIO-WITH(DUAL *RSE),CRIMSON,TRIM30; SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),CRIMSON,TRIM30
main71072-60R20-E1i202112-202411
F-SPORT&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),HAZEL,TRIM4#; F-SPORT&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),HAZEL,TRIM4#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),HAZEL,TRIM4#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),HAZEL,TRIM4#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER &PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),HAZEL,TRIM4#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER &PASSENGER & REAR),HAZEL,TRIM4#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),HAZEL,TRIM4#; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),HAZEL,TRIM4#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE),HAZEL,TRIM4#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),HAZEL,TRIM4#; SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REARAUDIO-WITH(DUAL *RSE),HAZEL,TRIM4#; SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR),HAZEL,TRIM4#
main71072-60R21-A0i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),WHITE,TRIM0#; F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),WHITE,TRIM0#; LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),WHITE,TRIM0#; OVER TRAIL PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER& REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),WHITE,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),WHITE,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),WHITE,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),WHITE,TRIM0#; SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),WHITE,TRIM0#
main71072-60R21-C2i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM20,21; F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM20,21; LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM20; OVER TRAIL PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER& REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM20,21; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM20; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM20,21; SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM20,21; SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM20,21
main71072-60R21-C3i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM23; F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM23; LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM23; OVER TRAIL PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER& REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM23; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM23; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM23; SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),BLACK,TRIM23; SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM23
main71072-60R21-D0i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),RED,TRIM31; F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),RED,TRIM31; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),RED,TRIM31; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),RED,TRIM31; SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),RED,TRIM31; SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),RED,TRIM31
main71072-60R21-D1i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),CRIMSON,TRIM30; F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),CRIMSON,TRIM30; LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),CRIMSON,TRIM3#; OVER TRAIL PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER& REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),CRIMSON,TRIM3#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),CRIMSON,TRIM30; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),CRIMSON,TRIM3#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),CRIMSON,TRIM30; SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),CRIMSON,TRIM30; SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),CRIMSON,TRIM30
main71072-60R21-E1i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),HAZEL,TRIM40; F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),HAZEL,TRIM40; LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),HAZEL,TRIM40; OVER TRAIL PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER& REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),HAZEL,TRIM40; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),HAZEL,TRIM40; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),HAZEL,TRIM40; SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),HAZEL,TRIM40; SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),HAZEL,TRIM40
main71072-60R21-E2i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),KHAKI,TRIM42; F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),KHAKI,TRIM42; LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),KHAKI,TRIM42; OVER TRAIL PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER& REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),KHAKI,TRIM42; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),KHAKI,TRIM42; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),KHAKI,TRIM42; SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE),KHAKI,TRIM42; SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT),KHAKI,TRIM42
main71072-60R30-C3i202112-202411
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(EXECUTIVE),BLACK,TRIM2#; "EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&VENTILATION SEAT-WITH(DRIVER & PASSENGER& REAR)&REAR AUDIO-WITH(EXECUTIVE),BLACK,TRIM2#
main71072-60R30-E2i202112-202411
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(EXECUTIVE),SUNFLARE BROWN,TRIM4#; "EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&VENTILATION SEAT-WITH(DRIVER & PASSENGER& REAR)&REAR AUDIO-WITH(EXECUTIVE),SUNFLARE BROWN,TRIM4#
main71072-60R31-C3i202411
"EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE),BLACK,TRIM2#; "EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE),BLACK,TRIM2#; "EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER& REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE),BLACK,TRIM2#
main71072-60R31-E2i202411
"EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE),SUNFLARE BROWN,TRIM4#; "EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE),SUNFLARE BROWN,TRIM4#; "EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER& REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE),SUNFLARE BROWN,TRIM4#
main71072-60S30-C1i202112-202411
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITHOUT(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEATCOVER MATERIAL-LEATHER&REAR AUDIO-WITH(EXECUTIVE),BLACK,TRIM2#
main71072-60S30-E0i202411
"EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITHOUT(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(EXECUTIVE),SUNFLARE BROWN,TRIM4#
71355ACLIP
main90467-05045-22×2i202411
BLACK
71512PAD, FRONT SEAT CUSHION, LH
main71502-60670supersedes 71502-60660i202112-202411
REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER
main71502-60700i202211-202411
INDIA SPEC&F-SPORT&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER
main71502-60720i202411
"EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITHOUT(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(EXECUTIVE)
main71502-60890i202411
INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); INDIA SPEC&SEAT COVER MATERIAL-LEATHER; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER
main71502-60A10i202411
"EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE); "EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE); "EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER& REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE); LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE); OVER TRAIL PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER& REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE)
main71502-60A40i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER; INDIA SPEC&F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER
main71512-60550supersedes 71512-60560i202411
SEAT VENTILATION-WITHOUT
main71512-60560i202112-202411
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(EXECUTIVE); "EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&VENTILATION SEAT-WITH(DRIVER & PASSENGER& REAR)&REAR AUDIO-WITH(EXECUTIVE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER &PASSENGER & REAR); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER &PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR); SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR); SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REARAUDIO-WITH(DUAL *RSE); VENTILATION SEAT-WITH(DRIVER & PASSENGER)
main71512-60620i202112-202411
F-SPORT&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR); F-SPORT&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)
main71512-60680i202411
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)
7152SEAT BELT
→ Go to FIG 71-52
71812TSHIELD, FRONT SEAT CUSHION, LH
main71812-60410-C0i202411
BLACK,TRIM0#,2#,3#,4#
main71812-60430-C0i202411
"EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITHOUT(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(EXECUTIVE),BLACK,TRIM2#,4#
7181BAHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
main7181B-42010i202112-202411
main7181B-60010i202112-202411
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITHOUT(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEATCOVER MATERIAL-LEATHER&REAR AUDIO-WITH(EXECUTIVE)
71862KSHIELD, FRONT SEAT CUSHION, INNER LH
main71862-47090-C1i202112-202411
BLACK,TRIM0#,2#,3#,4#
71867XSHIELD, FRONT SEAT CUSHION, FRONT LH
main71868-60080-C0i202411
BLACK,TRIM0#,2#,3#,4#
main71868-78020-C0i202112-202411
BLACK,TRIM0#,2#,3#,4#
71874USHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-60130i202411
71874VSHIELD, FRONT SEAT CUSHION, LOWER LH, OUTER
main71874-42050i202411
main71874-60190i202112-202411
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITHOUT(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEATCOVER MATERIAL-LEATHER&REAR AUDIO-WITH(EXECUTIVE)
71874WSHIELD, FRONT SEAT CUSHION, LOWER LH, INNER
main71874-60150i202112-202411
71877HCOVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)
main71876-60330-C0i202112-202411
BLACK,TRIM0#,2#,3#,4#
main71876-60350-C0i202112-202411
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITHOUT(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEATCOVER MATERIAL-LEATHER&REAR AUDIO-WITH(EXECUTIVE),BLACK,TRIM2#,4#
71877JCOVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT)
main71876-42090-C0i202112-202411
BLACK,TRIM0#,2#,3#,4#
main71876-60340-C0i202112-202411
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITHOUT(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEATCOVER MATERIAL-LEATHER&REAR AUDIO-WITH(EXECUTIVE),BLACK,TRIM2#,4#
72123LCOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72123-10100i202112-202411
72123MCOVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72123-10100i202411
72137YCOVER, SEAT TRACK BRACKET, OUTER REAR LH
main72137-60210-C0i202411
BLACK,TRIM0#,2#,3#,4#
72158FCOVER, SEAT TRACK BRACKET, INNER REAR LH
main72157-60230-C0i202112-202411
BLACK,TRIM0#,2#,3#,4#
72554LPROTECTOR, RECLINING COVER, LH
main72554-60020i202112-202411
72714ABRACKET, SEAT ADJUSTER SHIELD CLAMP, LH
main72714-78010i202112-202411
73179BCAP, SEAT BELT ANCHOR COVER, LH
main73179-60010-C0i202411
BLACK,TRIM0#,2#,3#,4#
73218TUBE, ADJUSTER, LH
main73218-60020i202411
"EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE); "EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE); "EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER& REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE); F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER; F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); INDIA SPEC&F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); INDIA SPEC&SEAT COVER MATERIAL-LEATHER; LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE); OVER TRAIL PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER& REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE)
74920GCUSHION ASSY, MAIN STRETCHER, LH NO.1(FOR SEAT CUSHION)
main74930-60100i202411
"EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE); "EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE); "EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER& REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE); F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER; F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); INDIA SPEC&F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); INDIA SPEC&SEAT COVER MATERIAL-LEATHER; LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE); OVER TRAIL PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER& REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE)
74920HCUSHION ASSY, MAIN STRETCHER, LH NO.2(FOR SEAT CUSHION)
main74930-60120i202411
"EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE); "EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE); "EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER& REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE); F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER; F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); INDIA SPEC&F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); INDIA SPEC&SEAT COVER MATERIAL-LEATHER; LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE); OVER TRAIL PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER& REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE)
76519FCLIP, FRONT SEAT CUSHION COVER
main76519-42010×2i202112-202411
8202WIRING & CLAMP
→ Go to FIG 82-02
82667CHOLDER, CONNECTOR
main82666-28B50i202411
82712LSUPPORT, WIRING HARNESS
main82712-60580i202112-202411
RH SEAT
main82712-60590i202112-202411
LH SEAT
main82712-60D30i202411
"EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE),RH SEAT; "EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE),RH SEAT; "EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER& REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE),RH SEAT
main82712-60D40i202112-202411
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITHOUT(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEATCOVER MATERIAL-LEATHER&REAR AUDIO-WITH(EXECUTIVE),LH SEAT
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
85860HBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH
main85801-60140i202112-202411
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(EXECUTIVE); "EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&VENTILATION SEAT-WITH(DRIVER & PASSENGER& REAR)&REAR AUDIO-WITH(EXECUTIVE); F-SPORT&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER& PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR); F-SPORT&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER &PASSENGER & REAR); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER &PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR); SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR); SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REARAUDIO-WITH(DUAL *RSE); VENTILATION SEAT-WITH(DRIVER & PASSENGER)
main85802-42020i202411
"EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITHOUT(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(EXECUTIVE); F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER; INDIA SPEC&F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); INDIA SPEC&SEAT COVER MATERIAL-LEATHER; REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER
87501HCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-33010i202112-202411
87511DHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-60740i202112-202411
main87510-60760i202411
"EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITHOUT(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(EXECUTIVE)
main87510-60820i202411
"EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE); "EXECUTIVE"&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE & REAR CONSOLE BOX)&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE); "EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)&SEAT VENTILATION-WITH(DRIVER & PASSENGER& REAR SEAT)&REAR AUDIO-WITH(EXECUTIVE); F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER; F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); INDIA SPEC&F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER; INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTOARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); INDIA SPEC&REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); INDIA SPEC&SEAT COVER MATERIAL-LEATHER; LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE); OVER TRAIL PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER& REAR NO.1)&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT-WITHOUT&SEAT COVER MATERIAL-LEATHER&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&SEATVENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE); SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT); SEAT COVER MATERIAL-LEATHER&SEAT VENTILATION-WITH(DRIVER & PASSENGER & REAR SEAT)&REAR AUDIO-WITH(DUAL *RSE)
9014810007
main90148-10007
9016440105
main90164-40105
9046705172
main90467-05172
9046707215
main90467-07215
9155380514
main91553-80514

37 parts on this diagram · 14 diagrams in section
