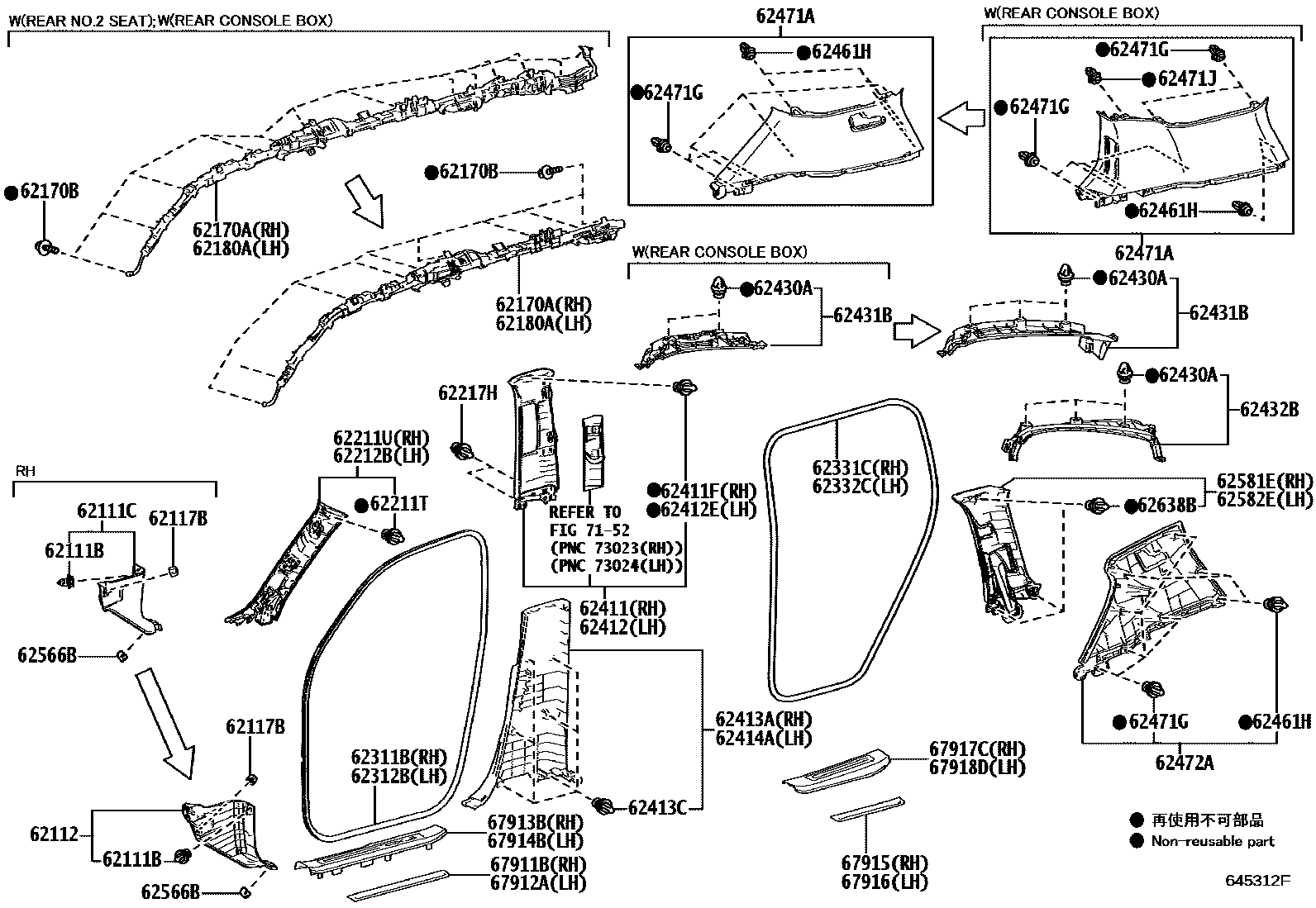

INSIDE TRIM BOARD
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
F-SPORT&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)&REAR NO.2 SEAT-WITHOUT
REAR NO.2 SEAT-WITHOUT
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)&REAR NO.2 SEAT-WITHOUT
F-SPORT&REAR NO.2 SEAT-WITHOUT
REAR NO.2 SEAT-W(POWER FOLD)
REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE
"EXECUTIVE"&REAR NO.2 SEAT-WITHOUT
"EXECUTIVE"
62170BBOLT, W/WASHER
REAR NO.2 SEAT-W(POWER FOLD)
"EXECUTIVE"&REAR NO.2 SEAT-WITHOUT
"EXECUTIVE"
REAR NO.2 SEAT-WITHOUT
F-SPORT&REAR NO.2 SEAT-WITHOUT
REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)&REAR NO.2 SEAT-WITHOUT
F-SPORT&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)&REAR NO.2 SEAT-WITHOUT
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
F-SPORT&REAR NO.2 SEAT-WITHOUT
F-SPORT&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)&REAR NO.2 SEAT-WITHOUT
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)&REAR NO.2 SEAT-WITHOUT
REAR NO.2 SEAT-WITHOUT
"EXECUTIVE"&REAR NO.2 SEAT-WITHOUT
REAR NO.2 SEAT-W(POWER FOLD)
"EXECUTIVE"
REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE
62211TCLIP(FOR FRONT PILLAR GARNISH)
62211UGARNISH ASSY, FRONT PILLAR, RH
BLACK,TRIM0#,2#,3#,4#
62212BGARNISH ASSY, FRONT PILLAR, LH
BLACK,TRIM0#,2#,3#,4#
62217HCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411GARNISH, CENTER PILLAR, RH
BLACK,TRIM0#,2#,3#,4#
62411FCLIP, CENTER PILLAR GARNISH, RH
62412GARNISH, CENTER PILLAR, LH
BLACK,TRIM0#,2#,3#,4#
62412ECLIP, CENTER PILLAR GARNISH, LH
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM0#,2#,3#,4#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM0#,2#,3#,4#
62430ACLIP, ROOF SIDE RAIL GARNISH
"EXECUTIVE"
62431BGARNISH, ROOF SIDE RAIL, NO.1 RH
BLACK,TRIM0#,2#,3#,4#
62432BGARNISH, ROOF SIDE RAIL, NO.1 LH
BLACK,TRIM0#,2#,3#,4#
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
"EXECUTIVE"&REAR NO.2 SEAT-WITHOUT
"EXECUTIVE"
62471AGARNISH, ROOF SIDE, INNER RH
REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
F-SPORT&REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#,3#
REAR NO.2 SEAT-W(POWER FOLD),BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE,BLACK,TRIM0#,2#,3#,4#
62471GCLIP, ROOF SIDE INNER GARNISH
"EXECUTIVE"
"EXECUTIVE"&REAR NO.2 SEAT-WITHOUT
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
F-SPORT&REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#,3#
REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
"EXECUTIVE"&REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#,4#
REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE,BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
REAR NO.2 SEAT-W(POWER FOLD),BLACK,TRIM0#,2#,3#,4#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62581EGARNISH, QUARTER PILLAR, RH
BLACK,TRIM0#,2#,3#,4#
62582EGARNISH, QUARTER PILLAR, LH
BLACK,TRIM0#,2#,3#,4#
62638BCLIP
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
BLACK,TRIM0#,2#,3#,4#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
BLACK,TRIM0#,2#,3#,4#
67913BPLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM0#,2#,3#,4#
67914BPLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM0#,2#,3#,4#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
BLACK,TRIM0#,2#,3#,4#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
BLACK,TRIM0#,2#,3#,4#
67917CPLATE, REAR DOOR SCUFF, RH
BLACK,TRIM0#,2#,3#,4#
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE),BLACK,TRIM2#,3#
67918DPLATE, REAR DOOR SCUFF, LH
BLACK,TRIM0#,2#,3#,4#
F-SPORT&ILLUMINATED ENTRY SYSTEM-WITH(SCUFF PLATE),BLACK,TRIM2#,3#
7152
43 parts on this diagram · 12 diagrams in section
