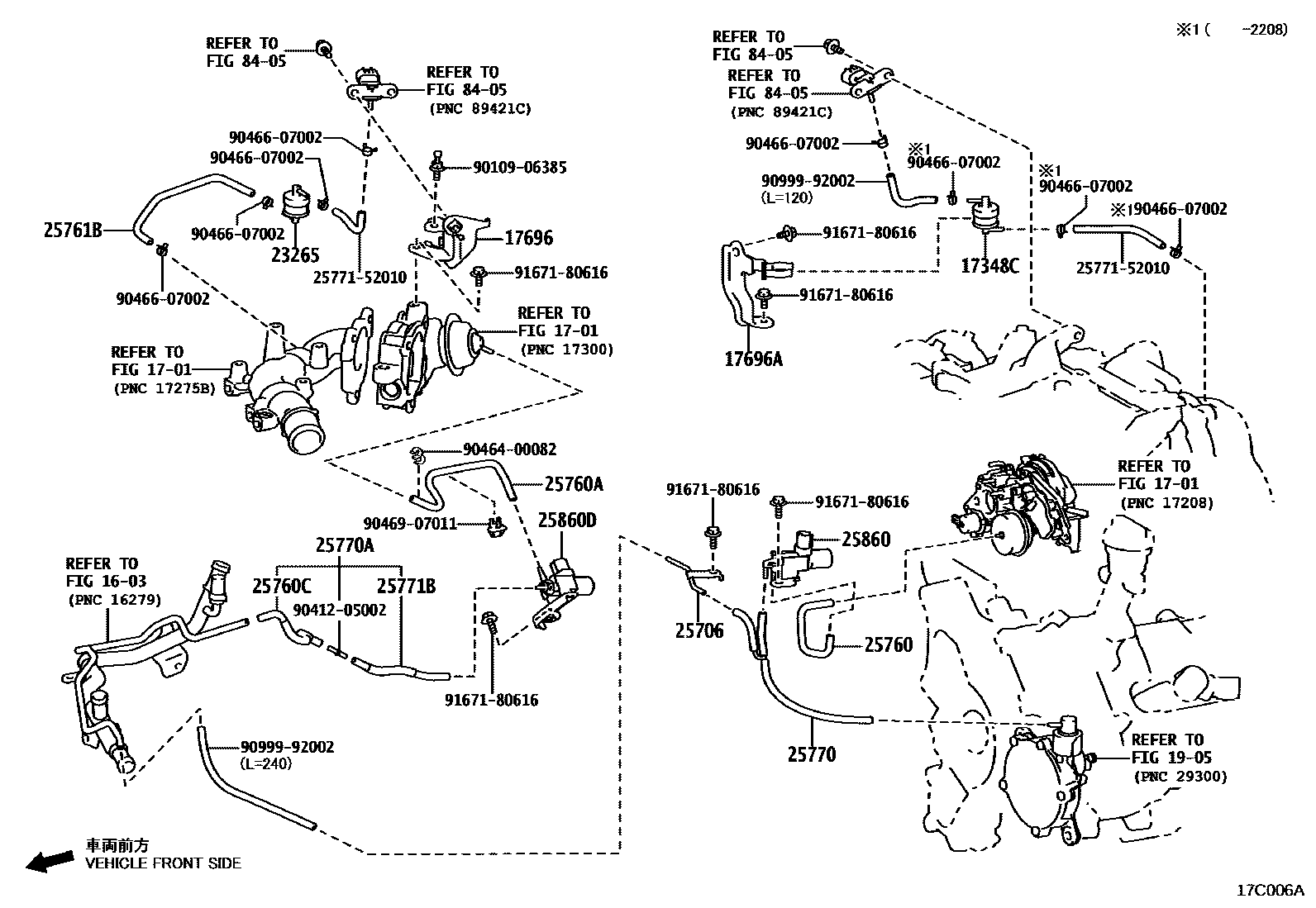

VACUUM PIPING

0001 1 0002 1 0003 1 0005 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

17348CFILTER, GAS

main90917-11046iF33AFTV..FJA310202411

17696BRACKET, GAS FILTER

main17696-52020iF33AFTV..FJA310202411

17696ABRACKET, GAS FILTER, NO.2

main17696-52010iF33AFTV..FJA310202411

1905VACUUM PUMP

→ Go to FIG 19-05

23265FILTER, GAS, NO.1

main90917-11046iF33AFTV..FJA310202411

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-52010iF33AFTV..FJA310202112-202310

main25706-70030iV35AFTS..VJH310..CHI202411

25760HOSE ASSY, VACUUM TRANSMITTING

main25761-52010iF33AFTV..FJA310202112-202411

25760AHOSE ASSY, VACUUM TRANSMITTING

main25761-52020iF33AFTV..FJA310202411

25760CHOSE ASSY, VACUUM TRANSMITTING, NO.3

main25761-52030iF33AFTV..FJA310202411

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-52040iF33AFTV..FJA310202411

25770HOSE ASSY, VACUUM TRANSMITTING, NO.2

main25770-52010iF33AFTV..FJA310202112-202310

main25770-62010iF33AFTV..FJA310202411

main25770-70030iV35AFTS..VJH310..CHI202411

25770AHOSE ASSY, VACUUM TRANSMITTING, NO.2

main25770-52020iF33AFTV..FJA310202411

25771BHOSE, VACCUM TRANSMITTING, NO.2

main25761-52050iF33AFTV..FJA310202411

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-52030iF33AFTV..FJA310202411

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main25860-52020iF33AFTV..FJA310202411

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

2577152010HOSE, VACCUM TRANSMITTING, NO.2

main25771-52010

9010906385

main90109-06385

9041205002

main90412-05002

9046400082

main90464-00082

9046607002

main90466-07002

9046907011

main90469-07011

9099992002

main90999-92002

9167180616

main91671-80616

26 parts on this diagram · 4 diagrams in section
