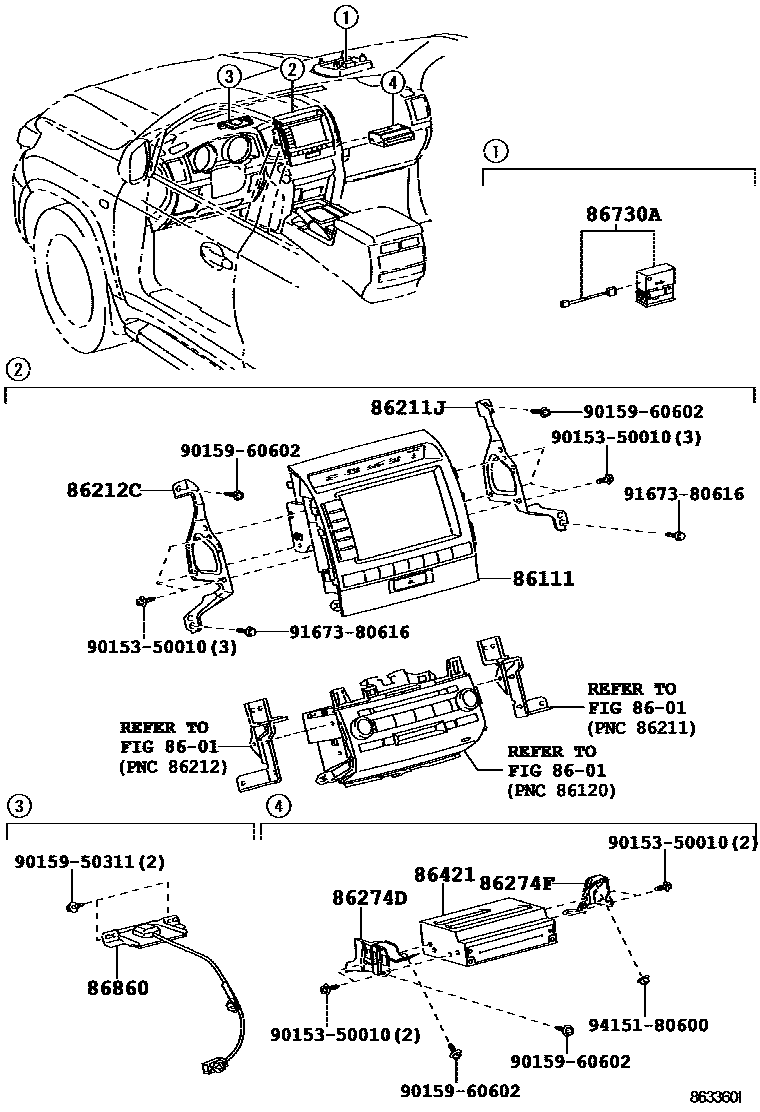

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1NAVIGATION ANTENNA 0008 1

8601

86111MULTI-DISPLAY

main86111-60280

main86111-60320

main86111-60330

main86111-60340

main86111-60470

main86111-60480

main86111-60490

86211JBRACKET, RADIO RECEIVER, NO.1

86212CBRACKET, RADIO RECEIVER, NO.2

86274DBRACKET, DISC PLAYER

86274FBRACKET, DISC PLAYER, NO.2

86421BOARD, NAVIGATION MODULE

main86421-60010

86730AMICROPHONE ASSY, TELEPHONE

main86730-48040iURJ202..05S;VDJ200..LHD201201-201508

AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM JBL 14SPEAKER

main86730-48040iURJ202..05S;VDJ200..LHD201201-201508

AUDIO(FOR OVERSEAS MARKET)-CD-CHANGER + AM/FM + *BT 9SPEAKER

main86730-48040iVDJ200..LHD201201-201508

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER

main86730-48040iURJ202..VXR;URJ202..05S201908-202104

main86730-53030iVDJ200..RHD201608-202103

86860ANTENNA ASSY, NAVIGATION

main86860-60330iVDJ200..RHD201608-202103

9015350010

main90153-50010

9015950311

main90159-50311

9015960602

main90159-60602

9167380616

main91673-80616

9415180600

main94151-80600

14 parts on this diagram · 8 diagrams in section
