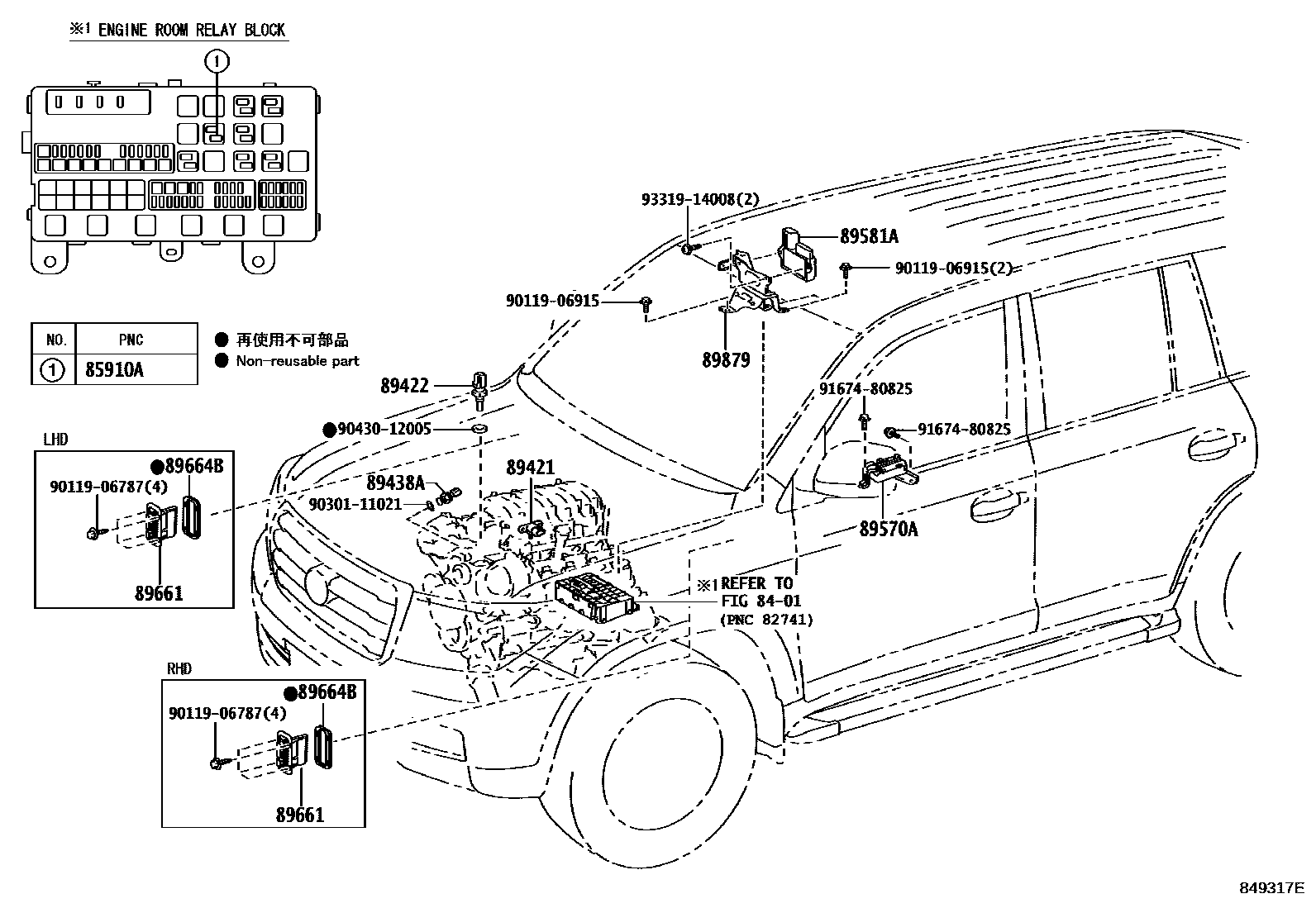

ELECTRONIC FUEL INJECTION SYSTEM

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027i200709-201201

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010i201508-202104

main89421-71010i200709-201201

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i200709-201201

89438ASWITCH, POWER STEERING OIL PRESSURE

main89448-34010i200709-200802

main89448-34020i200803-201201

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60160i200709-201201

89581ADRIVER, AIR INJECTION CONTROL

main89581-34041i200709-201201

main89581-60010i201508-202103

89661COMPUTER, ENGINE CONTROL

main89661-60J10i200709-201201

main89661-60Z70i201908-202103

main89661-60J20i200709-201201

SOUTH AFRICA SPEC

main89661-60J40i200712-201201

AIR CLEANER-WITH(PRE CLEANER)

main89661-60Q50supersedes 89661-60Q90i201201-201508

HONG KONG SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5,WITH(OBD)

main89661-60Q70supersedes 89661-60Q50i201201-201508

AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&AIR CLEANER-WITH(PRE CLEANER)&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD); UKRAINE SPEC&AIR CLEANER-WITH(PRE CLEANER)&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD)

main89661-60Q90supersedes 89661-60Q50i201201-201508

NEW CALEDONIA SPEC&AIR CLEANER-WITH(PRE CLEANER)&EXHAUST EMISSION CONTROL-EUROPE STEP3,WITHOUT(OBD); SOUTH AMERICA SPEC&AIR CLEANER-WITH(PRE CLEANER)&EXHAUST EMISSION CONTROL-EUROPE STEP3,WITHOUT(OBD)

main89661-60V30supersedes 89661-60Q50i201308-201508

UKRAINE SPEC&AIR CLEANER-WITH(PRE CLEANER)&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD)&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW

main89661-60W90i201308-201508

AUSTRIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW; ESTONIA OR LATVIA OR LITHUANIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW; NORWAY,DENMARK,SWEDEN,FINLAND SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW; POLAND OR HUNGARY SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW; RUMANIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW; SWITZERLAND SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC) & EHW

main89661-60X60i202008-202104

VIETNAM SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4, WITH(OBD)&WINDSHIELD GLASS-WITH(RAIN SENSOR)

main89661-60Z20i202008-202104

ARMENIA SPEC&&WINDSHIELD GLASS-WITH(RAIN SENSOR); AZERBAIJAN, GEORGIA, ARMENIA SPEC&WINDSHIELD GLASS-WITH(RAIN SENSOR)

main89661-60Z30supersedes 89661-60Z50i201508-201608

AZERBAIJAN, GEORGIA, ARMENIA SPEC&AIR CLEANER-WITH(PRE CLEANER)&EXHAUST EMISSION CONTROL-EUROPE STEP4, WITH(OBD)

main89661-60Z40supersedes 89661-60Q50i201508-201606

NEW CALEDONIA SPEC&AIR CLEANER-WITH(PRE CLEANER)&EXHAUST EMISSION CONTROL-EUROPE STEP3, WITHOUT(OBD); SOUTH AMERICA SPEC&AIR CLEANER-WITH(PRE CLEANER)&EXHAUST EMISSION CONTROL-EUROPE STEP3, WITHOUT(OBD)

main89661-60Z41i201607-201608

NEW CALEDONIA SPEC&AIR CLEANER-WITH(PRE CLEANER)&EXHAUST EMISSION CONTROL-EUROPE STEP3, WITHOUT(OBD); SOUTH AMERICA SPEC&AIR CLEANER-WITH(PRE CLEANER)&EXHAUST EMISSION CONTROL-EUROPE STEP3, WITHOUT(OBD)

main89661-60Z60supersedes 89661-60Z50i201508-201608

AUSTRIA SPEC&WINDSHIELD GLASS-ELECTRICAL HEATED LAMINATED(ACOUSTIC); ESTONIA OR LATVIA OR LITHUANIA SPEC&WINDSHIELD GLASS-ELECTRICAL HEATED LAMINATED(ACOUSTIC); NORWAY, DENMARK, SWEDEN, FINLAND SPEC&WINDSHIELD GLASS-ELECTRICAL HEATED LAMINATED(ACOUSTIC); POLAND OR HUNGARY SPEC&WINDSHIELD GLASS-ELECTRICAL HEATED LAMINATED(ACOUSTIC); RUMANIA SPEC&WINDSHIELD GLASS-ELECTRICAL HEATED LAMINATED(ACOUSTIC); SWITZERLAND SPEC&WINDSHIELD GLASS-ELECTRICAL HEATED LAMINATED(ACOUSTIC)

89664BSEAL, ENGINE CONTROL COMPUTER

main89664-34010i200709-201201

89879BRACKET, INJECTOR DRIVER

main89589-34020i200709-201201

9011906787

main90119-06787

9011906915

main90119-06915

9030111021

main90301-11021

9043012005

main90430-12005

9167480825

main91674-80825

9331914008

main93319-14008

16 parts on this diagram · 3 diagrams in section
