KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(OBD)&FUEL TANK-WITH(SUB TANK); RUSSIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(OBD)&FUEL TANK-WITH(SUB TANK)

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-60130i201508-202103

main77035-60140i200709-201201

77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)

main90469-06005i201201-201508

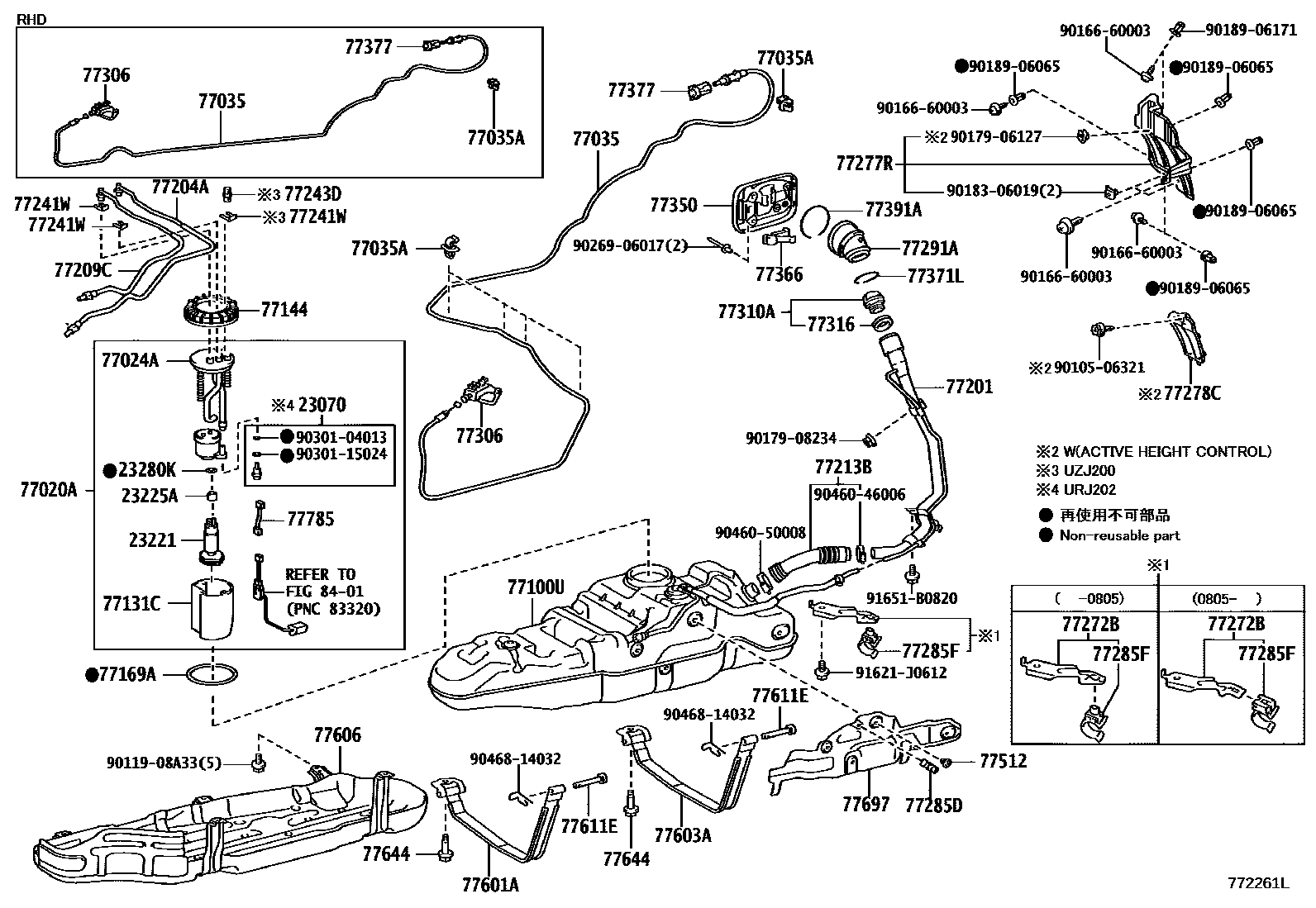

77100UTANK SUB-ASSY, FUEL

main77001-60800i200709-200805

main77001-60801i201508-202103

main77001-60810i200709-200805

main77001-60811i200805-201201

main77001-60821i201508-201608

KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(OBD)&FUEL TANK-WITH(SUB TANK); RUSSIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(OBD)&FUEL TANK-WITH(SUB TANK); SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD)&FUEL TANK-WITH(SUB TANK)

main77001-60822i201611-201708

KAZAKHSTAN SPEC; RUSSIA SPEC

77131CSUB-TANK, FUEL, NO.1

main77131-60120i200709-201201

main77131-60130i200709-201201

main77131-60170i201508-202103

main77131-60180i201508-202104

77144RETAINER, FUEL PUMP GAUGE

main77144-47020i201201-201508

77169AGASKET, FUEL SUCTION TUBE SET

main77169-30050i201508-202104

main77169-47030i201508-202103

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60A70i201201-201506

main77201-60A90i201201-201506

main77201-60C50i201507-201508

main77201-60C60i201507-201508

main77201-60E60i202010-202103

main77201-60B20i201308-201508

FUEL TANK-WITH(SUB TANK)

main77201-60B21i202006-202010

AZERBAIJAN, GEORGIA, ARMENIA SPEC&FUEL TANK-WITH(SUB TANK); KAZAKHSTAN SPEC&FUEL TANK-WITH(SUB TANK); RUSSIA SPEC&FUEL TANK-WITH(SUB TANK)

main77201-60B90i201608-201908

AZERBAIJAN, GEORGIA, ARMENIA SPEC&FUEL TANK-WITH(SUB TANK); KAZAKHSTAN SPEC&FUEL TANK-WITH(SUB TANK); RUSSIA SPEC&FUEL TANK-WITH(SUB TANK)

main77201-60E80supersedes 77201-60E40i202010-202104

FUEL TANK-WITH(SUB TANK)

main77201-60E90supersedes 77201-60E60i202010-202104

AZERBAIJAN, GEORGIA, ARMENIA SPEC&FUEL TANK-WITH(SUB TANK); KAZAKHSTAN SPEC&FUEL TANK-WITH(SUB TANK); RUSSIA SPEC&FUEL TANK-WITH(SUB TANK)

77204ATUBE, FUEL TANK RETURN

main77204-60070i200709-201201

main77204-60080supersedes 77204-60110i200709-201201

main77204-60110i201201-201508

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-60470i200709-201201

main77209-60480i201508-202104

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-60310i200709-201201

77241WCLIP, TUBE JOINT

main77241-33011×2i201508-202104

KAZAKHSTAN SPEC&FUEL TANK-WITH(SUB TANK),NO.2:REFER ILLUST.; NO.2:REFER ILLUST.; RUSSIA SPEC&FUEL TANK-WITH(SUB TANK),NO.2:REFER ILLUST.

main77241-60310i201508-202103

NO.1:REFER ILLUST.

main77241-60320i200709-200912

NO.2:REFER ILLUST.

77243DJOINT, FUEL TUBE, NO.1

main77243-60060i200709-201201

77272BSUPPORT, BREATHER TUBE, NO.1

main77205-60C00i200709-200805

main77205-60C01i201508-202103

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-60130i201201-201508

main77277-60140i201201-201508

INDIA SPEC&TIRE & DISC WHEEL-285/60R18,8J ALUMINUM; SUSPENSION-ACTIVE HEIGHT CONTROL; TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-60020i201201-201508

INDIA SPEC&TIRE & DISC WHEEL-285/60R18,8J ALUMINUM; SUSPENSION-ACTIVE HEIGHT CONTROL; TIRE & DISC WHEEL-285/50R20,8.5J ALUMINUM

77285BRACKET, FUEL TUBE

main77281-60400i200709-201201

77285DCLAMP, FUEL TUBE, NO.1

main77285-60840i200709-201201

main77285-60850i201201-201508

77285FCLAMP, FUEL TUBE, NO.1

main77197-60030i200709-200805

main77197-60031i201201-201508

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-60120i200709-201201

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-28060-C0i200709-201201

BLACK,TRIM1#; BLACK,TRIM1#,2#

main77306-28060-E0i200709-201201

DK. BROWN,TRIM4#

main77306-58020-A0i201201-201508

SHELL,TRIM0#

main77306-58020-A2i201508-201708

FLAXEN,TRIM0#

main77306-58020-C0i201708-202104

BLACK,TRIM1#,2#,42,46; BLACK,TRIM2#,42,46

main77306-58020-E0i201708-202104

NEUTRAL BEIGE,TRIM47

77310ACAP ASSY, FUEL TANK

main77300-12020i202010-202104

main77300-12030i202010-202104

main77300-52030i201201-201508

77316GASKET, FUEL TANK CAP

main77316-52040i201508-202104

77350LID ASSY, FUEL FILLER OPENING

main77350-60090i201201-201508

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-35040i201508-202103

77371LRING, FUEL TANK FILLER PIPE SHIELD

main77371-35010i200709-201201

main77371-60040i202102-202103

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-35010i201508-202102

77391ARING, FUEL INLET BOX

main77391-35020i201201-201508

main77391-60070i201508-202103

77512BRACKET, FUEL TANK, REAR

main77512-35140×4i200709-201201

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-60310i200709-201201

main77601-60390i201508-202104

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-60110i200709-201201

main77602-60140i201508-202103

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60170i201508-202104

77611EPIN, FUEL TANK BAND

main77653-35040×2i200709-201201

77644BOLT, FUEL TANK

main77644-35030×2i201508-202103

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-60010i200709-201201

77785HARNESS, FUEL PUMP

main77785-60010i200709-201201

main77785-60011i201804-202104

main77785-60020i201708-201803

AZERBAIJAN, GEORGIA, ARMENIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR)& WITHOUT(OBD)&FUEL TANK-WITH(SUB TANK); AZERBAIJAN, GEORGIA, ARMENIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4, WITH(EGR)& WITHOUT(OBD)&FUEL TANK-WITH(SUB TANK); KAZAKHSTAN SPEC&FUEL TANK-WITH(SUB TANK); RUSSIA SPEC&FUEL TANK-WITH(SUB TANK)

main77785-60021i201804-201908

KAZAKHSTAN SPEC&FUEL TANK-WITH(SUB TANK); RUSSIA SPEC&FUEL TANK-WITH(SUB TANK)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506321

main90105-06321

9011908A33

main90119-08A33

9016660003

main90166-60003

9017906127

main90179-06127
