BATTERY CARRIER

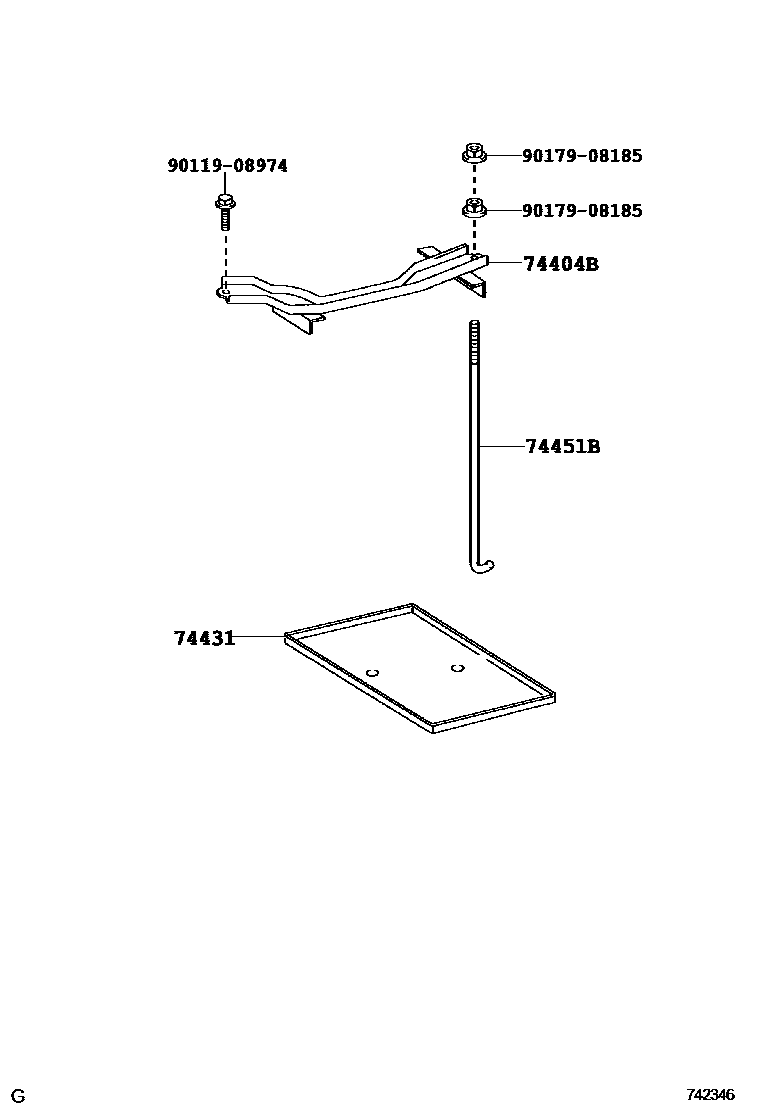

Parts diagram

74404BCLAMP SUB-ASSY, BATTERY

main74404-60150i200709-201201

74431TRAY, BATTERY

main74431-10060i200709-201201

74451BBOLT, BATTERY CLAMP

main74451-60080i200709-201201

9011908974

main90119-08974

9017908185

main90179-08185

5 parts on this diagram · 1 diagram in section
