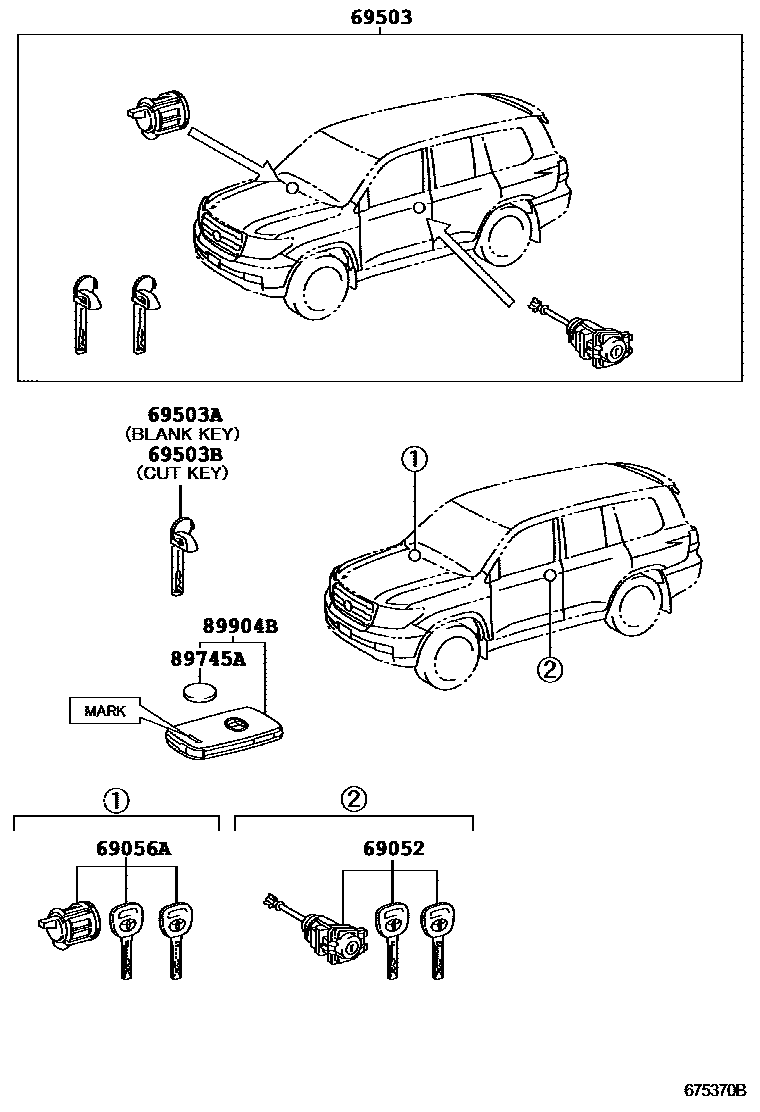

LOCK CYLINDER SET

0001 1 0002 1 0003 1 0004 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-60250iUZJ200,VDJ200..LHD200709-200806

sub69052-60251

main69052-60251iUZJ200,VDJ200..LHD200807-200811

sub69052-60252

main69052-60252iUZJ200,VDJ200..LHD200812-201508

main69052-60390iURJ202..VXR;URJ202..05S;VDJ200..LHD..08S201508-202104

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-30240iUZJ200,VDJ200200709-201508

main69056-50160iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

69503CYLINDER SET, LOCK

main69005-60G10iVDJ200..RHD201508-201708

sub69005-60G00

main69005-60G40iURJ202,VDJ200..LHD201508-201708

main69005-60K70iVDJ200..05S;URJ202..08S..VX201708-202104

main69005-60N10iVDJ200..RHD201708-202103

main69005-6C220iUZJ200,VDJ200..RHD200709-200806

sub69005-6C221

main69005-6C221iUZJ200,VDJ200..RHD200807-201508

sub69005-6C211

main69005-6C250iUZJ200,VDJ200..LHD200709-200806

sub69005-6C251

main69005-6C251iUZJ200,VDJ200..LHD200807-200811

sub69005-6C252

main69005-6C252iURJ202,VDJ200..LHD200812-201508

sub69005-6C242

69503AKEY, BLANK

main69515-30320iUZJ200,VDJ200200709-201508

MASTER KEY,W(*68)

main69515-33100iURJ202,VDJ200201508-201708

MASTER KEY,W(*68)

main69515-33120iVDJ200..08S;URJ202..VXR;URJ202..05S201708-202104

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-30310iUZJ200,VDJ200200709-201508

MASTER KEY,W(*68)

main69515-33090iURJ202,VDJ200201508-201708

MASTER KEY,W(*68)

main69515-33110iVDJ200..05S;URJ202..08S..VX201708-202104

MASTER KEY,W(*68)

89745ABATTERY, TRANSMITTER

main89745-45010iVDJ200..RHD201508-201708

CR2032

sub89745-50020

main89745-50020iVDJ200..RHD..VX201608-202104

CR2032

main89745-52030iURJ202,VDJ200200709-201508

CR1632

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-60210iUZJ200,VDJ200200709-200805

main89904-60430iUZJ200,VDJ200200805-201001

MARK = B53EA

sub89904-60431

main89904-60780iUZJ200,VDJ200201001-201105

MARK = B77EA

sub89904-48E90

main89904-60781iURJ202,VDJ200201106-201202

sub89904-60782

main89904-60782iURJ202,VDJ200201203-201508

main89904-60J90iURJ202,VDJ200..LHD201508-201708

sub89904-60J91

main89904-60K40iVDJ200..RHD201608-201708

main89904-60N10iURJ202,VDJ200201708-201908

sub89904-60N11

main89904-60X50iVDJ200..05S201908-202104

VIETNAM SPEC

main89904-60X50iURJ202..08S..VX201908-202104

NEW CALEDONIA SPEC

main89904-60Z10iVDJ200..05S201908-202104

RUSSIA SPEC

7 parts on this diagram · 4 diagrams in section
