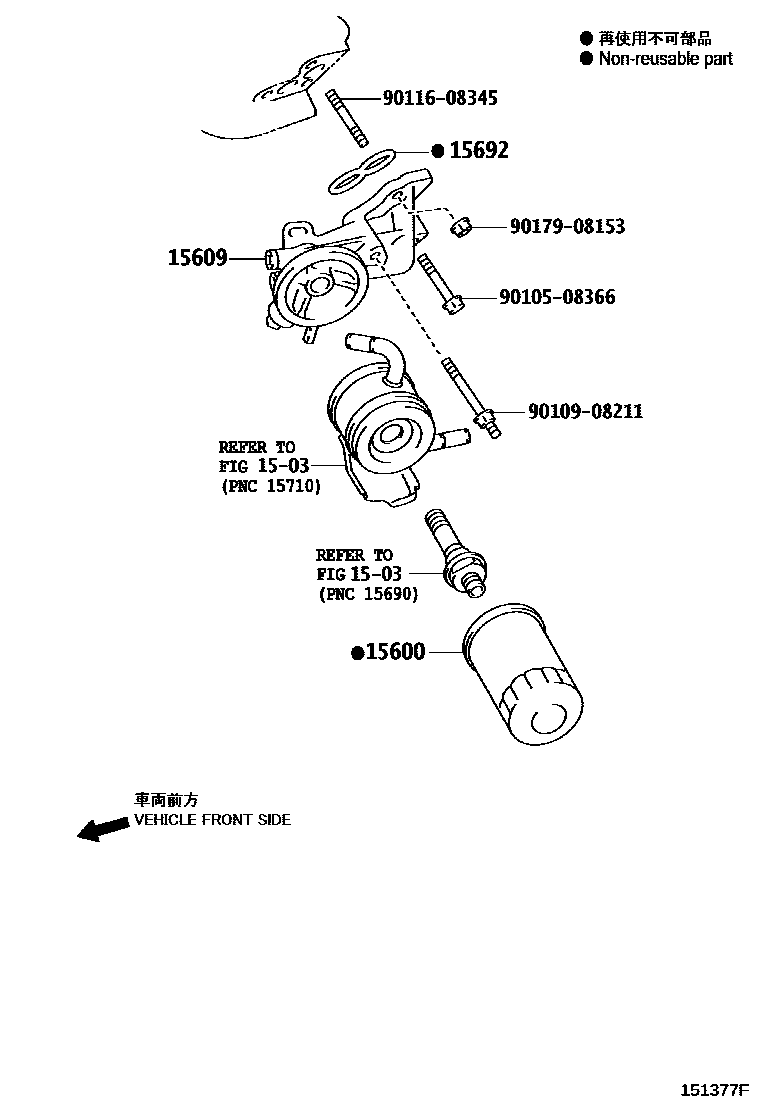

OIL FILTER

0001 1 0002 1 0003 1

1503ENGINE OIL COOLER

→ Go to FIG 15-03

15600FILTER ASSY, OIL

main90915-20004i2UZFE..UZJ200200709-201201

15609BRACKET SUB-ASSY, OIL FILTER

main15609-50110i2UZFE..UZJ200200709-201201

main15609-51010i1VDFTV..VDJ200200709-201201

15692GASKET, OIL FILTER BRACKET

main15692-50020i2UZFE..UZJ200200709-201201

9010508366

main90105-08366

9010908211

main90109-08211

9011608345

main90116-08345

9017908153

main90179-08153

8 parts on this diagram · 3 diagrams in section
