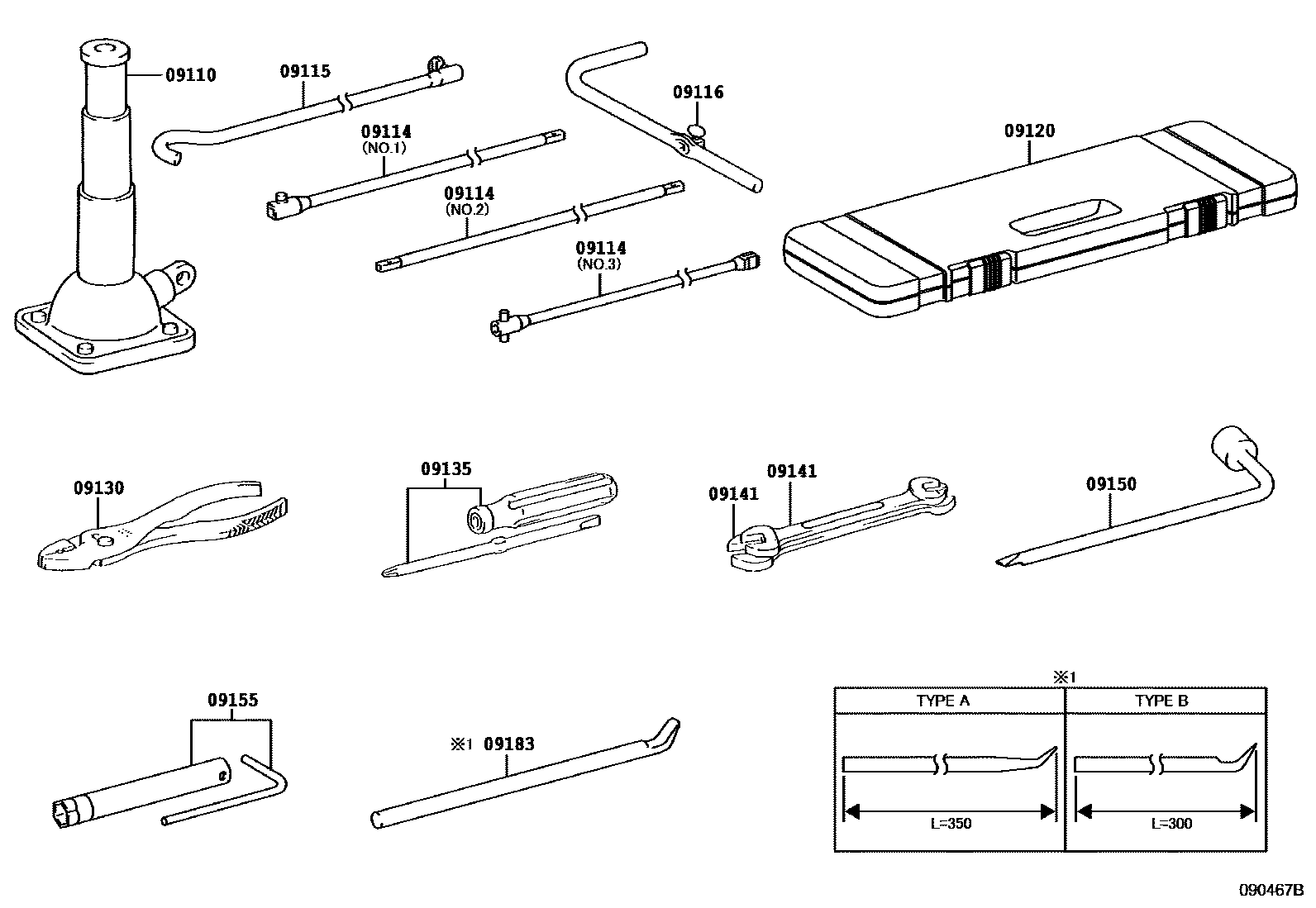

STANDARD TOOL

09110JACK ASSY

main09111-60120iUZJ200,VDJ200200709-201508

sub09111-60121

main09111-60121iURJ202,VDJ200201508-201608

sub09111-60122

main09111-60122iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201608-202104

sub09111-60150

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60070iUZJ200,VDJ200200709-202104

NO.1

main09114-60080iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR200709-202104

NO.2

main09114-60090iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

NO.3

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110iUZJ200,VDJ200200709-202104

09116LEVER, JACK HANDLE

main09116-35080iUZJ200,VDJ200200709-202009

sub09116-60020

main09116-60020iVDJ200..08S;URJ202..VXR;URJ202..05S202010-202104

09120BAG, TOOL

main09120-60210iUZJ200,VDJ200200709-202104

09130PLIERS

main99913-11500iUZJ200,VDJ200200709-202104

09135DRIVER, SCREW

main99915-10700iUZJ200,VDJ200200709-202104

09141SPANNER

main99914-10810iURJ202,VDJ200200709-202104

8 X 10

main99914-11214iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR200709-202104

12 X 14

09150WRENCH, HUB NUT BOX

main09150-60030iURJ202,VDJ200200709-202104

09155WRENCH, SPARK PLUG

main09155-74010iURJ202..VXR;URJ202..05S200709-202104

09183WRENCH, WHEEL CAP

main09183-00030iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201201-202104

TYPE A:REFER ILLUST.

main09183-00030iUZJ200,VDJ200200709-201201

main09183-60050iURJ202,VDJ200201506-201508

TYPE B:REFER ILLUST.

11 parts on this diagram · 1 diagram in section
