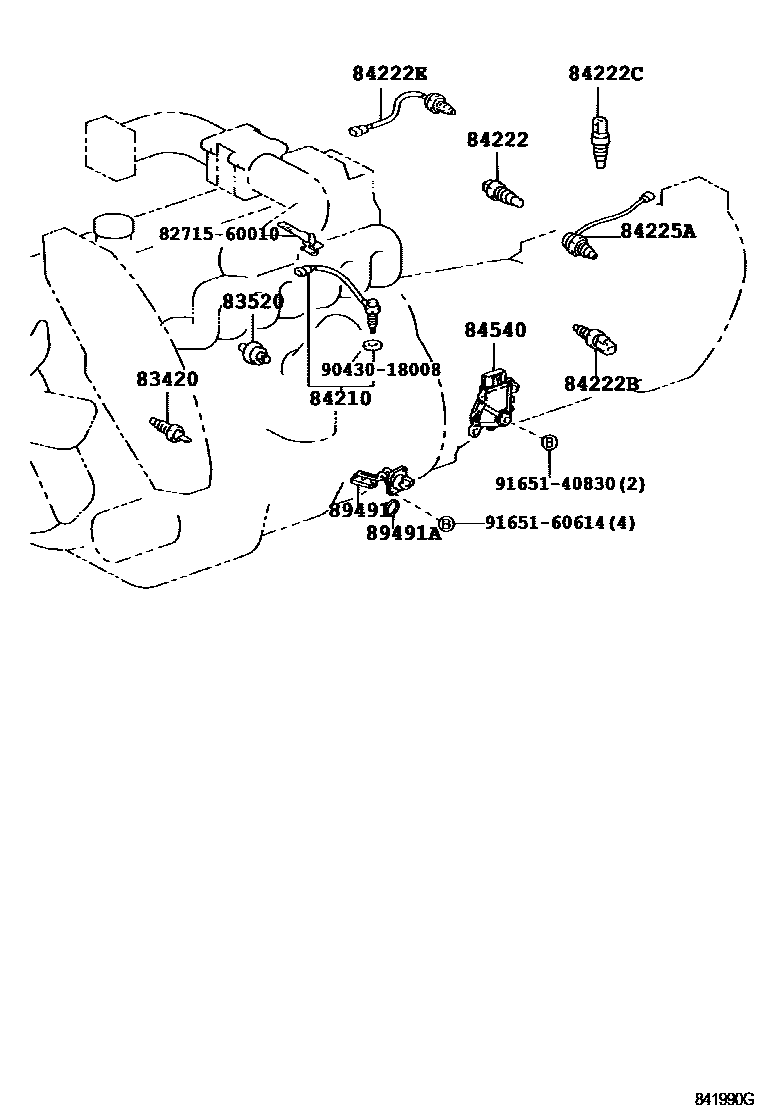

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1COWL 0006 1COWL 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL SWITCH 0010 1INSTRUMENT PANEL SWITCH 0011 1INSTRUMENT PANEL SWITCH 0012 1INSTRUMENT PANEL SWITCH 0013 1CENTER CLUSTER INTEGRATION 0014 1CENTER CLUSTER INTEGRATION 0015 1CENTER CLUSTER INTEGRATION 0016 1CENTER CLUSTER INTEGRATION 0017 1IGNITION & COMBINATION SWITCH0018 1IGNITION & COMBINATION SWITCH0019 1IGNITION & COMBINATION SWITCH0020 1IGNITION & COMBINATION SWITCH0021 1DOOR & ROOF 0022 1DOOR & ROOF 0023 1DOOR & ROOF 0024 1DOOR & ROOF 0025 1FLOOR & BACK DOOR 0026 1FROOR & BACK DOOR 0027 1FLOOR & BACK DOOR 0028 1FLOOR & BACK DOOR 0029 1SEAT 0030 1SEAT

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iHDJ100199801-200708

main83420-20040iUZJ100199801-200708

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-35020iUZJ100199801-200409

sub83520-60050

main83520-35030iHDJ100..4FC199801-200409

sub83520-35031

main83520-35031iHDJ100200409-200505

sub83520-35032

main83520-60050iUZJ100200409-200505

sub83520-60051

84210SWITCH ASSY, BACK-UP LAMP

main84210-60030iHDJ100..4FC,5F199801-200708

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iHDJ100,UZJ100199801-200708

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-60080iHDJ100,UZJ100..4FC199801-199909

sub84222-60081

main84222-60081iHDJ100,UZJ100..5FC199909-200708

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-12010iHDJ100,UZJ100199801-200708

84222ESWITCH, DIFFERENTIAL LOCK INDICATOR

main84222-60090iHDJ100,UZJ100199801-200708

84225ASWITCH, SHIFT POSITION

main84225-35010iHDJ100..5F199801-200708

84540SWITCH ASSY, NEUTRAL START

main84540-30270iUZJ100199801-199907

main84540-51010iUZJ100199907-200708

main84540-65010iUZJ100..LHD199907-200208

RUSSIA SPEC OR SOUTH AMERICA

main84540-65010iHDJ100..4FC199801-200307

89491SENSOR, ENGINE OIL LEVEL

main89491-60060iHDJ100199801-200505

main89491-60070iUZJ100199801-200505

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iHDJ100,UZJ100199801-200505

8271560010BRACKET,WIRING HARNESS CLAMP

main82715-60010

9043018008

main90430-18008

9165140830

main91651-40830

9165160614

main91651-60614

15 parts on this diagram · 30 diagrams in section
