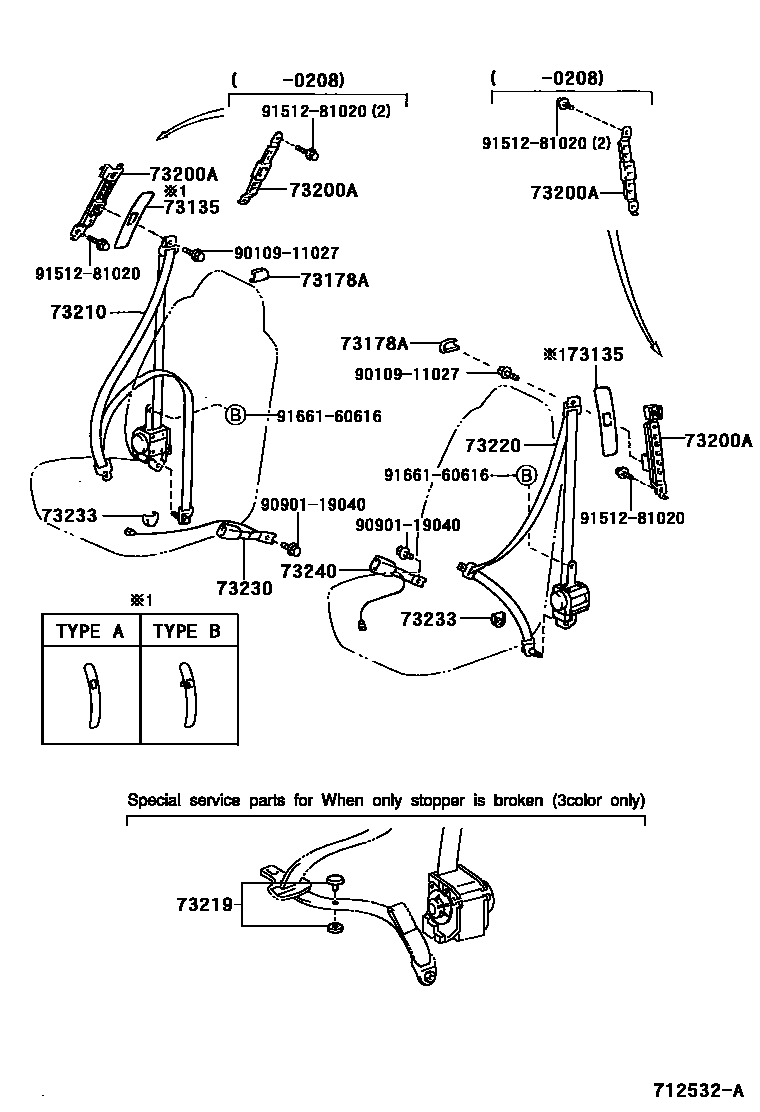

SEAT BELT
73135COVER, SHOULDER BELT ANCHORAGE PLATE
IVORY,TRIM40,41,REAR
MD.GRAY,TRIM1#,REAR
W(FLOCKING),IVORY,TRIM40,41
FRONT & REAR,IVORY,TRIM0#,TYPE A:REFER ILLUST.; IVORY,TRIM0#,TYPE A:REFER ILLUST.
W(FLOCKING),MD.GRAY,TRIM1#
STONE,TRIM1#; TYPE A:REFER TO ILLUSTRATION,STONE,TRIM1#,FRONT; TYPE A:REFER TO ILLUSTRATION,STONE,TRIM1#,FRONT & REAR
TYPE B:REFER TO ILLUSTRATION,IVORY,TRIM0#
FRONT & REAR,STONE,TRIM1#,TYPE B:REFER ILLUST.; STONE,TRIM1#,TYPE B:REFER ILLUST.
73178ACAP, SEAT BELT ANCHOR COVER
IVORY,TRIM40,41
W(FRONT BENCH SEAT),IVORY,TRIM0#
MD.GRAY,TRIM1#
W(FRONT BENCH SEAT),STONE,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
W(ADJUSTABLE SEAT BELT=FRONT & REAR),BLACK,TRIM1#,4#; W(ADJUSTABLE SEAT BELT=FRONT & REAR),BLACK,TRIM1#,40,41
REAR NO.1 SEAT
FRONT SEAT
73210BELT ASSY, FRONT SEAT OUTER, RH
IVORY,TRIM4#; IVORY,TRIM40,41
BLUISH GRAY,TRIM1#
W(*80,DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM4#; W(*80,DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM40,41
W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#
W(*80,DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM40,41
W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#
W(PRETENSIONER SEAT BELT),IVORY,TRIM0#
W(PRETENSIONER SEAT BELT),GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
CHINA SPEC,IVORY,TRIM40,41
CHINA SPEC,BLUISH GRAY,TRIM1#
W(FRONT BENCH SEAT),IVORY,TRIM0#
W(FRONT BENCH SEAT),GRAY,TRIM1#
CHINA SPEC,IVORY,TRIM0#
CHINA SPEC,GRAY,TRIM1#
W(FRONT BENCH SEAT),GRAY,TRIM1#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
IVORY,TRIM4#; IVORY,TRIM40,41
BLUISH GRAY,TRIM1#
W(*80,DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM4#; W(*80,DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM40,41
W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#
W(*80,DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM40,41
W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
CHINA SPEC,IVORY,TRIM40,41
CHINA SPEC,BLUISH GRAY,TRIM1#
W(FRONT BENCH SEAT & PRETENSIONER SEAT BELT),IVORY,TRIM0#
W(FRONT BENCH SEAT & PRETENSIONER SEAT BELT),GRAY,TRIM1#
CHINA SPEC,IVORY,TRIM0#
CHINA SPEC,GRAY,TRIM1#
W(FRONT BENCH SEAT),GRAY,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
IVORY,TRIM4#
MD.GRAY,TRIM1#
W(POWER SEAT),IVORY,TRIM4#
W(POWER SEAT),MD.GRAY,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
W(POWER SEAT),IVORY,TRIM0#
W(POWER SEAT),STONE,TRIM1#
W(SEAT POSITION AIR BAG SENSOR),IVORY,TRIM0#
W(SRS SIDE AIR BAG),STONE,TRIM1#
W(POWER SEAT & SRS SIDE AIR BAG),IVORY,TRIM0#
W(POWER SEAT & SRS SIDE AIR BAG),STONE,TRIM1#
W(FRONT BENCH SEAT),GRAY,TRIM1#
W(FRONT BENCH SEAT),IVORY,TRIM0#
W(FRONT BENCH SEAT & PASSENGER SEAT BELT WARNING),GRAY,TRIM1#
W(PASSENGER SEAT BELT WARNING),IVORY,TRIM0#
STONE,TRIM1#
W(POWER SEAT & PASSENGER SEAT BELT WARNING),IVORY,TRIM0#
W(POWER SEAT),STONE,TRIM1#
STONE,TRIM1#
73233COVER, LAP BELT OUTER ANCHOR
IVORY,TRIM40,41
IVORY,TRIM0#
MD.GRAY,TRIM1#
STONE,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
W(FRONT SEPARATE SEAT & *80),IVORY,TRIM4#
W(FRONT SEPARATE SEAT & *80),MD.GRAY,TRIM1#
W(POWER SEAT),IVORY,TRIM4#
W(POWER SEAT),MD.GRAY,TRIM1#
W(FRONT BENCH SEAT),IVORY,TRIM0#
W(FRONT BENCH SEAT),STONE,TRIM1#
IVORY,TRIM0#
STONE,TRIM1#
W(POWER SEAT),IVORY,TRIM0#
W(POWER SEAT),STONE,TRIM1#
W(SRS SIDE AIR BAG),IVORY,TRIM0#
W(SEAT POSITION AIR BAG SENSOR),STONE,TRIM1#
W(POWER SEAT & SRS SIDE AIR BAG),IVORY,TRIM0#
W(POWER SEAT & SEAT POSITION AIR BAG SENSOR),STONE,TRIM1#
W(FRONT SEPARATE SEAT),MD.GRAY,TRIM1#
BLUISH GRAY,TRIM1#
W(FRONT BENCH SEAT),IVORY,TRIM4#
W(FRONT BENCH SEAT),BLUISH GRAY,TRIM1#
IVORY,TRIM0#
W(PASSENGER SEAT BELT WARNING),STONE,TRIM1#
W(POWER SEAT),IVORY,TRIM0#
W(POWER SEAT),STONE,TRIM1#
9010911027
main90109-11027
9090119040
main90901-19040
9151281020
main91512-81020
9166160616
main91661-60616
13 parts on this diagram · 6 diagrams in section
