INSIDE TRIM BOARD

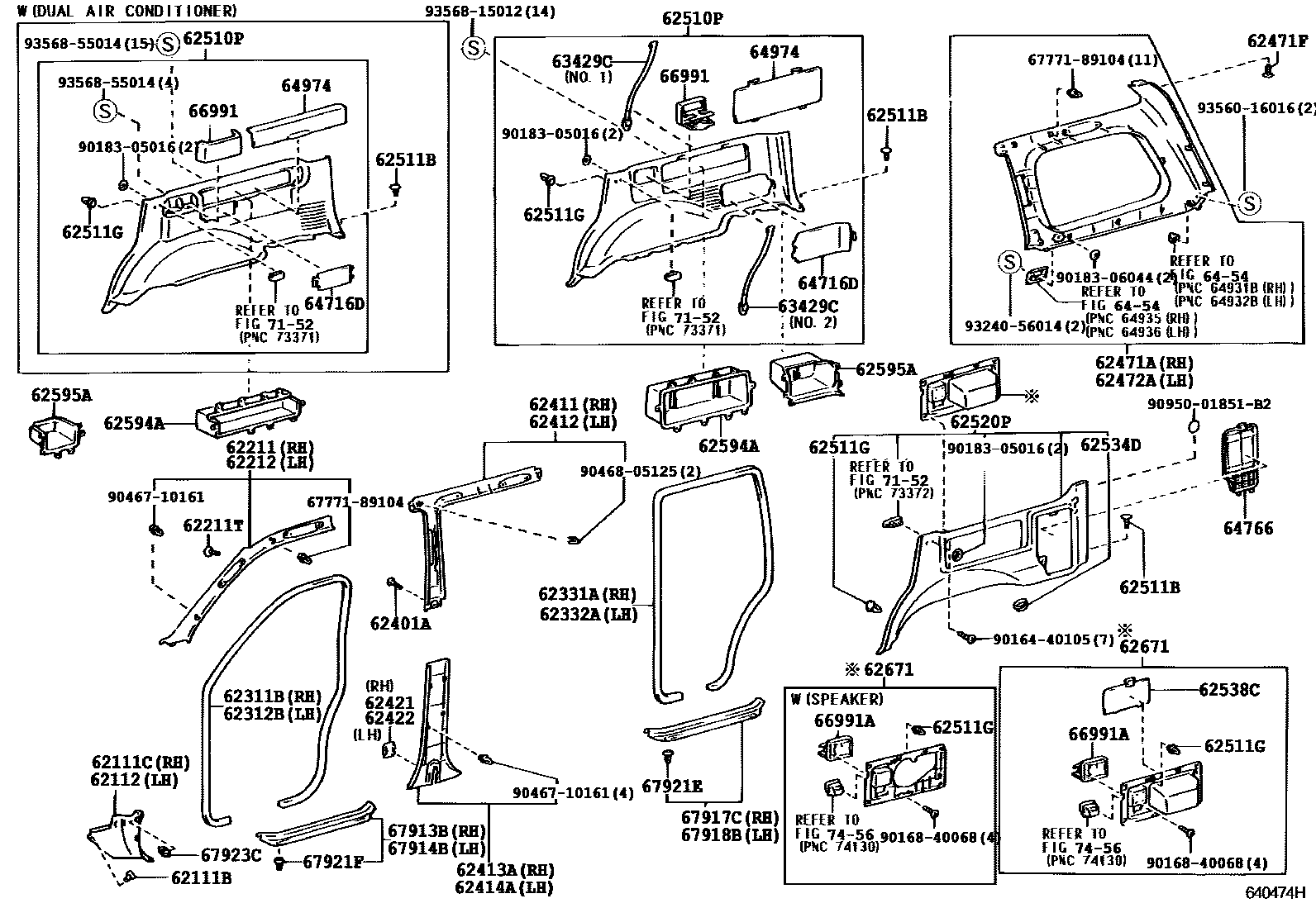

Parts diagram
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06183i199801-200505
62111CBOARD, COWL SIDE TRIM, RH
main62111-60070-A0i199801-200208
IVORY,TRIM40,41
main62111-60070-B0i199801-200208
MD.GRAY,TRIM1#
main62111-60071-A1i200208-200612
IVORY,TRIM0#
sub62111-60072
main62111-60071-B1i200208-200612
STONE,TRIM1#
sub62111-60072
main62111-60072-A1i200701-200708
IVORY,TRIM0#
sub62111-60073
main62111-60072-B1i200701-200708
STONE,TRIM1#
sub62111-60073
62112BOARD, COWL SIDE TRIM, LH
main62112-60110-A0i199801-200208
IVORY,TRIM40,41
sub62112-60111
main62112-60110-A1i200208-200612
IVORY,TRIM0#
sub62112-60111
main62112-60110-B0i199801-200208
MD.GRAY,TRIM1#
sub62112-60111
main62112-60110-B1i200208-200612
STONE,TRIM1#
sub62112-60111
main62112-60111-A1i200701-200708
IVORY,TRIM0#
sub62112-60112
main62112-60111-B1i200701-200708
STONE,TRIM1#
sub62112-60112
62211GARNISH, FRONT PILLAR, RH
main62210-60060-A0i199801-200208
IVORY,TRIM40,41
sub62210-60060
main62210-60060-B0i199801-200208
MD.GRAY,TRIM1#
sub62210-60060
main62210-60070-A0i199801-200208
IVORY,TRIM40,41
sub62210-60071
main62210-60070-B0i199801-200208
MD.GRAY,TRIM1#
sub62210-60071
main62210-60080-B0i200008-200208
MD.GRAY,TRIM1#
sub62210-60080
main62210-60081-B2i200208-200505
STONE,TRIM1#
sub62210-60120
main62210-60090-A1i200208-200708
IVORY,TRIM0#
sub62210-60130
main62210-60090-B1i200208-200708
STONE,TRIM1#
sub62210-60130
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-05146-B0i200008-200208
MD.GRAY,TRIM1#
sub90467-05146
62212GARNISH, FRONT PILLAR, LH
main62220-60060-A0i199801-200208
IVORY,TRIM40,41
sub62220-60060
main62220-60060-B0i199801-200208
MD.GRAY,TRIM1#
sub62220-60060
main62220-60070-A0i199801-200208
IVORY,TRIM40,41
sub62220-60071
main62220-60070-B0i199801-200208
MD.GRAY,TRIM1#
sub62220-60071
main62220-60080-B0i200008-200208
MD.GRAY,TRIM1#
sub62220-60080
main62220-60081-B2i200208-200505
STONE,TRIM1#
sub62220-60120
main62220-60090-A1i200208-200708
IVORY,TRIM0#
sub62220-60130
main62220-60090-B1i200208-200708
STONE,TRIM1#
sub62220-60130
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-60080-A0i199801-200203
IVORY,TRIM40,41
sub62311-60081
main62311-60080-B2i199801-200203
BLUISH GRAY,TRIM1#
sub62311-60081
main62311-60081-A0i200203-200208
IVORY,TRIM40,41
sub62311-60090
main62311-60081-B2i200203-200208
BLUISH GRAY,TRIM1#
sub62311-60090
main62311-60090-B0i200008-200208
MD.GRAY,TRIM1#
sub62311-60090
main62311-60120-A0i200208-200509
IVORY,TRIM0#
sub62311-60121
main62311-60120-B0i200208-200509
STONE,TRIM1#
sub62311-60121
main62311-60121-A0i200510-200708
IVORY,TRIM0#
sub62311-60131
main62311-60121-B0i200510-200708
STONE,TRIM1#
sub62311-60131
main62311-60130-B1i200208-200505
STONE,TRIM1#
sub62311-60131
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-60080-A0i199801-200203
IVORY,TRIM40,41
sub62312-60081
main62312-60080-B2i199801-200203
BLUISH GRAY,TRIM1#
sub62312-60081
main62312-60081-A0i200203-200208
IVORY,TRIM40,41
sub62312-60090
main62312-60081-B2i200203-200208
BLUISH GRAY,TRIM1#
sub62312-60090
main62312-60090-B0i200008-200208
MD.GRAY,TRIM1#
sub62312-60090
main62312-60120-A0i200208-200509
IVORY,TRIM0#
sub62312-60121
main62312-60120-B0i200208-200509
STONE,TRIM1#
sub62312-60121
main62312-60121-A0i200510-200708
IVORY,TRIM0#
sub62312-60131
main62312-60121-B0i200510-200708
STONE,TRIM1#
sub62312-60131
main62312-60130i200208-200505
sub62312-60131
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-60020-A0i199801-200203
IVORY,TRIM40,41
sub62331-60021
main62331-60020-B2i199801-200203
BLUISH GRAY,TRIM1#
sub62331-60021
main62331-60021-A0i200203-200208
IVORY,TRIM40,41
sub62331-60031
main62331-60021-B2i200203-200208
BLUISH GRAY,TRIM1#
sub62331-60031
main62331-60030-B0i200008-200203
MD.GRAY,TRIM1#
sub62331-60031
main62331-60031-B0i200203-200208
MD.GRAY,TRIM1#
sub62331-60031
main62331-60060-A0i200208-200509
IVORY,TRIM0#
sub62331-60061
main62331-60060-B0i200208-200509
STONE,TRIM1#
sub62331-60061
main62331-60061-A0i200510-200708
IVORY,TRIM0#
sub62331-60071
main62331-60061-B0i200510-200708
STONE,TRIM1#
sub62331-60071
main62331-60070-B1i200208-200505
STONE,TRIM1#
sub62331-60071
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-60020-A0i199801-200203
IVORY,TRIM40,41
sub62332-60021
main62332-60020-B2i199801-200203
BLUISH GRAY,TRIM1#
sub62332-60021
main62332-60021-A0i200203-200208
IVORY,TRIM40,41
sub62332-60031
main62332-60021-B2i200203-200208
BLUISH GRAY,TRIM1#
sub62332-60031
main62332-60030-B0i200008-200203
MD.GRAY,TRIM1#
sub62332-60031
main62332-60031-B0i200203-200208
MD.GRAY,TRIM1#
sub62332-60031
main62332-60060-A0i200208-200509
IVORY,TRIM0#
sub62332-60061
main62332-60060-B0i200208-200509
STONE,TRIM1#
sub62332-60061
main62332-60061-A0i200510-200708
IVORY,TRIM0#
sub62332-60071
main62332-60061-B0i200510-200708
STONE,TRIM1#
sub62332-60071
main62332-60070-B1i200208-200505
STONE,TRIM1#
sub62332-60071
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
main90467-05021-C0i200008-200505
BLACK,TRIM1#
sub90467-05021
sub90467-06177
main90467-05021-C0i200208-200708
BLACK,TRIM0#,1#
sub90467-05021
sub90467-06177
main90467-05021-C0i199801-200208
BLACK,TRIM1#,40,41
sub90467-05021
sub90467-06177
62411GARNISH, CENTER PILLAR, RH
main62410-60010-A0i199801-200208
IVORY,TRIM40,41
sub62410-60012
main62410-60010-B0i199801-200208
MD.GRAY,TRIM1#
sub62410-60012
main62410-60011-A2i200208-200708
W(*80,CURTAIN SHIELD),IVORY,TRIM0#
main62410-60011-B2i200208-200708
W(*80,CURTAIN SHIELD),STONE,TRIM1#
main62410-60020-B0i200008-200208
MD.GRAY,TRIM1#
main62410-60021-B2i200208-200505
STONE,TRIM1#
sub62410-60080
main62410-60060-A1i200208-200708
IVORY,TRIM0#
sub62410-60090
main62410-60060-B1i200208-200708
STONE,TRIM1#
sub62410-60090
62412GARNISH, CENTER PILLAR, LH
main62420-60010-A0i199801-200208
IVORY,TRIM40,41
sub62420-60012
main62420-60010-B0i199801-200208
MD.GRAY,TRIM1#
sub62420-60012
main62420-60011-A2i200208-200708
W(*80,CURTAIN SHIELD),IVORY,TRIM0#
main62420-60011-B2i200208-200708
W(*80,CURTAIN SHIELD),STONE,TRIM1#
main62420-60020-B0i200008-200208
MD.GRAY,TRIM1#
main62420-60021-B2i200208-200505
STONE,TRIM1#
sub62420-60080
main62420-60060-A1i200208-200708
IVORY,TRIM0#
sub62420-60090
main62420-60060-B1i200208-200708
STONE,TRIM1#
sub62420-60090
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-60050-A0i199801-200208
IVORY,TRIM40,41
sub62413-60051
main62413-60050-A1i200208-200612
IVORY,TRIM0#
sub62413-60051
main62413-60050-B0i199801-200208
MD.GRAY,TRIM1#
sub62413-60051
main62413-60050-B1i200208-200612
STONE,TRIM1#
sub62413-60051
main62413-60051-A1i200701-200708
IVORY,TRIM0#
main62413-60051-B1i200701-200708
STONE,TRIM1#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-60060-A0i199801-200208
IVORY,TRIM40,41
sub62414-60060
sub62414-60061
main62414-60060-A1i200208-200612
IVORY,TRIM0#
sub62414-60060
sub62414-60061
main62414-60060-B0i199801-200208
MD.GRAY,TRIM1#
sub62414-60060
sub62414-60061
main62414-60060-B1i200208-200612
STONE,TRIM1#
sub62414-60060
sub62414-60061
main62414-60061-A1i200701-200708
IVORY,TRIM0#
main62414-60061-B1i200701-200708
STONE,TRIM1#
62421COVER, CENTER PILLAR GARNISH, RH
main62421-60010-A0i199801-200208
IVORY,TRIM40,41
sub62421-60011
main62421-60010-A1i200208-200612
IVORY,TRIM0#
sub62421-60011
main62421-60010-B0i199801-200208
MD.GRAY,TRIM1#
sub62421-60011
main62421-60010-B1i200208-200612
STONE,TRIM1#
sub62421-60011
main62421-60011-A1i200701-200708
IVORY,TRIM0#
sub62421-60012
main62421-60011-B1i200701-200708
STONE,TRIM1#
sub62421-60012
62422COVER, CENTER PILLAR GARNISH, LH
main62421-60010-A0i199801-200208
IVORY,TRIM40,41
sub62421-60011
main62421-60010-A1i200208-200612
IVORY,TRIM0#
sub62421-60011
main62421-60010-B0i199801-200208
MD.GRAY,TRIM1#
sub62421-60011
main62421-60010-B1i200208-200612
STONE,TRIM1#
sub62421-60011
main62421-60011-A1i200701-200708
IVORY,TRIM0#
sub62421-60012
main62421-60011-B1i200701-200708
STONE,TRIM1#
sub62421-60012
62471AGARNISH, ROOF SIDE, INNER RH
main62470-60030-A0i199801-200208
W(TONNEAU COVER),IVORY,TRIM40,41
main62470-60030-B0i199801-200208
W(TONNEAU COVER),MD.GRAY,TRIM1#
main62470-60031-A2i200508-200708
W(TONNEAU COVER),IVORY,TRIM0#
main62470-60031-A2i200208-200708
W(*80,CURTAIN SHIELD & TONNEAU COVER),IVORY,TRIM0#
main62470-60031-B2i200208-200708
W(*80,CURTAIN SHIELD & TONNEAU COVER),STONE,TRIM1#
main62470-60031-B2i200508-200708
W(TONNEAU COVER),STONE,TRIM1#
main62470-60050-A0i199801-200208
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),IVORY,TRIM40,41
main62470-60050-B0i199801-200208
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),MD.GRAY,TRIM1#
main62470-60051-A2i200208-200708
W(*80,CURTAIN SHIELD & TRANSVERSE THIRD SEAT & TONNEAU COVER),IVORY,TRIM0#
main62470-60051-A2i200508-200708
W(SRS CURTAIN SHIELD AIR BAG & TRANSVERSE THIRD SEAT),IVORY,TRIM0#
main62470-60051-B2i200508-200708
W(SRS CURTAIN SHIELD AIR BAG & TRANSVERSE THIRD SEAT),STONE,TRIM1#
main62470-60051-B2i200208-200708
W(*80,CURTAIN SHIELD & TRANSVERSE THIRD SEAT & TONNEAU COVER),STONE,TRIM1#
main62470-60060-A0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),IVORY,TRIM40,41
main62470-60060-B0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),MD.GRAY,TRIM1#
main62470-60090-A0i199801-200208
IVORY,TRIM40,41
main62470-60090-B0i199801-200208
MD.GRAY,TRIM1#
main62470-60091-A2i200208-200708
W(*80,CURTAIN SHIELD),IVORY,TRIM0#
sub62470-60031
sub93240-56014
main62470-60091-B2i200208-200708
W(*80,CURTAIN SHIELD),STONE,TRIM1#
sub62470-60031
sub93240-56014
main62470-60100-A0i199801-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41
main62470-60100-B0i199801-200208
W(TRANSVERSE THIRD SEAT),MD.GRAY,TRIM1#
main62470-60101-A2i200208-200708
W(*80,CURTAIN SHIELD & TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub62470-60051
sub93240-56014
main62470-60101-B2i200208-200708
W(*80,CURTAIN SHIELD & TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub62470-60051
sub93240-56014
main62470-60120-B0i200008-200208
MD.GRAY,TRIM1#
main62470-60121-B2i200208-200505
STONE,TRIM1#
sub62470-60021
sub93240-56014
main62470-60140-A0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM40,41
main62470-60140-B0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),MD.GRAY,TRIM1#
main62470-60150-A0i199801-200208
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM4#
main62470-60150-B0i200008-200208
W(REAR SIDE GLASS SWING TYPE),MD.GRAY,TRIM1#
main62470-60150-B0i199801-200208
W(OPPOSING TYPE THIRD SEAT),MD.GRAY,TRIM1#
main62470-60151-A2i200208-200708
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM0#
main62470-60151-B2i200208-200708
W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1#
main62470-60340-A1i200508-200708
W(DUAL AIR CONDITIONER & TRANSVERSE THIRD SEAT & SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#
main62470-60340-A1i200208-200708
W(*80,CURTAIN SHIELD & TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),IVORY,TRIM0#
main62470-60340-B1i200208-200708
W(*80,CURTAIN SHIELD & TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),STONE,TRIM1#
main62470-60340-B1i200508-200708
W(DUAL AIR CONDITIONER & TRANSVERSE THIRD SEAT & SRS CURTAIN SHIELD AIR BAG),STONE,TRIM1#
main62470-60350-A1i200208-200708
W(*80,CURTAIN SHIELD & TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#
sub62470-60340
sub93240-56014
main62470-60350-B1i200208-200708
W(*80,CURTAIN SHIELD & TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#
sub62470-60340
sub93240-56014
main62470-60360-A1i200208-200508
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),IVORY,TRIM0#
main62470-60360-B1i200208-200508
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),STONE,TRIM1#
main62470-60370-A1i200208-200708
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),IVORY,TRIM0#
main62470-60370-B1i200208-200708
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),STONE,TRIM1#
main62470-60380-A1i200208-200708
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub62470-60360
sub93240-56014
main62470-60380-B1i200208-200708
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub62470-60360
sub93240-56014
main62470-60390-A1i200208-200708
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#
sub62470-60470
main62470-60390-B1i200208-200708
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#
sub62470-60470
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
main90467-05021-C0i200208-200708
BLACK,TRIM0#,1#
sub90467-05021
sub90467-06177
main90467-05021-C0i200008-200505
BLACK,TRIM1#
sub90467-05021
sub90467-06177
main90467-05021-C0i199801-200208
BLACK,TRIM1#,40,41
sub90467-05021
sub90467-06177
62472AGARNISH, ROOF SIDE, INNER LH
main62480-60010-A0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),IVORY,TRIM40,41
main62480-60010-B0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),MD.GRAY,TRIM1#
main62480-60020-A0i199801-200208
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),IVORY,TRIM40,41
main62480-60020-B0i199801-200208
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),MD.GRAY,TRIM1#
main62480-60021-A2i200508-200708
W(SRS CURTAIN SHIELD AIR BAG & TRANSVERSE THIRD SEAT),IVORY,TRIM0#
main62480-60021-A2i200208-200708
W(*80,CURTAIN SHIELD & TRANSVERSE THIRD SEAT & TONNEAU COVER),IVORY,TRIM0#
main62480-60021-B2i200208-200708
W(*80,CURTAIN SHIELD & TRANSVERSE THIRD SEAT & TONNEAU COVER),STONE,TRIM1#
main62480-60021-B2i200508-200708
W(SRS CURTAIN SHIELD AIR BAG & TRANSVERSE THIRD SEAT),STONE,TRIM1#
main62480-60040-A0i199801-200208
IVORY,TRIM40,41
main62480-60040-B0i199801-200208
MD.GRAY,TRIM1#
main62480-60041-A2i200208-200708
W(*80,CURTAIN SHIELD),IVORY,TRIM0#
sub62480-60111
sub93240-56014
main62480-60041-B2i200208-200708
W(*80,CURTAIN SHIELD),STONE,TRIM1#
sub62480-60111
sub93240-56014
main62480-60050-A0i199801-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41
main62480-60050-B0i199801-200208
W(TRANSVERSE THIRD SEAT),MD.GRAY,TRIM1#
main62480-60051-A2i200208-200708
W(*80,CURTAIN SHIELD & TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub62480-60021
sub93240-56014
main62480-60051-B2i200208-200708
W(*80,CURTAIN SHIELD & TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub62480-60021
sub93240-56014
main62480-60060-B0i200008-200208
MD.GRAY,TRIM1#
main62480-60061-B2i200208-200505
STONE,TRIM1#
sub62480-60101
sub93240-56014
main62480-60070-A0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM40,41
main62480-60070-B0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),MD.GRAY,TRIM1#
main62480-60080-A0i199801-200208
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM4#
main62480-60080-B0i199801-200208
W(OPPOSING TYPE THIRD SEAT),MD.GRAY,TRIM1#
main62480-60080-B0i200008-200208
W(REAR SIDE GLASS SWING TYPE),MD.GRAY,TRIM1#
main62480-60081-A2i200208-200708
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM0#
main62480-60081-B2i200208-200708
W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1#
main62480-60110-A0i199801-200208
W(TONNEAU COVER),IVORY,TRIM40,41
main62480-60110-B0i199801-200208
W(TONNEAU COVER),MD.GRAY,TRIM1#
main62480-60111-A2i200208-200708
W(*80,CURTAIN SHIELD & TONNEAU COVER),IVORY,TRIM0#
main62480-60111-A2i200508-200708
W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#
main62480-60111-B2i200508-200708
W(SRS CURTAIN SHIELD AIR BAG),STONE,TRIM1#
main62480-60111-B2i200208-200708
W(*80,CURTAIN SHIELD & TONNEAU COVER),STONE,TRIM1#
main62480-60260-A1i200208-200708
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),IVORY,TRIM0#
main62480-60260-A1i200508-200708
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),IVORY,TRIM0#
main62480-60260-B1i200208-200708
W(TRANSVERSE THIRD SEAT & TONNEAU COVER),STONE,TRIM1#
main62480-60260-B1i200508-200708
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & TONNEAU COVER),STONE,TRIM1#
main62480-60270-A1i200208-200708
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub62480-60350
main62480-60270-B1i200208-200708
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub62480-60350
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
main62503-60010-A0i199801-200208
IVORY,TRIM40,41
sub62503-60010
main62503-60010-A1i200208-200708
IVORY,TRIM0#
sub62503-60010
main62503-60010-B0i199801-200208
MD.GRAY,TRIM1#
sub62503-60010
main62503-60010-B1i200208-200708
STONE,TRIM1#
sub62503-60010
main62503-60020-A0i199801-200208
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM4#
sub62503-60020
main62503-60020-A1i200208-200708
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM0#
sub62503-60020
main62503-60020-B0i199801-200208
W(OPPOSING TYPE THIRD SEAT),MD.GRAY,TRIM1#
sub62503-60020
main62503-60020-B1i200208-200708
W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1#
sub62503-60020
main62503-60030-A0i199801-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41
sub62503-60030
main62503-60030-A1i200208-200708
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub62503-60030
main62503-60030-B0i199801-200208
W(TRANSVERSE THIRD SEAT),MD.GRAY,TRIM1#
sub62503-60030
main62503-60030-B1i200208-200708
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub62503-60030
main62503-60060-A0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),IVORY,TRIM40,41
sub62503-60060
sub62503-60090
main62503-60060-A1i200208-200610
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#
sub62503-60060
sub62503-60090
main62503-60060-B0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),MD.GRAY,TRIM1#
sub62503-60060
sub62503-60090
main62503-60060-B1i200208-200610
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#
sub62503-60060
sub62503-60090
main62503-60090-A0i200611-200708
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#
main62503-60090-B0i200611-200708
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-05021-C0i200008-200505
BLACK,TRIM1#
sub90467-05021
sub90467-06177
main90467-05021-C0i200208-200505
BLACK,TRIM0#,1#
sub90467-05021
sub90467-06177
main90467-05021-C0i200505-200708
BLACK
sub90467-05021
sub90467-06177
main90467-05021-C0i199801-200208
BLACK,TRIM1#,40,41
sub90467-05021
sub90467-06177
62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)
main67771-35010i200112-200505
WHITE
sub67771-42010
main67771-35010i200208-200505
W(DUAL AIR CONDITIONER),WHITE
sub67771-42010
main67771-35010i199903-200112
sub67771-42010
main67771-35010i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),WHITE
sub67771-42010
main67771-89104i200208-200505
W(DUAL AIR CONDITIONER),PINK
main67771-89104i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),PINK
main67771-89104i200112-200505
PINK
main90467-09091i199801-199903
sub67771-35010
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
main62504-60010-A0i199801-200208
IVORY,TRIM40,41
sub62504-60010
main62504-60010-A1i200208-200708
IVORY,TRIM0#
sub62504-60010
main62504-60010-B0i199801-200208
MD.GRAY,TRIM1#
sub62504-60010
main62504-60010-B1i200208-200708
STONE,TRIM1#
sub62504-60010
main62504-60020-A0i199801-200208
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM4#
sub62504-60020
main62504-60020-A1i200208-200708
W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM0#
sub62504-60020
main62504-60020-B0i199801-200208
W(OPPOSING TYPE THIRD SEAT),MD.GRAY,TRIM1#
sub62504-60020
main62504-60020-B1i200208-200708
W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1#
sub62504-60020
main62504-60030-A0i199801-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41
sub62504-60030
sub62504-60060
main62504-60030-A1i200208-200610
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub62504-60030
sub62504-60060
main62504-60030-B0i199801-200208
W(TRANSVERSE THIRD SEAT),MD.GRAY,TRIM1#
sub62504-60030
sub62504-60060
main62504-60030-B1i200208-200610
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub62504-60030
sub62504-60060
main62504-60060-A0i200611-200708
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
main62504-60060-B0i200611-200708
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
62534DBRACKET, QUARTER TRIM, NO.1, LH
main62534-60010-A0i199801-200208
IVORY,TRIM40,41
sub62534-60010
main62534-60010-A1i200208-200708
IVORY,TRIM0#
sub62534-60010
main62534-60010-B0i199801-200208
SHADOW GRAY,TRIM1#
sub62534-60010
main62534-60010-B1i200208-200708
STONE,TRIM1#
sub62534-60010
62538CCOVER, QUARTER TRIM, HOLE
main62538-60050-A0i199801-200208
IVORY,TRIM40,41
sub62538-60050
main62538-60050-A1i200208-200708
IVORY,TRIM0#
sub62538-60050
main62538-60050-B0i199801-200208
MD.GRAY,TRIM1#
sub62538-60050
main62538-60050-B1i200208-200708
STONE,TRIM1#
sub62538-60050
62594APOCKET, QUARTER TRIM, NO.1
main62594-60040-A0i199801-200208
IVORY,TRIM40,41
sub62594-60040
main62594-60040-A1i200208-200708
IVORY,TRIM0#
sub62594-60040
main62594-60040-B0i199801-200208
SHADOW GRAY,TRIM1#
sub62594-60040
main62594-60040-B1i200208-200708
STONE,TRIM1#
sub62594-60040
main62594-60050-A0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),IVORY,TRIM40,41
sub62594-60050
main62594-60050-A1i200208-200708
W(DUAL AIR CONDITIONER),IVORY,TRIM0#
sub62594-60050
main62594-60050-B0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),SHADOW GRAY,TRIM1#
sub62594-60050
main62594-60050-B1i200208-200708
W(DUAL AIR CONDITIONER),STONE,TRIM1#
sub62594-60050
62595APOCKET, QUARTER TRIM, NO.2
main62595-60030-A0i199801-200208
IVORY,TRIM40,41
sub62595-60030
main62595-60030-A1i200208-200708
IVORY,TRIM0#
sub62595-60030
main62595-60030-B0i199801-200208
SHADOW GRAY,TRIM1#
sub62595-60030
main62595-60030-B1i200208-200708
STONE,TRIM1#
sub62595-60030
main62595-60040-A0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),IVORY,TRIM40,41
sub62595-60040
main62595-60040-A1i200208-200708
W(DUAL AIR CONDITIONER),IVORY,TRIM0#
sub62595-60040
main62595-60040-B0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),SHADOW GRAY,TRIM1#
sub62595-60040
main62595-60040-B1i200208-200708
W(DUAL AIR CONDITIONER),STONE,TRIM1#
sub62595-60040
62671BOARD SUB-ASSY, QUARTER TRIM, LOWER
main62603-60010-A0i199801-200208
IVORY,TRIM40,41
sub62603-60010
main62603-60010-A1i200208-200708
IVORY,TRIM0#
sub62603-60010
main62603-60010-B0i199801-200208
MD.GRAY,TRIM1#
sub62603-60010
main62603-60010-B1i200208-200708
STONE,TRIM1#
sub62603-60010
main62603-60020-A0i200010-200108
50TH ANNIVERSARY & W(SPEAKER),IVORY,TRIM4#
sub62603-60020
main62603-60020-A1i200208-200708
W(SPEAKER),IVORY,TRIM0#
sub62603-60020
main62603-60020-B1i200208-200708
W(SPEAKER),STONE,TRIM1#
sub62603-60020
main62603-60030-A0i199801-200208
W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41
sub62603-60030
sub62603-60050
main62603-60030-A1i200208-200708
W(TRANSVERSE THIRD SEAT),IVORY,TRIM0#
sub62603-60030
sub62603-60050
main62603-60030-B0i199801-200208
W(TRANSVERSE THIRD SEAT),MD.GRAY,TRIM1#
sub62603-60030
sub62603-60050
main62603-60030-B1i200208-200708
W(TRANSVERSE THIRD SEAT),STONE,TRIM1#
sub62603-60030
sub62603-60050
main62603-60040-A0i200010-200108
50TH ANNIVERSARY & W(TRANSVERSE THIRD SEAT & SPEAKER),IVORY,TRIM40,41
sub62603-60040
sub62603-60060
main62603-60040-A0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),IVORY,TRIM40,41
sub62603-60040
sub62603-60060
main62603-60040-A1i200208-200610
W(TRANSVERSE THIRD SEAT & SPEAKER),IVORY,TRIM0#
sub62603-60040
sub62603-60060
main62603-60040-B0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),MD.GRAY,TRIM1#
sub62603-60040
sub62603-60060
main62603-60040-B0i200010-200108
50TH ANNIVERSARY & W(TRANSVERSE THIRD SEAT & SPEAKER),MD.GRAY,TRIM1#
sub62603-60040
sub62603-60060
main62603-60040-B1i200208-200610
W(TRANSVERSE THIRD SEAT & SPEAKER),STONE,TRIM1#
sub62603-60040
sub62603-60060
main62603-60060-A0i200611-200708
W(TRANSVERSE THIRD SEAT & SPEAKER),IVORY,TRIM0#
sub62603-60061
main62603-60060-B0i200611-200708
W(TRANSVERSE THIRD SEAT & SPEAKER),STONE,TRIM1#
sub62603-60061
63429CBAND, ROOM RACK
main62585-60010i199808-200505
NO.1
main63429-60030i199801-200505
W(OPPOSING TYPE THIRD SEAT)
main63429-60030i199808-200505
NO.2
main63429-60030i199801-199808
6454
64716DCOVER, DECK TRIM, REAR
main64716-60030-A0i199801-200208
IVORY,TRIM40,41
sub64716-60030
main64716-60030-A1i200208-200708
IVORY,TRIM0#
sub64716-60030
main64716-60030-B0i199801-200208
MD.GRAY,TRIM1#
sub64716-60030
main64716-60030-B1i200208-200708
STONE,TRIM1#
sub64716-60030
main64716-60040-A0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),IVORY,TRIM40,41
sub64716-60040
main64716-60040-A1i200208-200708
W(DUAL AIR CONDITIONER),IVORY,TRIM0#
sub64716-60040
main64716-60040-B0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),MD.GRAY,TRIM1#
sub64716-60040
main64716-60040-B1i200208-200708
W(DUAL AIR CONDITIONER),STONE,TRIM1#
sub64716-60040
64766COVER SUB-ASSY, QUARTER TRIM JACK
main64766-60050-A0i199801-200208
IVORY,TRIM40,41
sub64766-60051
main64766-60050-A1i200208-200612
IVORY,TRIM0#
sub64766-60051
main64766-60050-B0i199801-200208
MD.GRAY,TRIM1#
sub64766-60051
main64766-60050-B1i200208-200612
STONE,TRIM1#
sub64766-60051
main64766-60051-A1i200701-200708
IVORY,TRIM0#
sub64766-60051
sub64766-60052
main64766-60051-B1i200701-200708
STONE,TRIM1#
sub64766-60051
sub64766-60052
64974COVER, DECK TRIM POCKET
main64974-60010-A0i199801-200208
IVORY,TRIM40,41
sub64974-60010
main64974-60010-A1i200208-200708
IVORY,TRIM0#
sub64974-60010
main64974-60010-B0i199801-200208
MD.GRAY,TRIM1#
sub64974-60010
main64974-60010-B1i200208-200708
STONE,TRIM1#
sub64974-60010
main64974-60020-A0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),IVORY,TRIM40,41
sub64974-60020
main64974-60020-A1i200208-200708
W(DUAL AIR CONDITIONER),IVORY,TRIM0#
sub64974-60020
main64974-60020-B0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),MD.GRAY,TRIM1#
sub64974-60020
main64974-60020-B1i200208-200708
W(DUAL AIR CONDITIONER),STONE,TRIM1#
sub64974-60020
66991HOLDER, QUARTER TRIM CUP, RH
main66907-60010-A0i199801-200208
IVORY,TRIM40,41
sub66907-60010
main66907-60010-A1i200505-200708
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#
sub66907-60010
main66907-60010-A1i200208-200505
IVORY,TRIM0#
sub66907-60010
main66907-60010-B0i199801-200208
MD.GRAY,TRIM1#
sub66907-60010
main66907-60010-B1i200208-200708
STONE,TRIM1#
sub66907-60010
main66907-60010-B1i200505-200508
W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#
sub66907-60010
main66991-60010-A0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),IVORY,TRIM40,41
sub66991-60010
main66991-60010-A1i200208-200708
W(DUAL AIR CONDITIONER),IVORY,TRIM0#
sub66991-60010
main66991-60010-B0i200001-200208
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER & SPEAKER),MD.GRAY,TRIM1#
sub66991-60010
main66991-60010-B1i200208-200708
W(DUAL AIR CONDITIONER),STONE,TRIM1#
sub66991-60010
66991AHOLDER, QUARTER TRIM CUP, LH
main66990-60010-A0i199801-200208
IVORY,TRIM40,41
sub66990-60010
main66990-60010-A1i200208-200708
IVORY,TRIM0#
sub66990-60010
main66990-60010-B0i199801-200208
MD.GRAY,TRIM1#
sub66990-60010
main66990-60010-B1i200208-200708
STONE,TRIM1#
sub66990-60010
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-60040-A0i199801-200208
IVORY,TRIM40,41
sub67913-60041
main67913-60040-A1i200208-200612
IVORY,TRIM0#
sub67913-60041
main67913-60040-B0i199801-200208
MD.GRAY,TRIM1#
sub67913-60041
main67913-60040-B1i200208-200612
STONE,TRIM1#
sub67913-60041
main67913-60041-A1i200701-200708
IVORY,TRIM0#
sub67913-60042
main67913-60041-B1i200701-200708
STONE,TRIM1#
sub67913-60042
main67913-60070-A0i200010-200108
50TH ANNIVERSARY,IVORY,TRIM4#
67914BPLATE, FRONT DOOR SCUFF, LH
main67914-60030-A0i199801-200208
IVORY,TRIM40,41
sub67914-60031
main67914-60030-A1i200208-200612
IVORY,TRIM0#
sub67914-60031
main67914-60030-B0i199801-200208
MD.GRAY,TRIM1#
sub67914-60031
main67914-60030-B1i200208-200612
STONE,TRIM1#
sub67914-60031
main67914-60031-A1i200701-200708
IVORY,TRIM0#
sub67914-60032
main67914-60031-B1i200701-200708
STONE,TRIM1#
sub67914-60032
main67914-60060-A0i200010-200108
50TH ANNIVERSARY,IVORY,TRIM4#
67917CPLATE, REAR DOOR SCUFF, RH
main67917-60040-A0i199801-200208
IVORY,TRIM40,41
sub67917-60040
sub67917-60150
main67917-60040-A1i200208-200708
IVORY,TRIM0#
sub67917-60040
sub67917-60150
main67917-60040-B0i199801-200208
MD.GRAY,TRIM1#
sub67917-60040
sub67917-60150
main67917-60040-B1i200208-200708
STONE,TRIM1#
sub67917-60040
sub67917-60150
main67917-60070-A0i200010-200108
50TH ANNIVERSARY,IVORY,TRIM4#
sub67917-60070
67918BPLATE, REAR DOOR SCUFF, LH
main67918-60030-A0i199801-200208
IVORY,TRIM40,41
sub67918-60030
sub67918-60140
main67918-60030-A1i200208-200708
IVORY,TRIM0#
sub67918-60030
sub67918-60140
main67918-60030-B0i199801-200208
MD.GRAY,TRIM1#
sub67918-60030
sub67918-60140
main67918-60030-B1i200208-200708
STONE,TRIM1#
sub67918-60030
sub67918-60140
main67918-60060-A0i200010-200108
50TH ANNIVERSARY,IVORY,TRIM4#
sub67918-60060
67921ERETAINER, REAR DOOR SCUFF PLATE
main67921-22020i199905-200505
RED
main67921-22020i199808-199905
main67921-95501i199905-200505
YELLOW
main67921-95501i199801-199808
67921FRETAINER, FRONT DOOR SCUFF PLATE
main67921-22020i199905-200612
RED
main67921-22020i199808-199905
main67921-95501i199905-200612
YELLOW
main67921-95501i199801-199808
67923CCLAMP, DOOR SCUFF PLATE, NO.1
main67923-30030i199801-200505
7152
7456
6777189104WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-89104
9016440105
main90164-40105
9016840068
main90168-40068
9018305016
main90183-05016
9018306044
main90183-06044
9046710161
main90467-10161
9046805125
main90468-05125
9095001851B2
main90950-01851B2
9324056014
main93240-56014
9356016016
main93560-16016
9356815012
main93568-15012
9356855014
main93568-55014

57 parts on this diagram · 3 diagrams in section

INSIDE TRIM BOARD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
