CONSOLE BOX & BRACKET

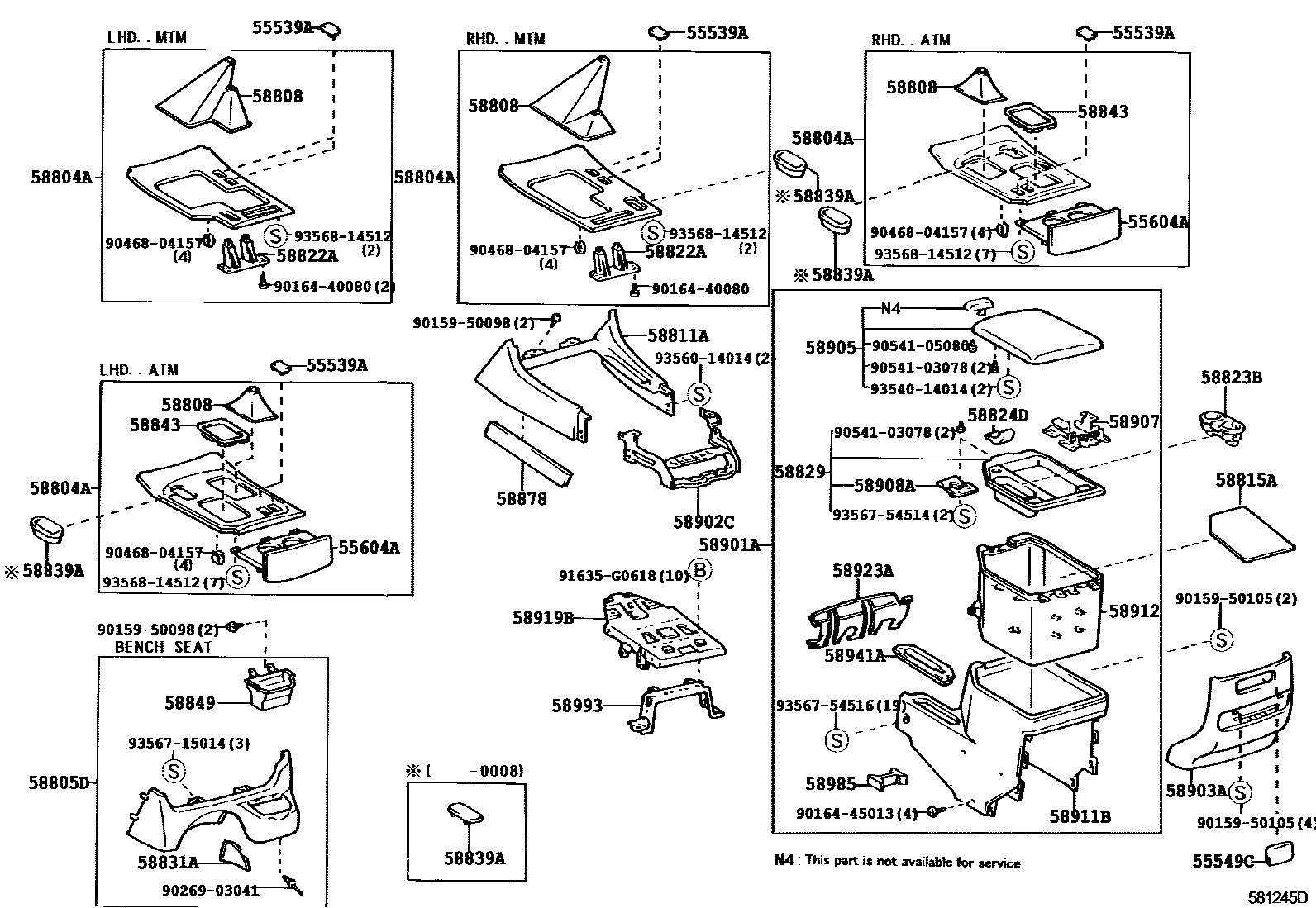

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-60020-C0i199801-200208
BLACK,TRIM1#,40,41
main55539-60020-C0i200008-200505
BLACK,TRIM1#
main55539-60020-C0i200208-200708
BLACK,TRIM0#,1#
55549CCOVER, REAR COOLER SWITCH HOLE
main55549-60030-A0i200008-200208
IVORY,TRIM40,41
main55549-60030-A0i200001-200008
IVORY,TRIM4#
main55549-60030-A1i200208-200708
IVORY,TRIM0#
main55549-60030-B1i200001-200208
MD.GRAY,TRIM1#
main55549-60030-B2i200208-200708
STONE,TRIM1#
55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
main55604-60050i199801-199907
main55604-60060i199907-200208
main55604-60061i200208-200510
main55604-60062i200511
main55604-60070i199907-200208
main55604-60071i200208-200510
main55604-60072i200511
main55604-60080i199801-199907
main55604-60090i199801-199907
WOOD LIKE PACKAGE
main55604-60120i199907-200208
WOOD LIKE PACKAGE
main55604-60121i200208-200510
WOOD GRAIN
main55604-60122i200511
WOOD GRAIN
main55604-60130i200010-200108
50TH ANNIVERSARY
main55604-60140i200010-200108
50TH ANNIVERSARY
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-60080i199801-200208
main58804-60081i200208-200505
main58804-60100i199801-199907
main58804-60101i199907-200208
main58804-60102i200208-200505
main58804-60110i199801-200208
main58804-60111i200208-200505
main58804-60120i199801-200208
WOOD LIKE PACKAGE
main58804-60121i200208-200505
WOOD GRAIN
main58804-60130i199801-199907
main58804-60131i199907-200208
main58804-60132i200208-200505
main58804-60140i199801-199907
WOOD LIKE PACKAGE
main58804-60141i199907-200208
WOOD LIKE PACKAGE
main58804-60142i200208-200505
WOOD GRAIN
main58804-60190i200010-200108
50TH ANNIVERSARY
main58804-60200i200010-200108
50TH ANNIVERSARY
main58804-60210i200010-200108
50TH ANNIVERSARY
58805DCOVER SUB-ASSY, TRANSFER LEVER HOLE
main58805-60040-A0i199801-200108
IVORY,TRIM40,41
main58805-60040-A0i200108-200208
IVORY,TRIM4#
main58805-60040-B1i199801-200208
MD.GRAY,TRIM1#
main58805-60070-A0i200208-200708
IVORY,TRIM0#
main58805-60070-B0i200208-200708
STONE,TRIM1#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-60120i199801-200505
main58808-60130i199801-200505
main58808-60140i199801-200505
58811ABOX, CONSOLE, FRONT
main58811-60180-A0i199801-200208
IVORY,TRIM40,41
main58811-60180-B1i199801-200208
MD.GRAY,TRIM1#
main58811-60210-A0i200208-200708
IVORY,TRIM0#
main58811-60210-B0i200208-200708
STONE,TRIM1#
58815ACARPET, CONSOLE BOX
main58815-60020i199801-200505
main58815-60030i199801-200505
main58815-60040i199801-200505
W(CD AUTO CHANGER)
main58815-60050i199801-200505
W(CD AUTO CHANGER)
58822APANEL, CONSOLE, UPPER REAR
main58822-60010i199801-200505
58823BBOX, CONSOLE COMPARTMENT
main58803-60020i199801-200505
58824DBOX, CONSOLE COIN
main58824-60010i199801-200505
58829POCKET, CONSOLE BOX
main58806-60030i199801-200505
main58806-60040i199801-200505
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
main58831-60010-A0i199801-200208
IVORY,TRIM40,41
main58831-60010-A1i200208-200708
IVORY,TRIM0#
main58831-60010-B0i199801-200208
MD.GRAY,TRIM1#
main58831-60010-B2i200208-200708
STONE,TRIM1#
58839ACOVER, CONSOLE BOX HOLE
main58839-60020i199801-200008
main58839-60030i200008-200209
main58839-60040i200209-200505
58843BEZEL, SHIFTING HOLE
main58843-60010i199801-200208
main58843-60050i200208-200505
58849COVER, CONSOLE BOX HOLE, NO.2
main58849-60030i199801-200505
58878PAD, CONSOLE BOX SILENCER, NO.4
main58878-60040i199801-200505
58901ABOX SUB-ASSY, CONSOLE, REAR
main58081-60010-A0i200208-200212
IVORY,TRIM0#
main58081-60010-B0i200208-200212
STONE,TRIM1#
main58081-60011-A0i200212-200708
IVORY,TRIM0#
main58081-60011-B0i200212-200708
STONE,TRIM1#
main58081-60020-A0i200208-200212
W(CD AUTO CHANGER),IVORY,TRIM0#
main58081-60020-B0i200208-200212
W(CD AUTO CHANGER),STONE,TRIM1#
main58081-60021-A0i200212-200708
W(CD AUTO CHANGER),IVORY,TRIM0#
main58081-60021-B0i200212-200708
W(CD AUTO CHANGER),STONE,TRIM1#
main58081-60030-A0i200208-200212
IVORY,TRIM0#
main58081-60030-B0i200208-200212
STONE,TRIM1#
main58081-60031-A0i200212-200708
IVORY,TRIM0#
main58081-60031-B0i200212-200708
STONE,TRIM1#
main58081-60050-A0i200208-200212
W(CD AUTO CHANGER),IVORY,TRIM0#
main58081-60050-B0i200208-200212
W(CD AUTO CHANGER),STONE,TRIM1#
main58081-60051-A0i200212-200708
W(CD AUTO CHANGER),IVORY,TRIM0#
main58081-60051-B0i200212-200708
W(CD AUTO CHANGER),STONE,TRIM1#
main58901-60240-A0i199801-200208
W(CD AUTO CHANGER),IVORY,TRIM4#
main58901-60240-A0i200010-200108
W(CD AUTO CHANGER),IVORY,TRIM40,41
main58901-60240-B0i199801-200208
W(CD AUTO CHANGER),MD.GRAY,TRIM1#
main58901-60250-A0i199801-200208
LEATHER PACKAGE & W(CD AUTO CHANGER),IVORY,TRIM40,41
main58901-60250-B0i199801-200208
LEATHER PACKAGE & W(CD AUTO CHANGER),MD.GRAY,TRIM1#
main58901-60270-A0i200010-200108
50TH ANNIVERSARY & W(CD AUTO CHANGER),IVORY,TRIM4#
main58901-60280-A0i199801-200208
IVORY,TRIM4#
main58901-60280-A0i200010-200108
IVORY,TRIM40,41
main58901-60280-B1i199801-200208
MD.GRAY,TRIM1#
main58901-60290-A0i199801-200208
LEATHER PACKAGE,IVORY,TRIM4#
main58901-60290-B0i199801-200208
LEATHER PACKAGE,MD.GRAY,TRIM1#
main58901-60300-A0i200010-200108
W(CD AUTO CHANGER),IVORY,TRIM40,41
main58901-60300-A0i199801-200208
W(CD AUTO CHANGER),IVORY,TRIM4#
main58901-60300-B0i199801-200208
W(CD AUTO CHANGER),MD.GRAY,TRIM1#
main58901-60310-A0i199801-200208
LEATHER PACKAGE & W(CD AUTO CHANGER),IVORY,TRIM4#
main58901-60310-B0i199801-200208
LEATHER PACKAGE & W(CD AUTO CHANGER),MD.GRAY,TRIM1#
main58901-60320-A0i200010-200108
50TH ANNIVERSARY & W(CD AUTO CHANGER),IVORY,TRIM4#
main58901-60330-A0i199801-200208
IVORY,TRIM40,41
main58901-60330-B1i199801-200208
MD.GRAY,TRIM1#
main58901-60340-A0i199801-200208
LEATHER PACKAGE,IVORY,TRIM40,41
main58901-60340-B0i199801-200208
LEATHER PACKAGE,MD.GRAY,TRIM1#
main58901-60360-A0i200010-200108
50TH ANNIVERSARY,IVORY,TRIM4#
main58901-60510-A0i200010-200108
50TH ANNIVERSARY,IVORY,TRIM4#
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
main58902-60030i199801-200505
main58902-60050i199801-200505
58903APANEL SUB-ASSY, CONSOLE REAR END
main58903-60010-A0i199801-200208
IVORY,TRIM40,41
main58903-60010-A1i200208-200708
IVORY,TRIM0#
main58903-60010-B1i199801-200208
MD.GRAY,TRIM1#
main58903-60010-B2i200208-200708
STONE,TRIM1#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-60070-A0i200008-200108
IVORY,TRIM4#
main58905-60070-A0i199801-200208
IVORY,TRIM40,41
main58905-60070-A1i200208-200212
IVORY,TRIM0#
main58905-60070-B1i199801-200208
MD.GRAY,TRIM1#
main58905-60070-B2i200208-200212
STONE,TRIM1#
main58905-60071-A1i200212-200708
IVORY,TRIM0#
main58905-60071-B2i200212-200708
STONE,TRIM1#
main58905-60080-A0i199801-200208
LEATHER PACKAGE,IVORY,TRIM40,41
main58905-60080-A1i200208-200212
LEATHER PACKAGE,IVORY,TRIM0#
main58905-60080-B0i199801-200208
LEATHER PACKAGE,MD.GRAY,TRIM1#
main58905-60080-B1i200208-200212
LEATHER PACKAGE,STONE,TRIM1#
main58905-60081-A1i200212-200505
LEATHER PACKAGE,IVORY,TRIM0#
main58905-60081-A1i200505-200708
LEATHER,IVORY,TRIM0#
main58905-60081-B1i200212-200505
LEATHER PACKAGE,STONE,TRIM1#
main58905-60081-B1i200505-200708
LEATHER,STONE,TRIM1#
main58905-60090-A0i200010-200108
50TH ANNIVERSARY,IVORY,TRIM4#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-60040i199801-200212
main58907-60041i200212-200505
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-32050i199801-200505
58911BPANEL, BOX, NO.1
main58911-60080-A0i199801-200208
IVORY,TRIM40,41
main58911-60080-A1i200208-200708
IVORY,TRIM0#
main58911-60080-B1i199801-200208
MD.GRAY,TRIM1#
main58911-60080-B2i200208-200708
STONE,TRIM1#
main58911-60090-A0i199801-200208
IVORY,TRIM40,41
main58911-60090-A1i200208-200708
IVORY,TRIM0#
main58911-60090-B1i199801-200208
MD.GRAY,TRIM1#
main58911-60090-B2i200208-200708
STONE,TRIM1#
58912BOX, REAR CONSOLE, NO.2
main58912-60020i199801-200505
main58912-60030i199801-200208
W(CD AUTO CHANGER)
main58912-60031i200208-200505
W(CD AUTO CHANGER)
main58912-60040i199801-200505
main58912-60060i199801-200505
W(CD AUTO CHANGER)
58919BPLATE, CONSOLE BOX
main58919-60020i199801-200505
main58919-60030i199801-200505
W(CD AUTO CHANGER)
main58919-60040i199801-199905
W(CD AUTO CHANGER)
58923APANEL, CONSOLE REAR END
main58903-60010-A0i199801-200208
IVORY,TRIM4#
main58903-60010-B1i199801-200208
MD.GRAY,TRIM1#
main58923-60020i199801-200505
W(CAPTAIN SEAT)
main58923-60020i200505
main58923-60030i199801-200505
58941ACOVER, PARKING BRAKE HOLE
main58941-60030i199801-200505
main58941-60040i199801-200505
58985RETAINER, CONSOLE BOX
main58985-60060i199902-200505
58993BRACKET, CONSOLE BOX MOUNTING, REAR
main58993-60030i199801-200505
main58993-60040i199801-199803
W(CD AUTO CHANGER)
9015950098
main90159-50098
9015950105
main90159-50105
9016440080
main90164-40080
9016445013
main90164-45013
9026903041
main90269-03041
9046804157
main90468-04157
9054103078
main90541-03078
9054105080
main90541-05080
91635G0618
main91635-G0618
9354014014
main93540-14014
9356014014
main93560-14014
9356715014
main93567-15014
9356754514
main93567-54514
9356754516
main93567-54516
9356814512
main93568-14512

45 parts on this diagram · 2 diagrams in section
