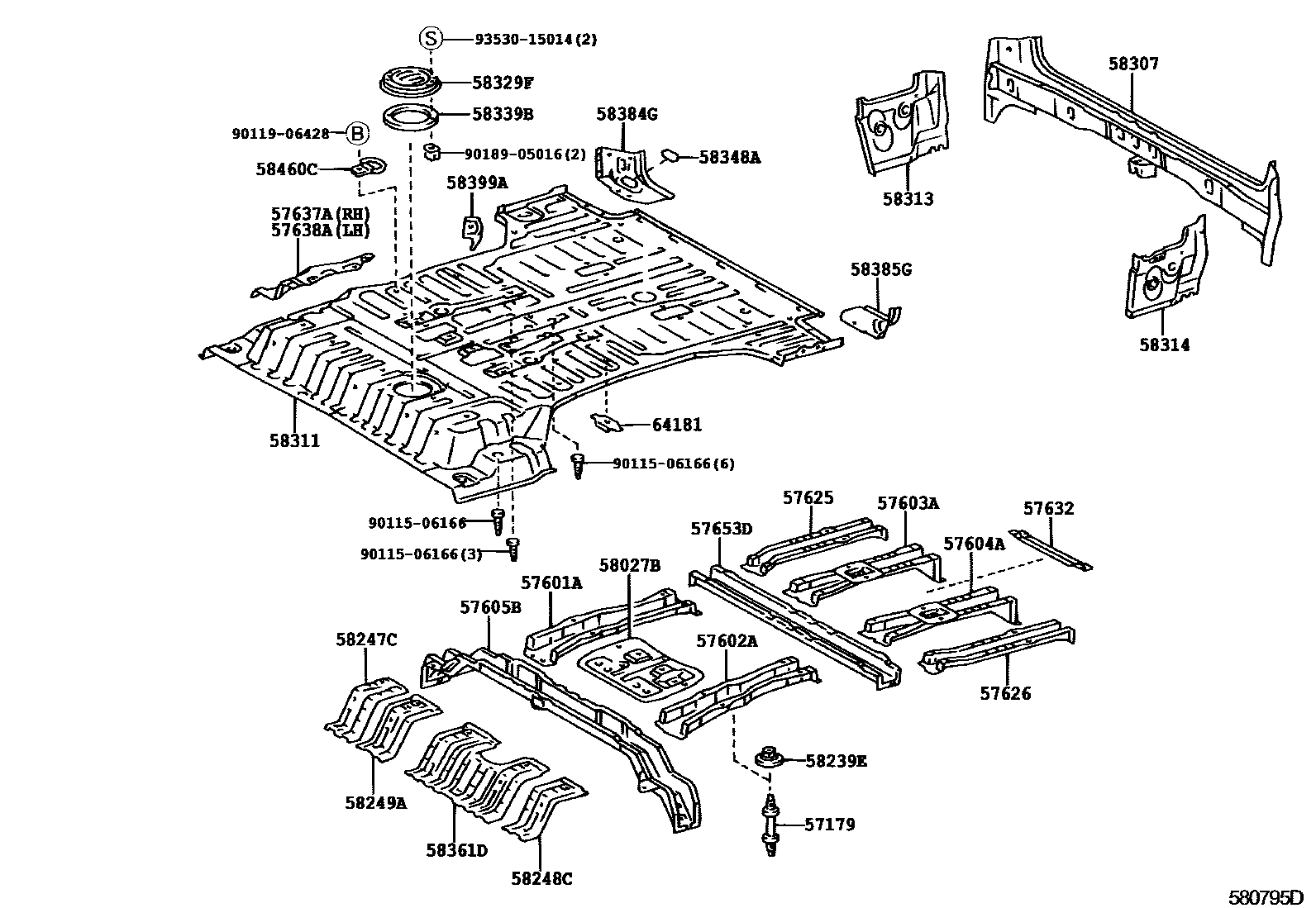

REAR FLOOR PANEL & REAR FLOOR MEMBER
57179BOLT, FLOOR CROSSMEMBER
57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
W(TRANSVERSE THIRD SEAT)
57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH
W(TRANSVERSE THIRD SEAT)
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
W(TRANSVERSE THIRD SEAT)
NEW ZEALAND SPEC & W(TRANSVERSE THIRD SEAT)
W(TRANSVERSE THIRD SEAT)
W(TRANSVERSE THIRD SEAT)
NEW ZEALAND SPEC
NEW ZEALAND SPEC
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
NEW ZEALAND SPEC & W(TRANSVERSE THIRD SEAT)
W(TRANSVERSE THIRD SEAT)
W(TRANSVERSE THIRD SEAT)
NEW ZEALAND SPEC
NEW ZEALAND SPEC
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57625REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH
57626REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH
57632MEMBER, REAR FLOOR, CENTER NO.1
57637AREINFORCEMENT, REAR FLOOR SIDE, RH
57638AREINFORCEMENT, REAR FLOOR SIDE, LH
57653DMEMBER, REAR FLOOR CROSS, NO.2
58027BREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58239EPLATE, BELT ANCHOR NUT
58247CREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248CREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58249AREINFORCEMENT, REAR SEAT MOUNTING
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
W(DUAL AIR CONDITIONER & TRANSVERSE THIRD SEAT)
CHINA SPEC & W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER)
W(TRANSVERSE THIRD SEAT)
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58339BPACKING, REAR FLOOR SERVICE HOLE
58348ACOVER, REAR BODY MOUNTING SERVICE HOLE
58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58399ARETAINER, NO.3 SEAT BELT ANCHOR TO FLOOR
58460CSTRIKER ASSY, LUGGAGE HOLD BELT
64181REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR
NEW ZEALAND SPEC
9011506166
main90115-06166
9011906428
main90119-06428
9018905016
main90189-05016
9353015014
main93530-15014
34 parts on this diagram · 2 diagrams in section
