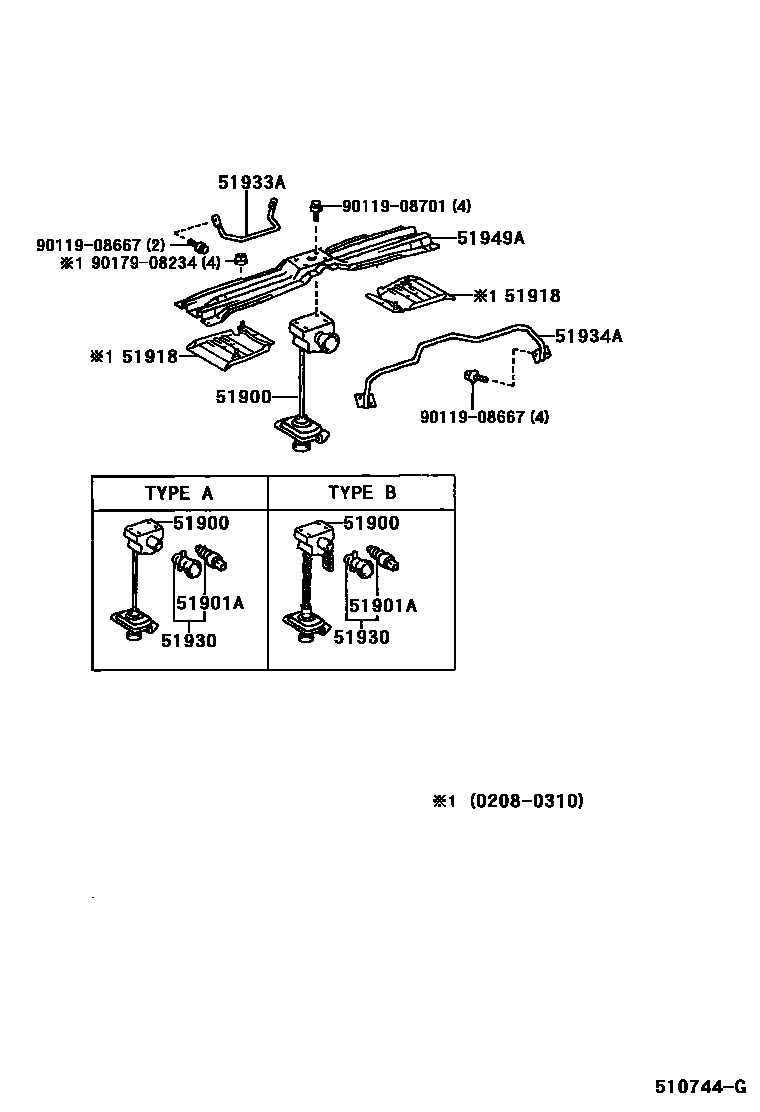

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-60190iHDJ100,UZJ100199801-199808

main51900-60191iHDJ100..STD200008-200109

main51900-60240iHDJ100..RHD..4FC199801-199808

W(LOCK)

main51900-60241iHDJ100,UZJ100199907-200109

TYPE A:REFER TO ILLUSTRATION & W(LOCK)

main51900-60242iHDJ100,UZJ100..VX200111-200208

TYPE A:REFER TO ILLUSTRATION & W(LOCK)

main51900-60243iHDJ100,UZJ100200505

TYPE A:REFER TO ILLUSTRATION

main51900-60260iHDJ100..STD200109-200208

TYPE B:REFER TO ILLUSTRATION & W/O(LOCK)

main51900-60261iHDJ100..STD200310-200505

TYPE B:REFER TO ILLUSTRATION & W/O(LOCK)

main51900-60270iHDJ100,UZJ100200208-200505

TYPE B:REFER TO ILLUSTRATION & W(LOCK)

51901AKEY SUB-ASSY, SPARE WHEEL CARRIER

main51901-0W010×2iHDJ100,UZJ100200505-200708

51918BRACKET, SPARE WHEEL STOPPER

main51918-60020×2iUZJ100;HDJ100..4FC,5F200208-200310

main51918-60030×2iUZJ100;HDJ100..(4FC,5F)..VX200208-200310

STANDARD USE(ALUMINUM) = SPARE TIRE(275/60R18)

51930LOCK ASSY, SPARE WHEEL CARRIER

main51930-0W010iHDJ100..RHD..4FC199801-199808

main51930-0W011iHDJ100,UZJ100200608-200708

51933ASTOPPER, SPARE WHEEL, NO.1

main51933-60140iHDJ100,UZJ100199801-200208

main51933-60141iHDJ100,UZJ100200208-200505

51934ASTOPPER, SPARE WHEEL, NO.2

main51904-60040iHDJ100,UZJ100199801-199912

main51904-60041iHDJ100,UZJ100199912-200208

main51904-60061iHDJ100,UZJ100200208-200505

51949ACROSSMEMBER, SPARE WHEEL CARRIER

main51281-60110iHDJ100,UZJ100199801-200208

main51281-60111iHDJ100,UZJ100200310-200505

9011908667

main90119-08667

9011908701

main90119-08701

9017908234

main90179-08234

10 parts on this diagram · 1 diagram in section
