STEERING COLUMN & SHAFT

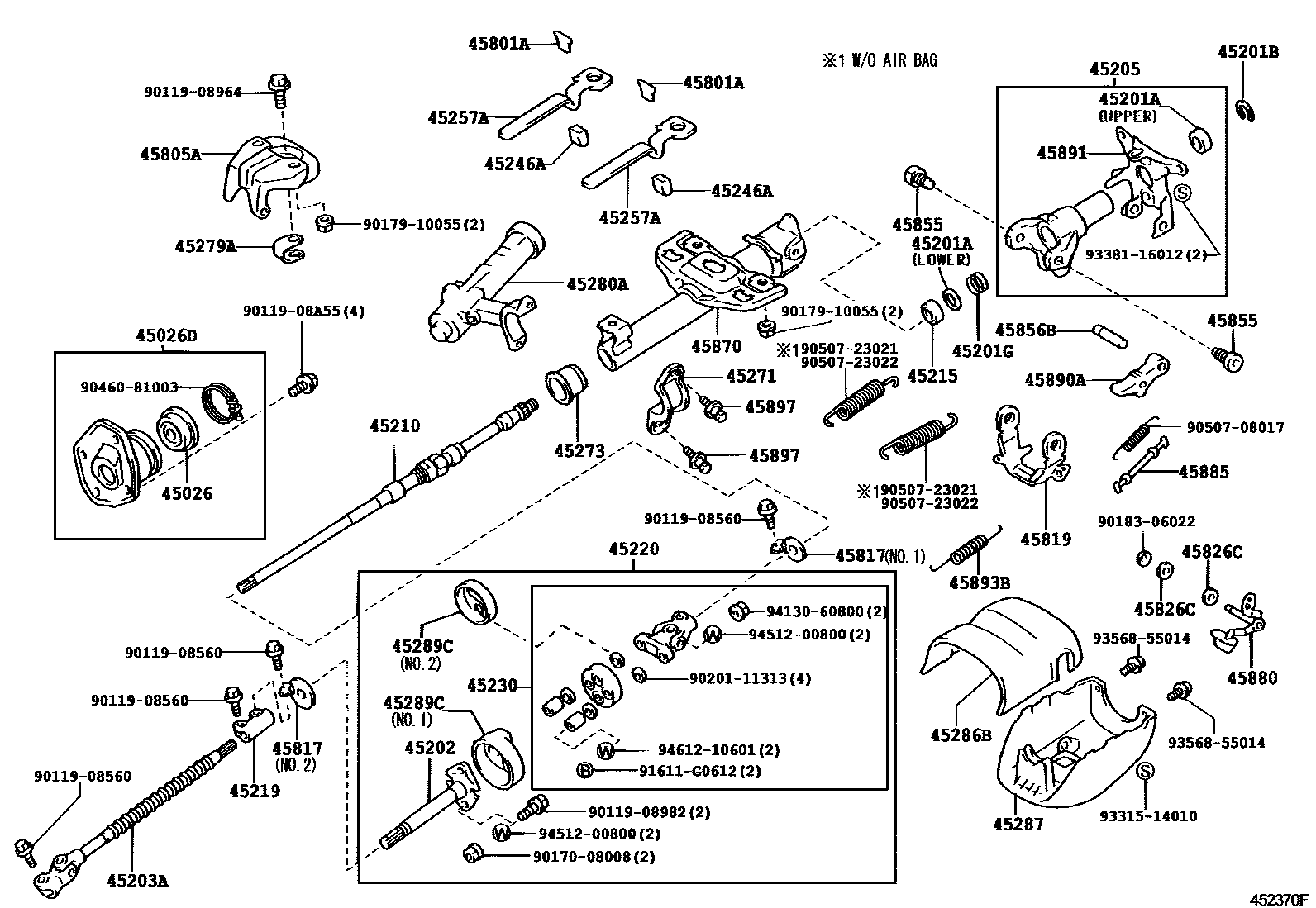

Parts diagram
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
main45026-60010i199801-200505
45026DCOVER SUB-ASSY, STEERING COLUMN HOLE
main45025-60090i199801-200505
main45025-60100i199801-200505
main45025-60140i200208-200505
W(*VGRS)
main45025-60150i200208-200505
W(*VGRS)
45201ABEARING(FOR STEERING MAIN SHAFT)
main90363-18005i199801-200505
LOWER
main90363-18009i199801-200505
UPPER
main90363-18012i200505
W(POWER TILT STEERING),LOWER
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
main45263-60040i200208-200708
T=0.5,W(POWER TILT STEERING) & W(*VGRS),LOWER
main90520-17042i200008-200708
T=1.20,MANUAL TILT STEERING
main90520-17042i199801-200708
T=1.20,W(POWER TILT STEERING),UPPER
main90905-20003i200208-200505
T=0.5,W(POWER TILT STEERING) & W/O(*VGRS),LOWER
main90905-20003i199801-200208
T=0.5,W(POWER TILT STEERING),LOWER
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
main90501-40017i199801-200505
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
main45202-60100i199801-200505
45203ASHAFT, STEERING INTERMEDIATE, NO.2
main45203-60090i199801-200505
main45203-60110i200208-200505
W(*VGRS)
45205TUBE SUB-ASSY, STEERING COLUMN
main45205-60170i199801-200505
45210SHAFT ASSY, STEERING MAIN
main45210-60090i199801-200212
main45210-60091i200212-200505
main45210-60100i199801-200201
W(POWER TILT STEERING)
main45210-60101i200201-200708
W(POWER TILT STEERING)
main45210-60190i200208-200708
W(MANUAL TILT STEERING & *VGRS)
45215COLLAR, MAIN SHAFT BEARING THRUST
main45215-12010i199801-200505
45219YOKE, STEERING SLIDING
main45219-60080i199801-200505
45220SHAFT ASSY, STEERING INTERMEDIATE
main45220-60110i199801-200505
main45220-60180i200208-200211
W(*VGRS)
main45220-60200i200211-200310
W(*VGRS)
main45220-60201i200310-200701
W(*VGRS)
main45220-60202i200702
W(*VGRS)
45230COUPLING ASSY, FLEXIBLE
main45230-60030i199801-200505
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
main45246-12110i199801-200311
main45246-50040i200311-200505
main45246-50040i200006-200311
W(POWER TILT STEERING)
45257APLATE, STEERING COLUMN ENERGY ABSORBING
main45257-12070i199801-200505
45271CLAMP, STEERING COLUMN, UPPER
main45271-12060i199801-200505
main45271-60030i199801-200505
W(POWER TILT STEERING)
45273BUSH, STEERING MAIN SHAFT
main45273-33030i199801-200505
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
main45279-33030i199801-200505
45280ABRACKET ASSY, STEERING COLUMN, UPPER
main45280-60470i200008-200208
MANUAL TILT STEERING & W/O(AIR BAG)
main45280-60480i199801-200208
main45280-60500i199801-200208
W(POWER TILT STEERING)
main45280-60580i200208-200505
main45280-60590i200407-200505
main45280-60600i200208-200505
W(POWER TILT STEERING)
main45280-60610i200407-200505
W(POWER TILT STEERING)
45286BCOVER, STEERING COLUMN, UPR
main45286-60340-B0i199801-200208
SHADOW GRAY,TRIM1#
main45286-60340-B1i200208-200708
DK.GRAY,TRIM1#
main45286-60340-E0i199801-200208
OAK,TRIM4#
main45286-60340-E1i200208-200708
SANDAL WOOD,TRIM0#
45287COVER, STEERING COLUMN, LWR
main45287-60330-B0i199801-200202
W(MANUAL TILT STEERING),SHADOW GRAY,TRIM1#
main45287-60330-B0i200008-200202
SHADOW GRAY,TRIM1#
main45287-60330-E0i199801-200202
W(MANUAL TILT STEERING),OAK,TRIM4#
main45287-60331-B0i200202-200208
W(MANUAL TILT STEERING),SHADOW GRAY,TRIM1#
main45287-60331-B0i200202-200208
W(MANUAL TILT STEERING),SHADOW GRAY,TRIM1#,40
main45287-60331-B1i200208-200505
DK.GRAY,TRIM1#
main45287-60331-B1i200208-200708
W(MANUAL TILT STEERING),DK.GRAY,TRIM1#
main45287-60331-E0i200202-200208
W(MANUAL TILT STEERING),OAK,TRIM41
main45287-60331-E1i200208-200708
W(MANUAL TILT STEERING),SANDAL WOOD,TRIM0#
main45287-60340-B0i199801-200202
W(POWER TILT STEERING),SHADOW GRAY,TRIM1#
main45287-60340-E0i199801-200202
W(POWER TILT STEERING),OAK,TRIM4#
main45287-60341-B0i200202-200208
W(POWER TILT STEERING),SHADOW GRAY,TRIM1#,41
main45287-60341-B1i200208-200708
W(POWER TILT STEERING),DK.GRAY,TRIM1#
main45287-60341-E0i200202-200208
W(POWER TILT STEERING),OAK,TRIM40
main45287-60341-E1i200208-200708
W(POWER TILT STEERING),SANDAL WOOD,TRIM0#
main45287-60341-E1i200208-200505
SANDAL WOOD,TRIM0#
45289CCOVER, STEERING COLUMN, LWR NO.2
main45289-60020i199801-200505
NO.1
main45289-60030i199801-199806
NO.2
main45289-60031i199806-200505
NO.2
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
main45875-12010i199801-200505
45805ASUPPORT SUB-ASSY, TILT STEERING
main45805-60010i199801-200505
main45805-60020i200208-200708
W(*VGRS)
45817STOPPER, STEERING SHAFT THRUST
main45808-60010i200208-200708
W(*VGRS),NO.2
main45817-60020i199801-200208
NO.1 & NO.2
main45817-60020i200208-200708
NO.1
main45817-60040i200208-200708
NO.2
45819RETAINER, TILT LEVER
main45819-60010i199801-200505
45826CBUSH(FOR STEERING TILT LEVER)
main90389-08120i199801-200505
45855BOLT, TILT STEERING, NO.1
main45855-35010i199801-200505
OD=10
main45855-60010i199801-200505
OD=11.993-11.979
45856BSHAFT, T1LT STEERING, NO.2
main45856-42010i199801-200505
main45856-60010i199801-200505
W(POWER TILT STEERING)
45870TUBE ASSY, STEERING COLUMN
main45870-60130i199801-200505
main45870-60150i200008-200505
MANUAL TILT STEERING & W/O(AIR BAG)
main45870-60160i199801-200505
W(POWER TILT STEERING)
45880LEVER ASSY, STEERING TILT
main45880-60030i199801-200505
45885LINK, TILT LEVER
main45885-35010i199801-200505
45890APAWL ASSY, TILT STEERING
main45890-35010i199801-200505
45891BRACKET, TURN SIGNAL
main45891-60030i199801-200505
main45891-60040i199801-200505
W(POWER TILT STEERING)
45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)
main90905-07013i199801-200505
45897BOLT, STEERING LOCK SET
main45897-12020i199812-200505
main45897-60010i199801-199812
9011908560
main90119-08560
9011908964
main90119-08964
9011908982
main90119-08982
9011908A55
main90119-08A55
9017008008
main90170-08008
9017910055
main90179-10055
9018306022
main90183-06022
9020111313
main90201-11313
9046081003
main90460-81003
9050708017
main90507-08017
9050723021
main90507-23021
9050723022
main90507-23022
91611G0612
main91611-G0612
9331514010
main93315-14010
9338116012
main93381-16012
9356855014
main93568-55014
9413060800
main94130-60800
9451200800
main94512-00800
9461210601
main94612-10601

55 parts on this diagram · 6 diagrams in section
