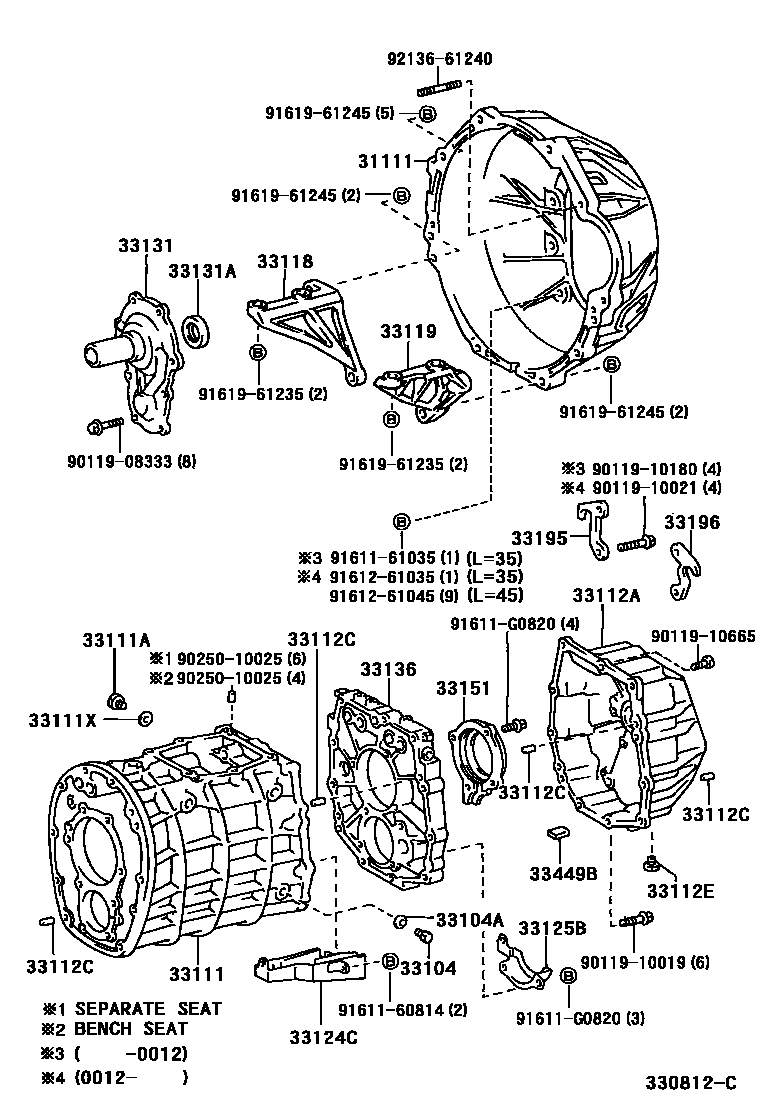

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
BENCH SEAT TYPE
BENCH SEAT TYPE
SEPARATE SEAT TYPE
SEPARATE SEAT TYPE
BENCH SEAT TYPE
SEPARATE SEAT TYPE
33111APLUG, MANUAL TRANSMISSION CASE
33111XGASKET, TRANSMISSION CASE PLUG
33112AADAPTER, TRANSFER
SEPARATE SEAT TYPE
BENCH SEAT TYPE
BENCH SEAT TYPE
33112CPIN, STRAIGHT(FOR TRANSFER ADAPTER)
33112EPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)
33118PLATE, STIFFENER, RH(MTM)
33119PLATE, STIFFENER, LH(MTM)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33125BRECEIVER, MANUAL TRANSMISSION CASE
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33136PLATE, TRANSMISSION INTERMEDIATE
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33195HANGER, TRANSMISSION CASE, NO.1
33196HANGER, TRANSMISSION CASE, NO.2
33449BMAGNET, TRANSMISSION
9011908333
main90119-08333
9011910019
main90119-10019
9011910021
main90119-10021
9011910180
main90119-10180
9011910665
main90119-10665
9025010025
main90250-10025
9161160814
main91611-60814
9161161035
main91611-61035
91611G0820
main91611-G0820
9161261035
main91612-61035
9161261045
main91612-61045
9161961235
main91619-61235
9161961245
main91619-61245
9213661240
main92136-61240
34 parts on this diagram · 1 diagram in section
