EXHAUST GAS RECIRCULATION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

25601PIPE SUB-ASSY, EGR, NO.1

main25601-17010i1HDFTE..HDJ100199801-200107

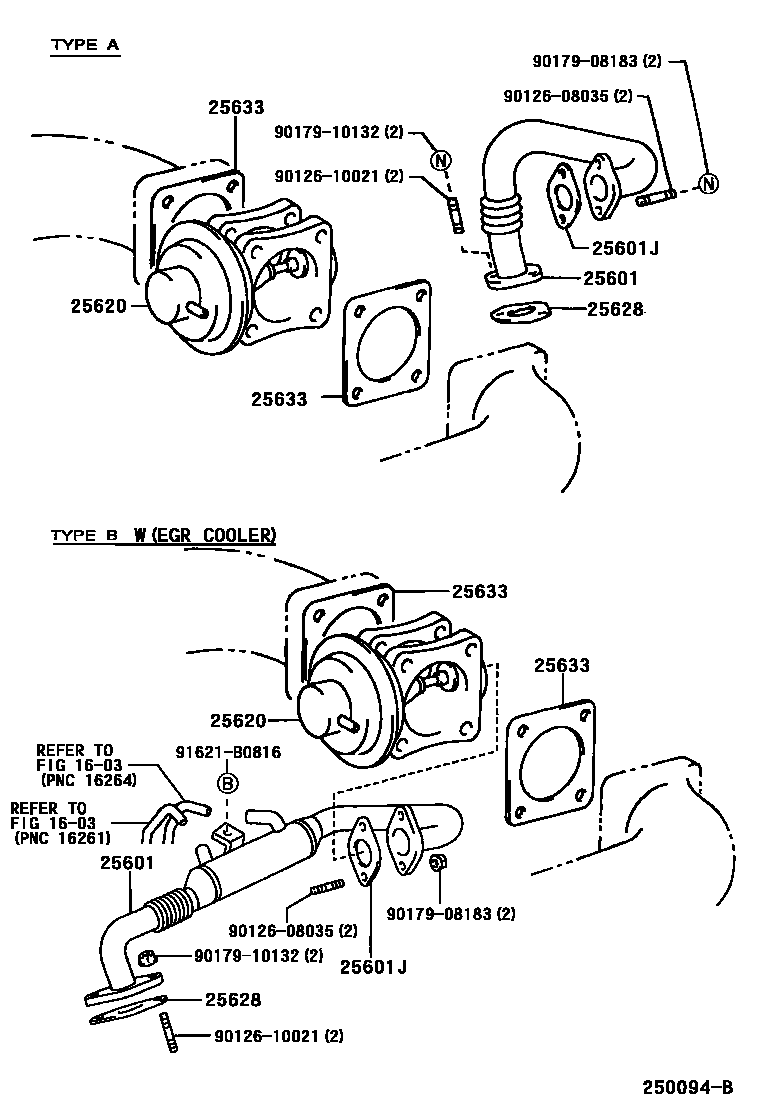

TYPE A:REFER TO ILLUSTRATION

main25601-17011i1HDFTE..HDJ100..LHD200107-200208

TYPE A:REFER TO ILLUSTRATION

main25601-17050i1HDFTE..HDJ100..VX200107-200208

TYPE B:REFER TO ILLUSTRATION

25601JGASKET(FOR EGR PIPE, NO.1)

main25634-17010i1HDFTE..HDJ100..5F,5FC200208-200505

25620VALVE ASSY, EGR

main25620-17020i1HDFTE..HDJ100199801-200208

25628GASKET, EGR INLET

main25628-17010i1HDFTE..HDJ100199801-200208

25633GASKET, EGR VALVE

main25633-17010×2i1HDFTE..HDJ100199801-200108

TYPE A:REFER TO ILLUSTRATION

main25633-17020×2i1HDFTE..HDJ100200108-200208

TYPE B:REFER TO ILLUSTRATION

9012608035

main90126-08035

9012610021

main90126-10021

9017908183

main90179-08183

9017910132

main90179-10132

91621B0816

main91621-B0816

11 parts on this diagram · 1 diagram in section
