IGNITION COIL & SPARK PLUG / GLOW PLUG

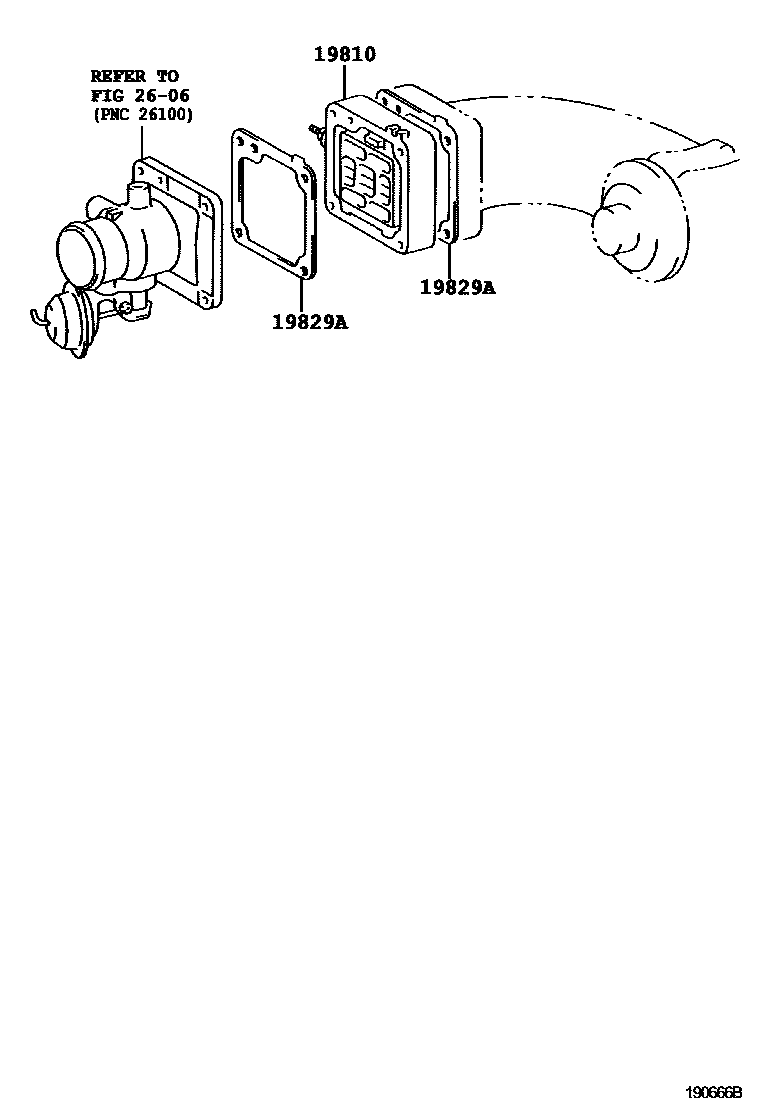

Parts diagram

19810HEATER ASSY, INTAKE

main19810-17010i199801-199811

main19810-17011i199811-200108

main19810-17030i200108-200208

19829AGASKET, INTAKE HEATER

main19829-17010×2i199801-200208

2606

3 parts on this diagram · 2 diagrams in section
