EXHAUST PIPE

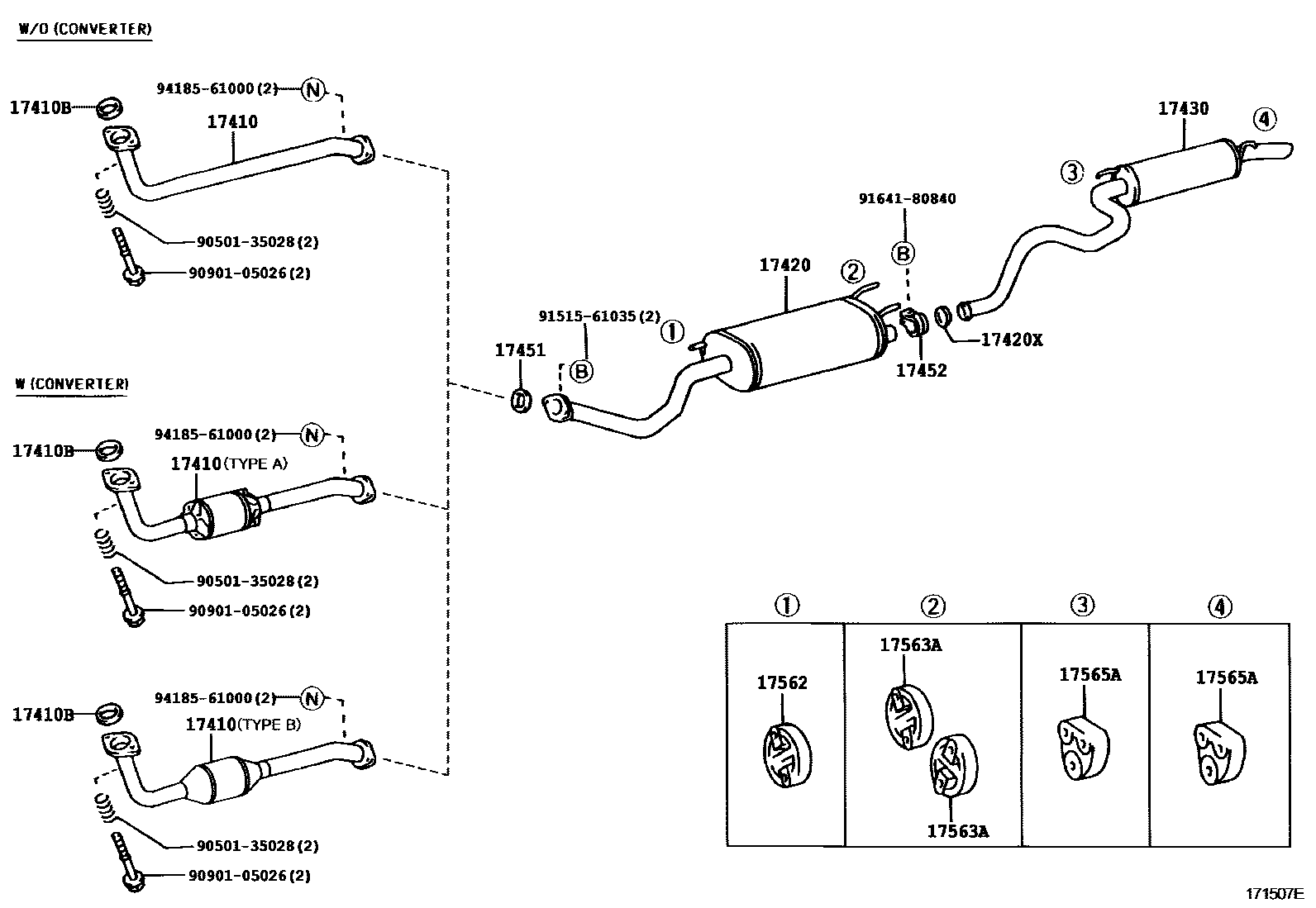

Parts diagram

17410PIPE ASSY, EXHAUST, FRONT

main17401-17150i200505

*114=TOYOTA/M06/N,TYPE A:REFER TO ILLUSTRATION

main17401-17160i200208-200501

W/O(CONVERTER)

main17401-17200i200208-200307

*114=TOYOTA/AD9/N,W(CONVERTER) & TYPE B:REFER TO ILLUSTRATION

main17410-50260×2i200108-200208

*115=TOYOTA/98-01/N

main17410-50350×2i200108-200208

*114=TOYOTA/HA2/Y

17410BGASKET, EXHAUST PIPE

main17451-67020i200208-200307

main90917-06065×2i200505

17420PIPE ASSY, EXHAUST, CENTER

main17403-17160i200505

W/O(EGR COOLER):FIG 25-01

main17403-17210i200208-200307

W(EGR COOLER):FIG 25-01

main17403-50150i199801-199810

main17403-50151i200208-200505

17420XGASKET, EXHAUST PIPE, CENTER

main17451-50050i199801-200208

17430PIPE ASSY, EXHAUST, TAIL

main17405-50030i200505

17451GASKET, EXHAUST PIPE

main90917-06045×3i200208-200505

main90917-06076i200307-200505

17452CLAMP, EXHAUST PIPE

main17452-50050i199801-200208

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-46040i200111-200208

NO.1

main17565-50100i199902-200111

NO.1

main17565-74280i200208-200505

NO.2; TURKEY SPEC;POLAND SPEC;SLOVENIA SPEC;HUNGARY SPEC

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-74280×2i200208-200307

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-13030×2i199801-200208

9050135028

main90501-35028

9090105026

main90901-05026

9151561035

main91515-61035

9164180840

main91641-80840

9418561000

main94185-61000

15 parts on this diagram · 4 diagrams in section
