CYLINDER HEAD

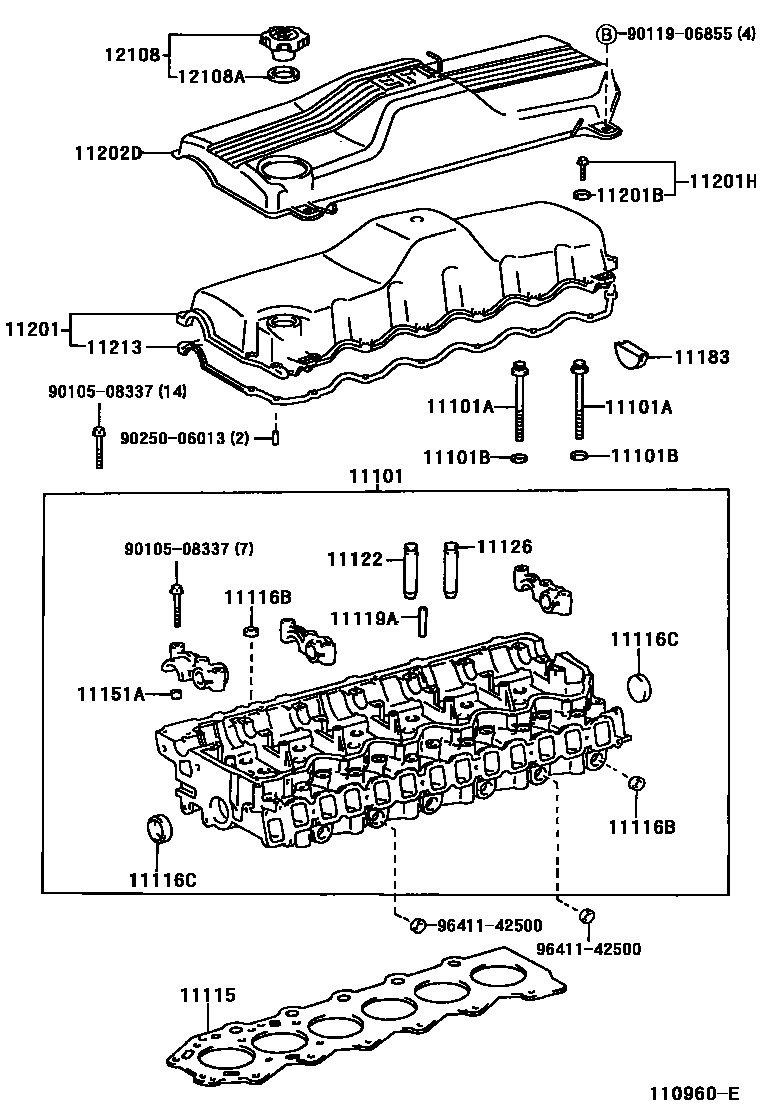

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-17042i199801-200108
sub11101-17043
main11101-17043i200108-200208
sub11101-17044
sub13711-17021
main11101-17044i200208-200505
main11101-59165i199801-200001
sub11101-59166
main11101-59166i200001-200005
sub11101-59167
sub13715-50060
main11101-59167i200005-200405
sub11101-59235
sub13715-50070
main11101-59167i200405-200409
PNC 13715=MARK U,M
sub11101-59235
sub13715-50070
main11101-59235i200409-200505
PNC 13715=MARK U,Y
main11101-59235i200505
11101ABOLT(FOR CYLINDER HEAD SET)
main90910-02096i199801-200505
L=133.5
main90910-02119i199801-200505
L=121.5
main90910-02132i199801-200505
sub90910-02178
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
main90201-10133i199801-200505
main90201-11032i199801-200505
11115GASKET, CYLINDER HEAD
main11115-17031-01i199801-200505
MARK 1,MARK 1
main11115-17031-01i200505
MARK 1
main11115-17031-03i199801-200505
MARK 3,MARK 3
main11115-17031-03i200505
MARK 3
main11115-17031-05i199801-200505
MARK 5,MARK 5
main11115-17031-05i200505
MARK 5
main11115-50050i199801-200407
sub11115-50080
main11115-50080i200407-200505
11116GASKET, CYLINDER HEAD, NO.2
main11116-50040i199801-200407
sub11116-50070
main11116-50070i200407-200505
11116BPLUG, TIGHT, NO.2
main96411-62500i199801-200505
11116CPLUG, TIGHT, NO.3
main96411-64000i199801-200505
11119APIN, STRAIGHT, NO.1
main90250-09007i199801-200505
L=53.5,OD=9
11122BUSH, INTAKE VALVE GUIDE
main11122-17010i199801-200505
STD
main11122-20020i199801-200208
STD,NO.1
sub11122-22040
main11122-20020i200208-200505
STD
sub11122-22040
main11123-17010i199801-200505
O/S 0.05
main11123-20020i199801-200505
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
main11122-17010i199801-200505
STD
main11123-17010i199801-200505
O/S 0.05
main11126-20020i199801-200505
STD
main11127-20020i199801-200505
O/S 0.05
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
main90253-10006i199801-200505
L=7,OD=10
main90253-11021i199801-200505
L=8,OD=11
11183PLUG, SEMICIRCULAR
main11183-50020i199801-200505
main11183-54011i199801-200505
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-50030i199801-200006
sub11201-50031
sub12262-0F021
sub12262-50070
sub12262-50080
sub90467-20010
main11201-50031i200006-200601
sub11201-50041
main11201-50041i200601-200708
main11210-17010i199801-200503
main11210-17011i200503-200505
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
main90209-08016i200010-200208
sub90901-19047
main90210-07001i199801-200708
main90902-02002i199801-200010
sub90901-19047
11201HBOLT(FOR CYLINDER HEAD COVER)
main90109-06163i199801-200505
main90901-19047i199801-200505
11202COVER SUB-ASSY, CYLINDER HEAD, LH
main11202-50040i199801-200208
sub11202-50041
sub12204-50030
main11202-50041i200208-200601
sub11202-50051
main11202-50051i200601-200702
sub11202-50080
main11202-50051i200702
NO MARK
sub11202-50080
main11202-50080i200702
MARK UZVL
11202DCOVER SUB-ASSY, CYLINDER HEAD, NO.2
main11202-17010i199801-200106
sub11202-17011
main11202-17011i200106-200308
main11202-17030i200108-200208
W(EGR COOLER):REFER TO FIG 25-01
sub11202-17011
main11202-17031i200208-200402
W(EGR COOLER):REFER TO FIG 25-01
sub11202-17032
main11202-17031i200307-200402
sub11202-17032
main11202-17032i200402-200505
11213GASKET, CYLINDER HEAD COVER
main11213-17030i199801-200505
main11213-50030i199801-200311
sub11213-50031
main11213-50031i200311-200505
12108CAP SUB-ASSY, OIL FILLER
main12180-50040i199801-200505
main12180-55010i199801-200505
12108AGASKET(FOR OIL FILLER CAP)
main12195-50010i199801-200505
main90430-37004i199801-200505
9010508337
main90105-08337
9011906855
main90119-06855
9025006013
main90250-06013
9641142500
main96411-42500
