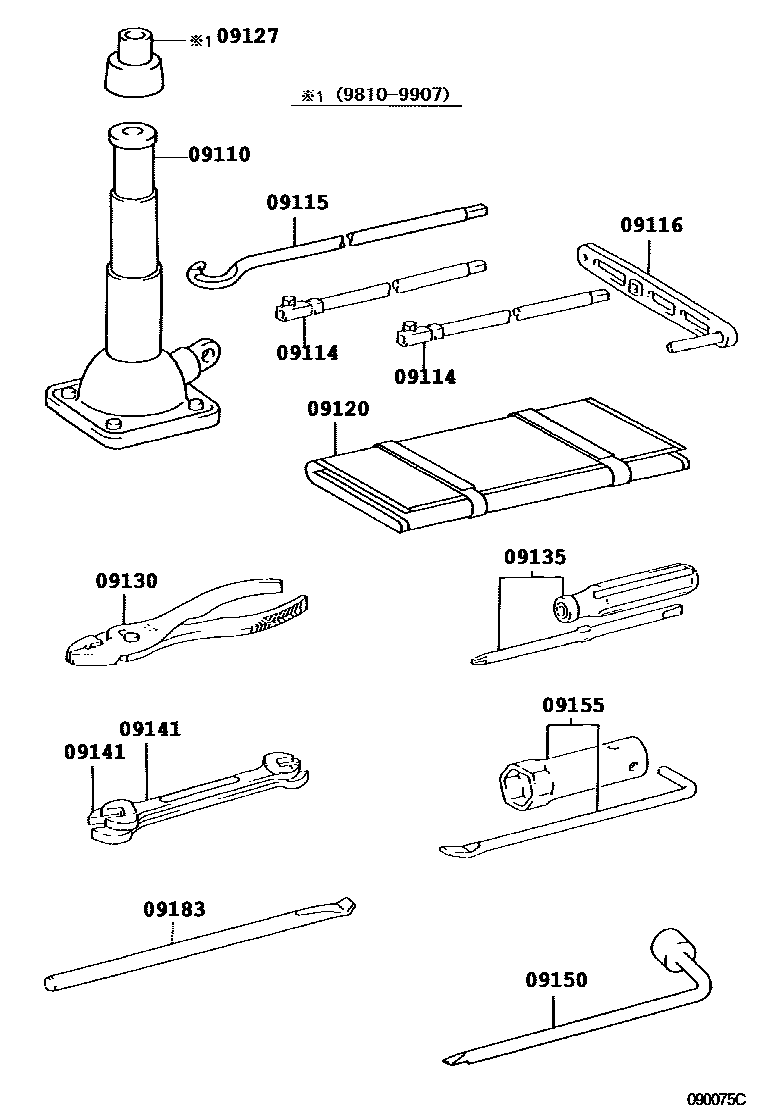

STANDARD TOOL

09110JACK ASSY

main09111-60080iHDJ100,UZJ100199801-199810

main09111-60081iHDJ100,UZJ100199810-199907

main09111-60082iHDJ100,UZJ100199907-200505

sub09111-60084

main09111-60084iHDJ100,UZJ100200505-200708

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60070iHDJ100,UZJ100199801-200505

09115ROD SUB-ASSY, JACK HANDLE

main09115-60060iHDJ100,UZJ100199801-200505

09116LEVER, JACK HANDLE

main09116-60010iHDJ100,UZJ100199801-200505

09120BAG, TOOL

main09120-60140iHDJ100,UZJ100199801-200505

main09120-60150iHDJ100,UZJ100199810-199907

09127ATTACHMENT, SCREW JACK

main09127-60010iHDJ100,UZJ100199810-199907

09130PLIERS

main99913-11500iHDJ100,UZJ100199801-200505

09135DRIVER, SCREW

main99915-10700iHDJ100,UZJ100199801-200505

09141SPANNER

main99914-10810iHDJ100,UZJ100199801-200505

8 X 10

main99914-11214iHDJ100,UZJ100199801-200505

12 X 14

09150WRENCH, HUB NUT BOX

main09150-60030iHDJ100,UZJ100199801-200708

09155WRENCH, SPARK PLUG

main09155-74010iUZJ100199801-200708

09183WRENCH, WHEEL CAP

main09183-00030iHDJ100,UZJ100199801-200708

12 parts on this diagram · 1 diagram in section
