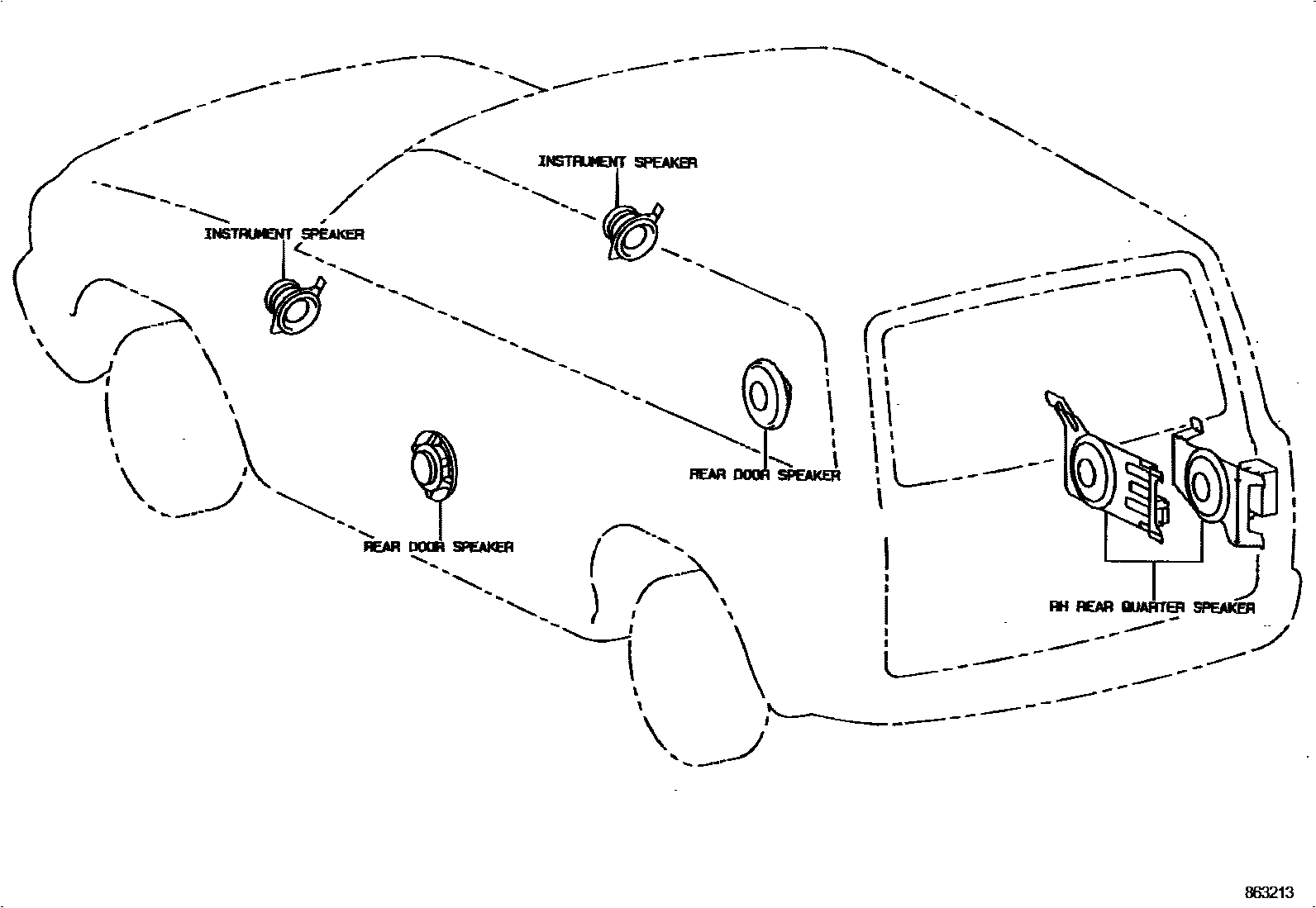

SPEAKER

0001 1 0002 1

86160SPEAKER ASSY, FRONT NO.1

main86160-16130iHZJ80..STD199501-199801

W(1 SPEAKER)

main86160-60150×2iFZJ80,HDJ80..LHD; HZJ80..GX;FZJ80,HDJ80..RHD; HZJ80..STD199608-199801

W(5 SPEAKER)

86160BSPEAKER ASSY, REAR

main86160-60090×2iHZJ80..GX;FZJ80,HDJ80199501-199503

REAR DOOR

main86160-60100iFZJ80,HDJ80,HZJ80199503-199801

REAR QUARTER PANEL

86264BGRILLE, SPEAKER, REAR

main86269-60010-03×2iFJ80,HDJ80,HZJ80..GX,VX199001-199108

BLUISH GRAY,TRIM1#,REAR DOOR

main86269-60010-06×2iFJ80,HDJ80,HZJ80..GX,VX199001-199108

SABLE,TRIM4#,REAR DOOR

main86269-60020-03iFJ80,FZJ80,HDJ80,HZJ80199108-199501

BLUISH GRAY,TRIM1#,REAR QUARTER PANEL

main86269-60020-06iFJ80,FZJ80,HDJ80,HZJ80199108-199501

SABLE,TRIM4#,REAR QUARTER PANEL

main86269-60050-B0×2iFZJ80,HDJ80,HZJ80; HZJ80..STD199503-199801

BLUEISH GRAY,TRIM1#,REAR DOOR

main86269-60050-E0×2iFZJ80,HDJ80,HZJ80; HZJ80..STD199503-199801

OAK,TRIM4#,REAR DOOR

main86269-60060-B0iFZJ80,HDJ80,HZJ80; HZJ80..STD199503-199801

BLUEISH GRAY,TRIM1#,REAR QUARTER PANEL

main86269-60060-E0iFZJ80,HDJ80,HZJ80; HZJ80..STD199503-199801

OAK,TRIM4#,REAR QUARTER PANEL

86280FAMPLIFIER ASSY, STEREO COMPONENT

main86280-60010iFJ80,FZJ80,HDJ80,HZJ80199108-199501

9015960076

main90159-60076

9016850023

main90168-50023

9018305018

main90183-05018

9018305103

main90183-05103

9018906118

main90189-06118

9111150614

main91111-50614

9338515012

main93385-15012

9356755014

main93567-55014

12 parts on this diagram · 2 diagrams in section
