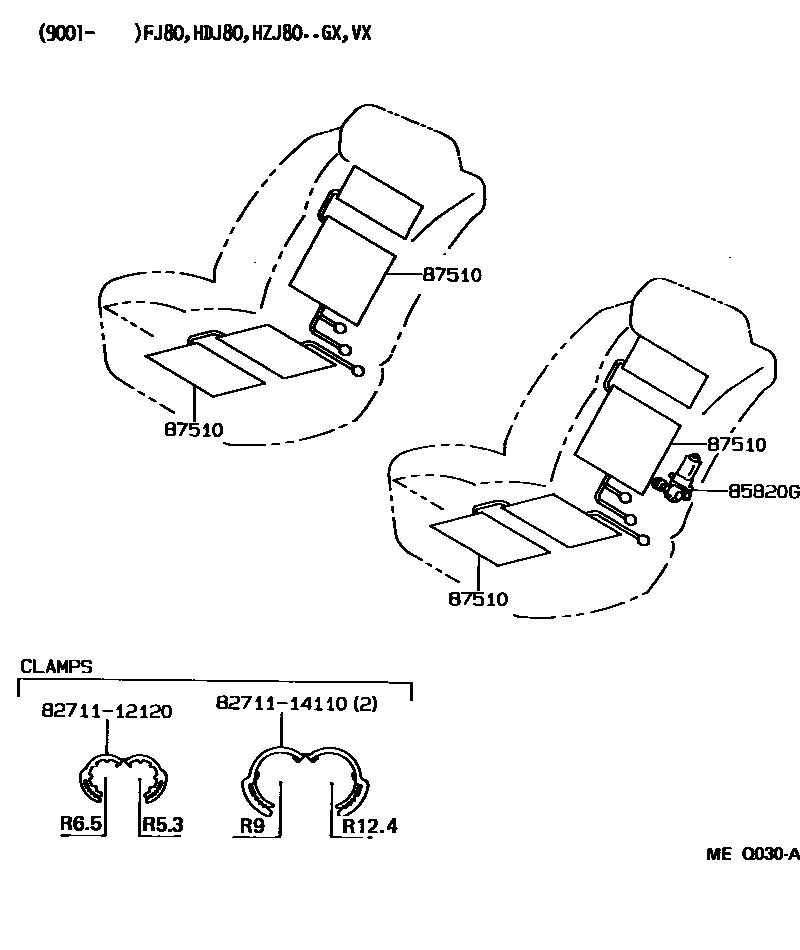

SEAT MOTOR & SEAT HEATER

0001 1 0002 1

85820GMOTOR ASSY, POWER SEAT

main85820-30180iFJ80,HDJ80..LHD..VX199001-199208

87510HEATER ASSY, SEAT

main87510-60010iFJ80,FZJ80,HDJ80..VX199001-199308

SEAT BACK,LH

main87510-60011×2iFZJ80,HDJ80..VX199501-199801

SEAT BACK

main87510-60040iFJ80,HDJ80,HZJ80..GX,VX199001-199208

SEAT CUSHION,LH

main87510-60041×2iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

SEAT CUSHION,RH

main87510-60050iFJ80,HDJ80,HZJ80..GX199001-199208

SEAT BACK,LH

main87510-60051×2iFZJ80,HDJ80,HZJ80..GX199208-199501

SEAT BACK,RH

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

4 parts on this diagram · 2 diagrams in section
