EPC Data

INSIDE TRIM BOARD

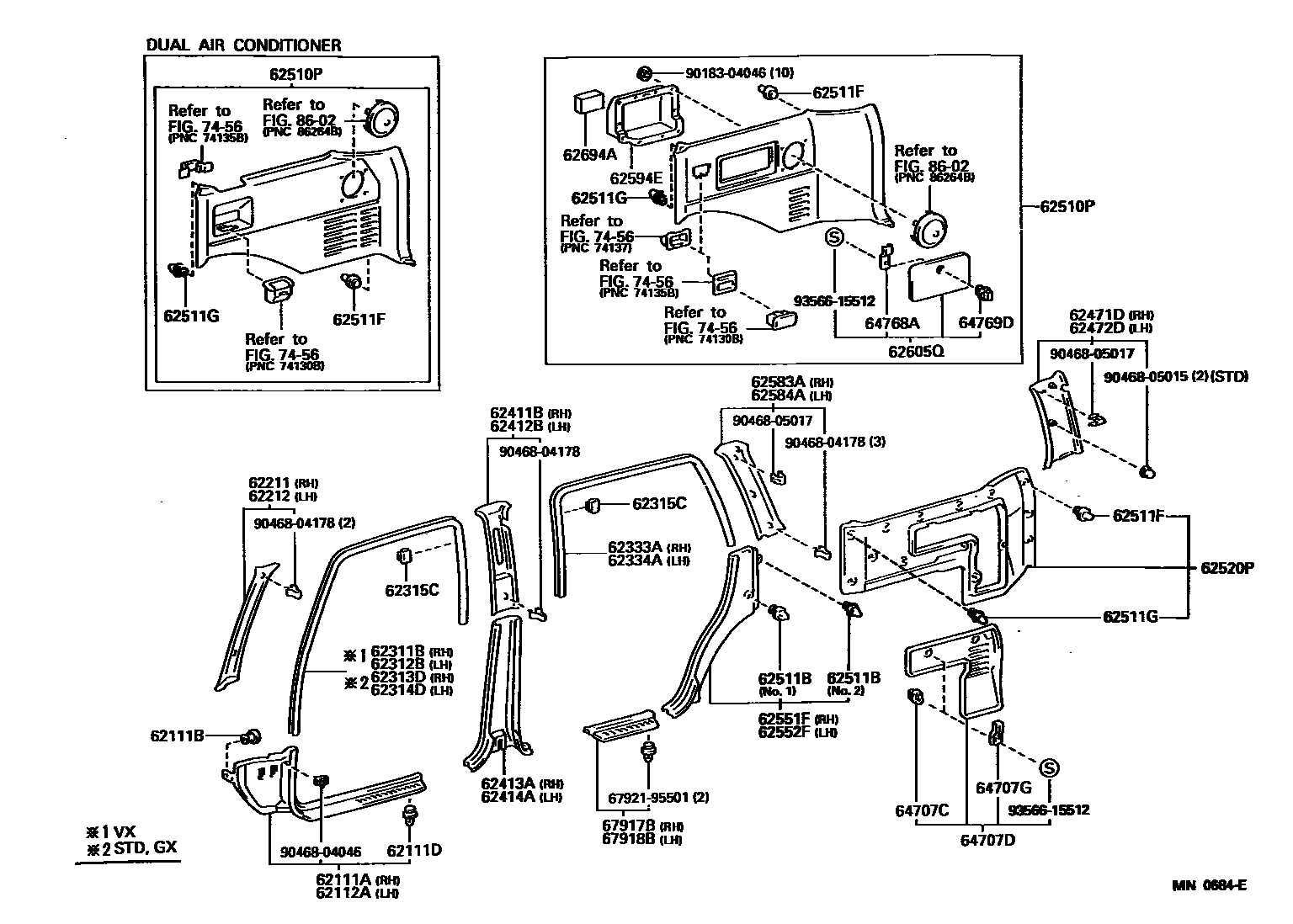

Parts diagram
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-60010-03i199001-199801
BLUISH GRAY,TRIM1#
sub62101-60011
sub62101-60010
main62101-60010-06i199001-199501
SABLE,TRIM4#
sub62101-60011
sub62101-60010
main62101-60010-E0i199501-199801
OAK,TRIM4#
sub62101-60011
sub62101-60010
62111BCLIP(FOR COWL SIDE TRIM)
main90467-04017-03i199511-199801
BLUISH GRAY,TRIM10
main90467-04017-03i199001-199110
BLUISH GRAY,TRIM1#
main90467-04017-06i199001-199110
SABLE,TRIM4#
main90467-04017-C0i199110-199801
BLACK,TRIM1#,4#
main90467-04017-E1i199511-199801
OAK,TRIM41
62111DRETAINER, FRONT DOOR SCUFF PLATE
main67921-95501i199001-199801
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-60010-03i199001-199801
BLUISH GRAY,TRIM1#
sub62102-60011
sub62102-60010
main62102-60010-06i199001-199501
SABLE,TRIM4#
sub62102-60011
sub62102-60010
main62102-60010-E0i199501-199801
OAK,TRIM4#
sub62102-60011
sub62102-60010
62211GARNISH, FRONT PILLAR, RH
main62211-60030-B0i199501-199608
W(ASSIST GRIP),LIGHT GRAY,TRIM1#,4#
sub62211-60050
main62211-60030-B0i199608-199801
LIGHT GRAY,TRIM1#,4#
sub62211-60050
main62211-60040-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
sub62211-60041
sub62211-60050
main62211-60050-B0i199608-199801
W/O(*80),LIGHT GRAY,TRIM1#,4#
sub62211-60051
main62211-60050-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
sub62211-60051
62212GARNISH, FRONT PILLAR, LH
main62212-60050-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
sub62212-60030
main62212-60060-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
sub62212-60061
sub62212-60030
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-60010-03i199001-199501
LIGHT GRAY,TRIM1#
sub62311-60010
main62311-60010-06i199001-199501
LIGHT SABLE,TRIM4#
sub62311-60010
main62311-60020-B0i199501-199609
LIGHT GRAY,TRIM1#,4#
sub62311-60070
main62311-60070-B0i199609-199801
LIGHT GRAY,TRIM1#,4#
sub62311-60070
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-60010-03i199001-199501
LIGHT GRAY,TRIM1#
sub62312-60010
main62312-60010-06i199001-199501
LIGHT SABLE,TRIM4#
sub62312-60010
main62312-60020-B0i199501-199609
LIGHT GRAY,TRIM1#,4#
sub62312-60070
main62312-60070-B0i199609-199801
LIGHT GRAY,TRIM1#,4#
sub62312-60070
62313DTRIM, FRONT DOOR OPENING, RH
main62313-60010-03i199001-199501
LIGHT GRAY,TRIM1#
sub62313-60010
main62313-60010-06i199001-199501
LIGHT SABLE,TRIM4#
sub62313-60010
main62313-60030-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
62314DTRIM, FRONT DOOR OPENING, LH
main62313-60010-03i199001-199501
LIGHT GRAY,TRIM1#
sub62313-60010
main62313-60010-06i199001-199501
LIGHT SABLE,TRIM4#
sub62313-60010
main62314-60010-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
62315CCOVER, FRONT DOOR OPENING TRIM
main62315-60010-03i199001-199501
LIGHT GRAY,TRIM1#
sub62315-60010
main62315-60010-06i199001-199501
LIGHT SABLE,TRIM4#
sub62315-60010
62333ATRIM, REAR DOOR OPENING, RH
main62333-60010-03i199001-199501
LIGHT GRAY,TRIM1#
sub62313-60010
main62333-60010-06i199001-199501
LIGHT SABLE,TRIM4#
sub62313-60010
main62333-60040-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
sub62333-60040
62334ATRIM, REAR DOOR OPENING, LH
main62333-60010-03i199001-199501
LIGHT GRAY,TRIM1#
sub62313-60010
main62333-60010-06i199001-199501
LIGHT SABLE,TRIM4#
sub62313-60010
main62334-60010-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
sub62334-60010
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-60010-B0i199501-199801
W/O(ADJUSTABLE SEAT BELT ANCHOR),LIGHT GRAY,TRIM1#,4#
sub62411-60030
main62411-60020-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
main62411-60050-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
sub62411-60020
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-60010-B0i199501-199801
W/O(ADJUSTABLE SEAT BELT ANCHOR),LIGHT GRAY,TRIM1#,4#
sub62412-60030
main62412-60020-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
main62412-60050-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
sub62412-60020
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-60010-03i199001-199501
BLUISH GRAY,TRIM1#
sub62413-60011
main62413-60010-06i199001-199501
SABLE,TRIM4#
sub62413-60011
main62413-60011-B0i199501-199801
BLUISH GRAY,TRIM1#
sub62413-60011
main62413-60011-E0i199501-199801
OAK,TRIM4#
sub62413-60011
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-60010-03i199001-199501
BLUISH GRAY,TRIM1#
sub62414-60011
main62414-60010-06i199001-199501
SABLE,TRIM4#
sub62414-60011
main62414-60011-B0i199501-199801
BLUISH GRAY,TRIM1#
sub62414-60011
main62414-60011-E0i199501-199801
OAK,TRIM4#
sub62414-60011
62471DGARNISH, REAR PILLAR, UPPER RH
main62471-60010-03i199001-199501
LIGHT GRAY,TRIM1#
sub62471-60010
main62471-60010-06i199001-199501
LIGHT SABLE,TRIM4#
sub62471-60010
main62471-60050-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
main62471-60060-B0i199501-199801
W(REAR SEAT BELT 3 POINT TYPE),LIGHT GRAY,TRIM1#,4#
sub62471-60060
62472DGARNISH, REAR PILLAR, UPPER LH
main62472-60010-03i199001-199501
LIGHT GRAY,TRIM1#
sub62472-60010
main62472-60010-06i199001-199501
LIGHT SABLE,TRIM4#
sub62472-60010
main62472-60050-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
main62472-60060-B0i199501-199801
W(REAR SEAT BELT 3 POINT TYPE),LIGHT GRAY,TRIM1#,4#
sub62472-60060
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
main62510-60010-03i199001-199801
BLUISH GRAY,TRIM1#
sub62510-60070
main62510-60010-03i199501-199801
W(2 SPEAKER),BLUISH GRAY,TRIM1#
sub62510-60070
main62510-60010-03i199108-199208
*EX-USSR & W(PARALLEL 3RD SEAT),BLUISH GRAY,TRIM1#
sub62510-60070
main62510-60010-06i199108-199208
*EX-USSR & W(PARALLEL 3RD SEAT),SABLE,TRIM4#
sub62510-60070
main62510-60010-06i199001-199501
SABLE,TRIM4#
sub62510-60070
main62510-60010-E0i199501-199801
W(2 SPEAKER),OAK,TRIM4#
sub62510-60070
main62510-60010-E0i199501-199801
OAK,TRIM4#
sub62510-60070
main62510-60020-03i199001-199801
W(5 SPEAKER),BLUISH GRAY,TRIM1#
sub62510-60080
main62510-60020-03i199501-199801
BLUISH GRAY,TRIM1#
sub62510-60080
main62510-60020-03i199108-199208
*EX-USSR & W(5 SPEAKER),BLUISH GRAY,TRIM1#
sub62510-60080
main62510-60020-06i199001-199501
W(5 SPEAKER),SABLE,TRIM4#
sub62510-60080
main62510-60020-06i199108-199208
*EX-USSR & W(5 SPEAKER),SABLE,TRIM4#
sub62510-60080
main62510-60020-E0i199501-199801
W(5 SPEAKER),OAK,TRIM4#
sub62510-60080
main62510-60020-E0i199501-199801
OAK,TRIM4#
sub62510-60080
main62510-60030-03i199001-199801
W(TONNEAU COVER),BLUISH GRAY,TRIM1#
sub62510-60030
main62510-60030-06i199001-199501
W(TONNEAU COVER),SABLE,TRIM4#
sub62510-60030
main62510-60030-E0i199501-199801
W(TONNEAU COVER),OAK,TRIM4#
sub62510-60030
main62510-60040-03i199001-199801
W(TONNEAU COVER & 5 SPEAKER),BLUISH GRAY,TRIM1#
sub62510-60040
main62510-60040-06i199001-199501
W(TONNEAU COVER & 5 SPEAKER),SABLE,TRIM4#
sub62510-60040
main62510-60040-E0i199501-199801
W(TONNEAU COVER & 5 SPEAKER),OAK,TRIM4#
sub62510-60040
main62510-60060-03i199501-199801
W(PARALLEL 3RD SEAT),BLUISH GRAY,TRIM1#
main62510-60060-03i199208-199801
W(PARALLEL 3RD SEAT & 5 SPEAKER),BLUISH GRAY,TRIM1#
main62510-60060-03i199108-199208
*EX-USSR & W(PARALLEL 3RD SEAT & 5 SPEAKER),BLUISH GRAY,TRIM1#
main62510-60060-06i199208-199501
W(PARALLEL 3RD SEAT & 5 SPEAKER),SABLE,TRIM4#
main62510-60060-06i199108-199208
*EX-USSR & W(PARALLEL 3RD SEAT & 5 SPEAKER),SABLE,TRIM4#
main62510-60060-E0i199501-199801
W(PARALLEL 3RD SEAT),OAK,TRIM4#
main62510-60060-E0i199501-199801
W(PARALLEL 3RD SEAT & 5 SPEAKER),OAK,TRIM4#
main62510-60070-03i199401-199501
W(TRANSVERSE 3RD SEAT) & W/O(REAR SEAT BELT),BLUISH GRAY,TRIM1#
sub62510-60070
main62510-60070-03i199108-199401
*EX-USSR & W(TRANSVERSE 3RD SEAT),BLUISH GRAY,TRIM1#
sub62510-60070
main62510-60070-03i199501-199801
W(3RD SEAT),BLUISH GRAY,TRIM1#
sub62510-60070
main62510-60070-06i199401-199501
W(TRANSVERSE 3RD SEAT) & W/O(REAR SEAT BELT),SABLE,TRIM4#
sub62510-60070
main62510-60070-06i199108-199401
*EX-USSR & W(TRANSVERSE 3RD SEAT),SABLE,TRIM4#
sub62510-60070
main62510-60070-E0i199501-199801
W(3RD SEAT),OAK,TRIM4#
sub62510-60070
main62510-60080-03i199501-199801
W(3RD SEAT),BLUISH GRAY,TRIM1#
sub62510-60080
main62510-60080-03i199503-199608
W(3RD SEAT & 5 SPEAKER),BLUISH GRAY,TRIM1#
sub62510-60080
main62510-60080-03i199108-199401
*EX-USSR & W(TRANSVERSE 3RD SEAT & 5 SPEAKER),BLUISH GRAY,TRIM1#
sub62510-60080
main62510-60080-03i199608-199801
W(TRANSVERSE 3RD SEAT & 5 SPEAKER),BLUISH GRAY,TRIM1#
sub62510-60080
main62510-60080-03i199401-199501
W(TRANSVERSE 3RD SEAT & 5 SPEAKER) & W/O(REAR SEAT BELT),BLUISH GRAY,TRIM1#
sub62510-60080
main62510-60080-06i199401-199501
W(TRANSVERSE 3RD SEAT & 5 SPEAKER) & W/O(REAR SEAT BELT),SABLE,TRIM4#
sub62510-60080
main62510-60080-06i199108-199401
*EX-USSR & W(TRANSVERSE 3RD SEAT & 5 SPEAKER),SABLE,TRIM4#
sub62510-60080
main62510-60080-E0i199501-199801
W(3RD SEAT),OAK,TRIM4#
sub62510-60080
main62510-60080-E0i199608-199801
W(TRANSVERSE 3RD SEAT & 5 SPEAKER),OAK,TRIM4#
sub62510-60080
main62510-60080-E0i199503-199608
W(3RD SEAT & 5 SPEAKER),OAK,TRIM4#
sub62510-60080
main62510-60090-03i199608-199801
W(TRANSVERSE 3RD SEAT & REAR SEAT BELT & 2 SPEAKER),BLUISH GRAY,TRIM1#
sub62510-60090
main62510-60090-03i199001-199608
W(3RD SEAT),BLUISH GRAY,TRIM1#
sub62510-60090
main62510-60090-03i199501-199608
W(TRANSVERSE 3RD SEAT & 2 SPEAKER),BLUISH GRAY,TRIM1#
sub62510-60090
main62510-60090-03i199608-199801
W(TRANSVERSE 3RD SEAT & REAR SEAT BELT),BLUISH GRAY,TRIM1#
sub62510-60090
main62510-60090-06i199001-199501
W(3RD SEAT),SABLE,TRIM4#
sub62510-60090
main62510-60090-E0i199501-199608
W(3RD SEAT),OAK,TRIM4#
sub62510-60090
main62510-60090-E0i199608-199801
W(TRANSVERSE 3RD SEAT & REAR SEAT BELT & 2 SPEAKER),OAK,TRIM4#
sub62510-60090
main62510-60090-E0i199608-199801
W(TRANSVERSE 3RD SEAT & REAR SEAT BELT),OAK,TRIM4#
sub62510-60090
main62510-60090-E0i199501-199608
W(TRANSVERSE 3RD SEAT & 2 SPEAKER),OAK,TRIM4#
sub62510-60090
main62510-60100-03i199608-199801
W(TRANSVERSE 3RD SEAT & REAR SEAT BELT),BLUISH GRAY,TRIM1#
sub62510-60100
main62510-60100-03i199608-199801
W(TRANSVERSE 3RD SEAT & REAR SEAT BELT & 5 SPEAKER),BLUISH GRAY,TRIM1#
sub62510-60100
main62510-60100-03i199001-199608
W(3RD SEAT & 5 SPEAKER),BLUISH GRAY,TRIM1#
sub62510-60100
main62510-60100-03i199501-199608
W(3RD SEAT),BLUISH GRAY,TRIM1#
sub62510-60100
main62510-60100-06i199001-199501
W(3RD SEAT & 5 SPEAKER),SABLE,TRIM4#
sub62510-60100
main62510-60100-E0i199501-199608
W(3RD SEAT),OAK,TRIM4#
sub62510-60100
main62510-60100-E0i199608-199801
W(TRANSVERSE 3RD SEAT & REAR SEAT BELT),OAK,TRIM4#
sub62510-60100
main62510-60100-E0i199608-199801
W(TRANSVERSE 3RD SEAT & REAR SEAT BELT & 5 SPEAKER),OAK,TRIM4#
sub62510-60100
main62510-60100-E0i199501-199608
W(3RD SEAT & 5 SPEAKER),OAK,TRIM4#
sub62510-60100
main62510-60520-03i199608-199801
W(TONNEAU COVER & TRANSVERSE 3RD SEAT & REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62510-60520-03i199001-199608
W(TONNEAU COVER & 3RD SEAT),BLUISH GRAY,TRIM1#
main62510-60520-06i199001-199501
W(TONNEAU COVER & 3RD SEAT),SABLE,TRIM4#
main62510-60520-E0i199501-199608
W(TONNEAU COVER & 3RD SEAT),OAK,TRIM4#
main62510-60520-E0i199608-199801
W(TONNEAU COVER & TRANSVERSE 3RD SEAT & REAR SEAT BELT),OAK,TRIM4#
main62510-60530-03i199608-199801
W(TONNEAU COVER & TRANSVERSE 3RD SEAT & REAR SEAT BELT & 5 SPEAKER),BLUISH GRAY,TRIM1#
main62510-60530-03i199001-199608
W(TONNEAU COVER & 3RD SEAT & 5 SPEAKER),BLUISH GRAY,TRIM1#
main62510-60530-06i199001-199501
W(TONNEAU COVER & 3RD SEAT & 5 SPEAKER),SABLE,TRIM4#
main62510-60530-E0i199608-199801
W(TONNEAU COVER & TRANSVERSE 3RD SEAT & REAR SEAT BELT & 5 SPEAKER),OAK,TRIM4#
main62510-60530-E0i199501-199608
W(TONNEAU COVER & 3RD SEAT & 5 SPEAKER),OAK,TRIM4#
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
main67771-12040i199208-199501
main67771-12040i199501-199801
NO.1
main90467-10161i199501-199801
NO.2
62511FRETAINER (FOR QUARTER INSIDE TRIM BOARD)
main67771-12040i199001-199004
main67771-12050i199004-199201
main67771-12050i199201-199801
RED
main67771-32060i199201-199801
BROWN
62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-10161i199501-199801
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
main62520-60010-03i199108-199208
*EX-USSR & W(3RD SEAT) OR *EX-USSR & W(5 SPEAKER),BLUISH GRAY,TRIM1#
sub62520-60010
main62520-60010-03i199001-199801
BLUISH GRAY,TRIM1#
sub62520-60010
main62520-60010-03i199208-199401
*EX-USSR & W(TRANSVERSE 3RD SEAT),BLUISH GRAY,TRIM1#
sub62520-60010
main62520-60010-03i199401-199501
W(TRANSVERSE 3RD SEAT) & W/O(REAR SEAT BELT),BLUISH GRAY,TRIM1#
sub62520-60010
main62520-60010-06i199001-199501
SABLE,TRIM4#
sub62520-60010
main62520-60010-06i199108-199208
*EX-USSR & W(3RD SEAT) OR *EX-USSR & W(5 SPEAKER),SABLE,TRIM4#
sub62520-60010
main62520-60010-06i199401-199501
W(TRANSVERSE 3RD SEAT) & W/O(REAR SEAT BELT),SABLE,TRIM4#
sub62520-60010
main62520-60010-06i199208-199401
*EX-USSR & W(TRANSVERSE 3RD SEAT),SABLE,TRIM4#
sub62520-60010
main62520-60010-E0i199501-199801
OAK,TRIM4#
sub62520-60010
main62520-60020-03i199001-199801
W(TONNEAU COVER),BLUISH GRAY,TRIM1#
sub62520-60020
main62520-60020-06i199001-199501
W(TONNEAU COVER),SABLE,TRIM4#
sub62520-60020
main62520-60020-E0i199501-199801
W(TONNEAU COVER),OAK,TRIM4#
sub62520-60020
main62520-60030-03i199208-199801
W(PARALLEL 3RD SEAT),BLUISH GRAY,TRIM1#
sub62520-60030
main62520-60030-03i199108-199208
*EX-USSR & W(PARALLEL SEAT),BLUISH GRAY,TRIM1#
sub62520-60030
main62520-60030-06i199208-199501
W(PARALLEL 3RD SEAT),SABLE,TRIM4#
sub62520-60030
main62520-60030-06i199108-199208
*EX-USSR & W(PARALLEL SEAT),SABLE,TRIM4#
sub62520-60030
main62520-60030-E0i199501-199801
W(PARALLEL 3RD SEAT),OAK,TRIM4#
sub62520-60030
main62520-60040-03i199608-199801
W(TRANSVERSE 3RD SEAT & REAR SEAT BELT),BLUISH GRAY,TRIM1#
sub62520-60040
main62520-60040-03i199001-199608
W(3RD SEAT),BLUISH GRAY,TRIM1#
sub62520-60040
main62520-60040-06i199001-199501
W(3RD SEAT),SABLE,TRIM4#
sub62520-60040
main62520-60040-E0i199608-199801
W(TRANSVERSE 3RD SEAT & REAR SEAT BELT),OAK,TRIM4#
sub62520-60040
main62520-60040-E0i199501-199608
W(3RD SEAT),OAK,TRIM4#
sub62520-60040
main62520-60230-03i199001-199608
W(TONNEAU COVER & 3RD SEAT),BLUISH GRAY,TRIM1#
main62520-60230-03i199608-199801
W(TONNEAU COVER & TRANSVERSE 3RD SEAT & REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62520-60230-06i199001-199501
W(TONNEAU COVER & 3RD SEAT),SABLE,TRIM4#
main62520-60230-E0i199501-199608
W(TONNEAU COVER & 3RD SEAT),OAK,TRIM4#
main62520-60230-E0i199608-199801
W(TONNEAU COVER & TRANSVERSE 3RD SEAT & REAR SEAT BELT),OAK,TRIM4#
62551FGARNISH, REAR SEAT SIDE, RH
main62551-60010-03i199108-199208
W/O(REAR SEAT) OR *EX-USSR,BLUISH GRAY,TRIM1#
sub62551-60020
main62551-60010-03i199501-199801
BLUISH GRAY,TRIM1#
sub62551-60020
main62551-60010-03i199401-199501
W/O(REAR SEAT BELT),BLUISH GRAY,TRIM1#
sub62551-60020
main62551-60010-03i199001-199208
W/O(REAR SEAT),BLUISH GRAY,TRIM1#
sub62551-60020
main62551-60010-03i199208-199401
*EX-USSR,BLUISH GRAY,TRIM1#
sub62551-60020
main62551-60010-06i199001-199208
W/O(REAR SEAT),SABLE,TRIM4#
sub62551-60020
main62551-60010-06i199108-199208
W/O(REAR SEAT) OR *EX-USSR,SABLE,TRIM4#
sub62551-60020
main62551-60010-06i199208-199401
*EX-USSR,SABLE,TRIM4#
sub62551-60020
main62551-60010-06i199401-199501
W/O(REAR SEAT BELT),SABLE,TRIM4#
sub62551-60020
main62551-60010-E0i199501-199801
OAK,TRIM4#
sub62551-60020
main62551-60020-03i199001-199801
BLUISH GRAY,TRIM1#
sub62551-60020
main62551-60020-06i199001-199501
SABLE,TRIM4#
sub62551-60020
main62551-60020-E0i199501-199801
OAK,TRIM4#
sub62551-60020
62552FGARNISH, REAR SEAT SIDE, LH
main62552-60010-03i199108-199208
W/O(REAR SEAT) OR *EX-USSR,BLUISH GRAY,TRIM1#
sub62552-60020
main62552-60010-03i199001-199208
W/O(REAR SEAT),BLUISH GRAY,TRIM1#
sub62552-60020
main62552-60010-03i199501-199801
BLUISH GRAY,TRIM1#
sub62552-60020
main62552-60010-03i199208-199401
*EX-USSR,BLUISH GRAY,TRIM1#
sub62552-60020
main62552-60010-03i199401-199501
W/O(REAR SEAT BELT),BLUISH GRAY,TRIM1#
sub62552-60020
main62552-60010-06i199001-199208
W/O(REAR SEAT),SABLE,TRIM4#
sub62552-60020
main62552-60010-06i199108-199208
W/O(REAR SEAT) OR *EX-USSR,SABLE,TRIM4#
sub62552-60020
main62552-60010-06i199401-199501
W/O(REAR SEAT BELT),SABLE,TRIM4#
sub62552-60020
main62552-60010-06i199208-199401
*EX-USSR,SABLE,TRIM4#
sub62552-60020
main62552-60010-E0i199501-199801
OAK,TRIM4#
sub62552-60020
main62552-60020-03i199001-199801
BLUISH GRAY,TRIM1#
sub62552-60020
main62552-60020-06i199001-199501
SABLE,TRIM4#
sub62552-60020
main62552-60020-E0i199501-199801
OAK,TRIM4#
sub62552-60020
62583ACOVER, QUARTER PILLAR, UPPER RH
main62583-60040-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
main62583-60050-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
sub62583-60040
main62583-60080-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
sub62583-60070
62584ACOVER, QUARTER PILLAR, UPPER LH
main62584-60040-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
main62584-60050-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
sub62584-60040
main62584-60080-B0i199501-199801
LIGHT GRAY,TRIM1#,4#
sub62584-60070
62594EPOCKET, QUARTER TRIM, RH
main62594-60010-03i199001-199801
BLUISH GRAY,TRIM1#
sub62594-60010
main62594-60010-06i199001-199501
SABLE,TRIM4#
sub62594-60010
main62594-60010-E0i199501-199801
OAK,TRIM4#
sub62594-60010
62605QLID SUB-ASSY, QUARTER TRIM, RH
main62605-60010-03i199001-199801
BLUISH GRAY,TRIM1#
sub62605-60010
main62605-60010-06i199001-199501
SABLE,TRIM4#
sub62605-60010
main62605-60010-E0i199501-199801
OAK,TRIM4#
sub62605-60010
62694APAD, QUARTER TRIM BOX, COVER
main62694-60010i199001-199801
64707CKNOB, JACK COVER
main64769-90K00-03i199001-199501
BLUISH GRAY,TRIM1#
sub64769-90K00
main64769-90K00-06i199001-199501
SABLE,TRIM4#
sub64769-90K00
main64769-90K00-B0i199501-199801
BLUISH GRAY,TRIM1#
sub64769-90K00
main64769-90K00-E1i199501-199801
OAK,TRIM4#
sub64769-90K00
64707DCOVER SUB-ASSY, QUARTER TRIM JACK
main64707-60010-03i199001-199801
BLUISH GRAY,TRIM1#
sub64707-60010
main64707-60010-06i199001-199501
SABLE,TRIM4#
sub64707-60010
main64707-60010-E0i199501-199801
OAK,TRIM4#
sub64707-60010
64707GSTOPPER, JACK COVER
main64768-60010i199001-199801
64768ASTOPPER, QUARTER TRIM LID
main64768-60010i199001-199801
64769DKNOB, JACK COVER
main64769-90K00-03i199001-199501
BLUISH GRAY,TRIM1#
sub64769-90K00
main64769-90K00-06i199001-199501
SABLE,TRIM4#
sub64769-90K00
main64769-90K00-B0i199501-199801
BLUISH GRAY,TRIM1#
sub64769-90K00
main64769-90K00-E1i199501-199801
OAK,TRIM4#
sub64769-90K00
67917BPLATE, REAR DOOR SCUFF, RH
main67917-60010-03i199001-199801
BLUISH GRAY,TRIM1#
sub67917-60011
sub67917-60010
main67917-60010-06i199001-199501
SABLE,TRIM4#
sub67917-60011
sub67917-60010
main67917-60010-E0i199501-199801
OAK,TRIM4#
sub67917-60011
sub67917-60010
67918BPLATE, REAR DOOR SCUFF, LH
main67918-60010-03i199001-199801
BLUISH GRAY,TRIM1#
sub67918-60011
sub67918-60010
main67918-60010-06i199001-199501
SABLE,TRIM4#
sub67918-60011
sub67918-60010
main67918-60010-E0i199501-199801
OAK,TRIM4#
sub67918-60011
sub67918-60010
7456
8602
6792195501RETAINER, FRONT DOOR SCUFF PLATE
main67921-95501
9018304046
main90183-04046
9046804046
main90468-04046
9046804178
main90468-04178
9046805015
main90468-05015
9046805017
main90468-05017
9356615512
main93566-15512

47 parts on this diagram · 1 diagram in section

INSIDE TRIM BOARD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
