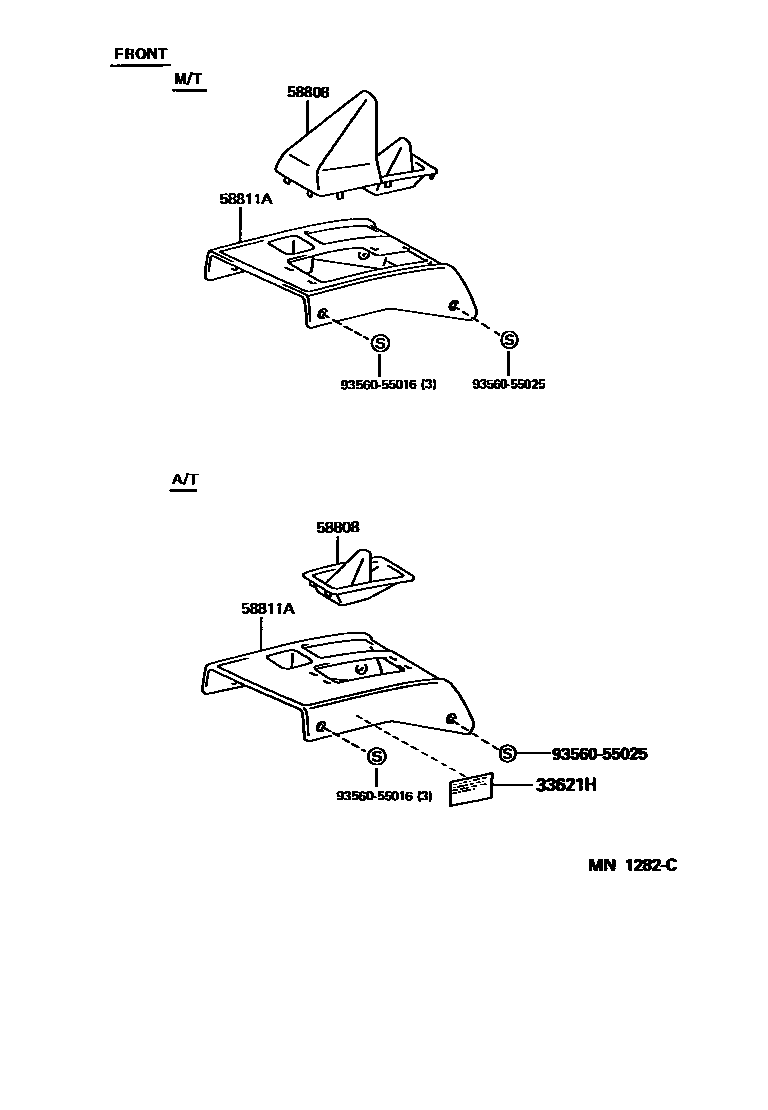

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1COOL BOX:REFER TO FIG 87-14 0004 1COOL BOX:REFER TO FIG 87-14

33621HPLATE, WINTCH CAUTION

main33621-60310iHDJ80..ATM;FZJ80..LHD..ATM199208-199701

main33621-60311iFZJ80..LHD..ATM199701-199801

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-60010iFZJ80,HDJ80..ATM199208-199501

main58808-60020iHDJ80,HZJ80..LHD..MTM..(GX,VX)199208-199501

main58808-60030iHDJ80..RHD..MTM199001-199005

main58808-60031iHDJ80..RHD..MTM199005-199407

main58808-60050-C0iFZJ80..ATM199501-199801

BLACK,TRIM1#,4#

main58808-60060-C0iFZJ80,HDJ80..LHD..MTM..LUB199501-199801

BLACK,TRIM1#,4#

main58808-60070-C0iHDJ80..RHD199501-199801

BLACK,TRIM1#,4#

58811ABOX, CONSOLE, FRONT

main58811-60010-03iFJ80,FZJ80,HDJ80,HZJ80..LHD..ATM199001-199501

BLUISH GRAY,TRIM1#

main58811-60010-06iFJ80,FZJ80,HDJ80,HZJ80..LHD..ATM199001-199501

SABLE,TRIM4#

main58811-60020-03iHDJ80..RHD..ATM199208-199407

BLUISH GRAY,TRIM1#

main58811-60020-06iHDJ80..RHD..ATM199001-199407

SABLE,TRIM4#

main58811-60030-03iHDJ80..LHD..MTM..VX199001-199208

BLUISH GRAY,TRIM1#

main58811-60030-06iHDJ80,HZJ80..LHD..MTM..(GX,VX)199208-199501

SABLE,TRIM4#

main58811-60040-03iHDJ80..RHD..MTM199001-199005

BLUISH GRAY,TRIM1#

main58811-60040-06iHDJ80..RHD..MTM199001-199005

SABLE,TRIM4#

main58811-60041-03iHDJ80..RHD..MTM199208-199407

BLUISH GRAY,TRIM1#

main58811-60041-06iHDJ80..RHD..MTM199208-199407

SABLE,TRIM4#

main58811-60090-B0iFZJ80..LHD..ATM199501-199801

BLUISH GRAY,TRIM1#

main58811-60090-E0iFZJ80..LHD..ATM199501-199801

OAK,TRIM4#

main58811-60100-B0iFZJ80,HDJ80..LHD..MTM..LUB199501-199801

BLUISH GRAY,TRIM1#

main58811-60100-E0iFZJ80,HDJ80..LHD..MTM..LUB199501-199801

OAK,TRIM4#

main58811-60110-B0iHDJ80..RHD199501-199801

BLUISH GRAY,TRIM1#

main58811-60110-E0iHDJ80..RHD199501-199801

OAK,TRIM4#

main58811-60120-B0iFZJ80..RHD199501-199801

BLUISH GRAY,TRIM1#

main58811-60120-E0iFZJ80..RHD199501-199801

OAK,TRIM4#

9356055016

main93560-55016

9356055025

main93560-55025

5 parts on this diagram · 4 diagrams in section
