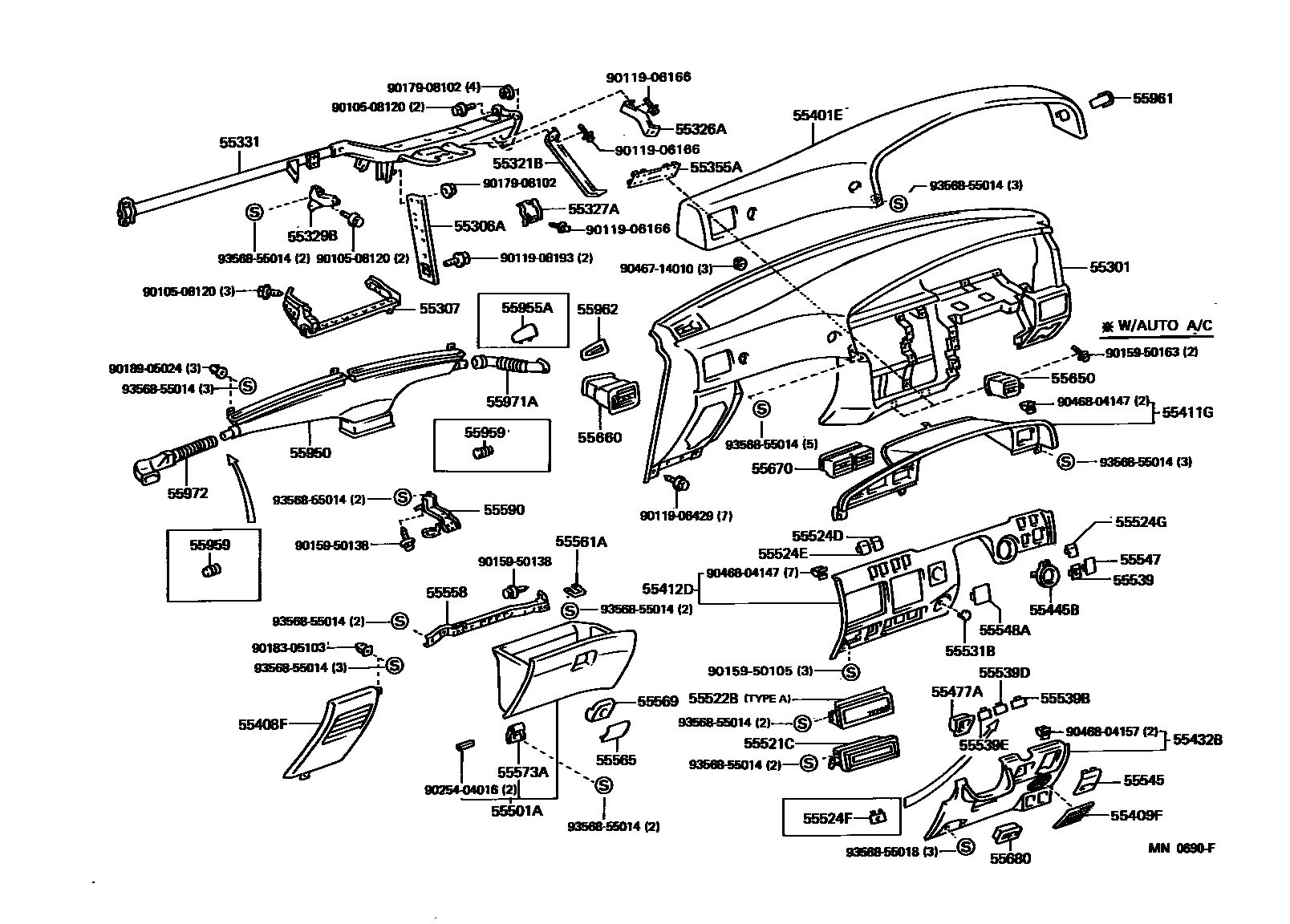

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1AIR BAG

55301PANEL SUB-ASSY, INSTRUMENT

main55311-60120-03iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199308

BLUISH GRAY,TRIM1#

main55311-60120-06iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199308

SABLE,TRIM4#

main55311-60130-03iHDJ80..RHD199001-199308

BLUISH GRAY,TRIM1#

main55311-60130-06iHDJ80..RHD199001-199308

SABLE,TRIM4#

main55311-60160-03iHDJ80..RHD199001-199002

W(AUTO AIR CONDITIONER),BLUISH GRAY,TRIM1#

main55311-60160-06iHDJ80..RHD199001-199002

W(AUTO AIR CONDITIONER),SABLE,TRIM4#

main55311-60330-B0iFZJ80,HDJ80,HZJ80..LHD199308-199501

BLUISH GRAY,TRIM1#

main55311-60330-E0iFZJ80,HDJ80,HZJ80..LHD199308-199501

SABLE,TRIM4#

main55311-60340-B0iHDJ80..RHD199308-199407

BLUISH GRAY,TRIM1#

main55311-60340-E0iHDJ80..RHD199308-199407

SABLE,TRIM4#

main55311-60390-B0iFZJ80,HDJ80,HZJ80..LHD199501-199605

BLUISH GRAY,TRIM1#

main55311-60390-E0iFZJ80,HDJ80,HZJ80..LHD199501-199605

OAK,TRIM4#

main55311-60400-B0iFZJ80,HDJ80..RHD199501-199608

BLUISH GRAY,TRIM1#

main55311-60400-E0iFZJ80,HDJ80..RHD199501-199608

OAK,TRIM4#

main55311-60590-B0iFZJ80,HDJ80..RHD199608-199801

BLUISH GRAY,TRIM1#

main55311-60590-E0iFZJ80,HDJ80..RHD199608-199801

OAK,TRIM4#

main55311-60600-B0iFZJ80,HDJ80,HZJ80..GX,STD199608-199801

BLUISH GRAY,TRIM1#

main55311-60600-E0iFZJ80,HDJ80,HZJ80..GX,STD199608-199801

OAK,TRIM4#

main55311-60720-B0iFZJ80,HDJ80,HZJ80..LHD199605-199608

BLUISH GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-60010iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

main55306-60020iHDJ80..RHD199001-199407

main55306-60030iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

W(WINCH)

main55306-60040iHDJ80..RHD199001-199407

W(WINCH)

main55306-60050iFZJ80,HDJ80,HZJ80..LHD199501-199801

main55306-60060iFZJ80,HDJ80..RHD199501-199801

main55306-60070iFZJ80,HDJ80,HZJ80..LHD199503-199801

W(WINCH)

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-60010iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

main55307-60020iHDJ80..RHD199001-199407

main55307-60030iFZJ80,HDJ80,HZJ80..LHD199501-199801

main55307-60040iFZJ80,HDJ80..RHD199501-199801

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-60020iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

main55321-60030iHDJ80..RHD199001-199407

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-60020iHDJ80..RHD199001-199407

main55326-60080iFZJ80,HDJ80..RHD199501-199801

55327ASTAY, INSTRUMENT PANEL, NO.2

main55327-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

55329BSTAY, INSTRUMENT PANEL, NO.4

main55329-60010iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

main55329-60020iHDJ80..RHD199001-199407

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-60010iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

main55330-60020iHDJ80..RHD199001-199407

main55330-60030iFZJ80,HDJ80..GX,STD; HZJ80199608-199801

W/O(*80)

main55330-60040iFZJ80,HDJ80..RHD199501-199608

main55330-60050iFZJ80,HDJ80..LHD..(GX,VX)199501-199608

W(*80)

main55330-60090iFZJ80,HDJ80..RHD199608-199801

55355APLATE, INSTRUMENT PANEL

main55355-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199308

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-60030-03iFJ80,HDJ80,HZJ80..LHD199001-199201

BLUISH GRAY,TRIM1#

main55401-60030-06iFJ80,HDJ80,HZJ80..LHD199001-199201

SABLE,TRIM4#

main55401-60040-03iHDJ80..RHD199001-199407

BLUISH GRAY,TRIM1#

main55401-60040-06iHDJ80..RHD199208-199407

SABLE,TRIM4#

main55401-60070-03iFJ80199001-199201

COLD SPEC,BLUISH GRAY,TRIM1#

main55401-60070-06iFJ80199001-199201

COLD SPEC,SABLE,TRIM4#

main55401-60080-03iHDJ80..RHD199208-199407

COLD SPEC,BLUISH GRAY,TRIM1#

main55401-60080-06iHDJ80..RHD199001-199407

COLD SPEC,SABLE,TRIM4#

main55401-60130-B0iFZJ80,HDJ80..GX,STD; HZJ80199608-199801

BLUISH GRAY,TRIM1#; W(ASSIST GRIP) & W/O(*80),BLUISH GRAY,TRIM1#

main55401-60130-E0iFZJ80,HDJ80..GX,STD; HZJ80199608-199801

OAK,TRIM4#; W(ASSIST GRIP) & W/O(*80),OAK,TRIM4#

main55401-60140-B0iFZJ80,HDJ80..RHD199501-199608

BLUISH GRAY,TRIM1#

main55401-60140-E0iFZJ80,HDJ80..RHD199501-199608

OAK,TRIM4#

main55401-60150-B0iFZJ80,HDJ80..LHD199608-199801

BLUISH GRAY,TRIM1#

main55401-60150-E0iFZJ80,HDJ80..LHD199608-199801

OAK,TRIM4#

main55401-60160-B0iFZJ80,HDJ80..RHD199608-199801

BLUISH GRAY,TRIM1#

main55401-60160-E0iFZJ80,HDJ80..RHD199608-199801

OAK,TRIM4#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-60010-03iFZJ80,HDJ80..LHD..VX199208-199501

BLUISH GRAY,TRIM1#

main55408-60010-06iFJ80,FZJ80,HDJ80..LHD..VX199001-199501

SABLE,TRIM4#

main55408-60020-03iHDJ80..RHD199208-199407

BLUISH GRAY,TRIM1#

main55408-60020-06iHDJ80..RHD199001-199407

SABLE,TRIM4#

main55472-60010-03iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199501

BLUISH GRAY,TRIM1#

main55472-60010-06iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199501

SABLE,TRIM4#

main55472-60030-B0iFZJ80,HDJ80,HZJ80199501-199801

BLUISH GRAY,TRIM1#

main55472-60030-E0iFZJ80,HDJ80,HZJ80199501-199801

OAK,TRIM4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-60010-B0iFZJ80,HDJ80..VX199208-199501

BLUISH GRAY,TRIM1#

main55409-60010-E0iFZJ80,HDJ80..VX199208-199501

SABLE,TRIM4#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-60050iFJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX); HZJ80..STD199001-199501

W(DIGITAL CLOCK)

main55411-60060iHDJ80..RHD199001-199407

main55411-60070iHZJ80..STD199001-199501

main55411-60110iFZJ80,HDJ80,HZJ80..LHD199501-199801

main55411-60120iFZJ80,HDJ80..RHD199501-199801

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-60020iHDJ80..LHD..ATM199108-199201

*FRG

main55405-60030iHDJ80..LHD..MTM..VX; HZJ80;HDJ80..SOB;HDJ80..ATM..GX199003-199108

*FRG & W(RADIO); *FRG & W(RADIO) OR ITALY SPEC & W(RADIO)

main55405-60040iHDJ80..RHD199001-199407

UNITED KINGDOM SPEC

main55412-60010iFJ80,HDJ80,HZJ80..LHD199001-199108

W(RADIO)

main55412-60020iHDJ80..RHD199001-199407

main55412-60030iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

main55412-60090iFZJ80,HDJ80..LHD199608-199801

W(RADIO)

main55412-60100iFZJ80,HDJ80..RHD199501-199801

main55412-60110iFZJ80,HDJ80..LHD199501-199801

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-60010-03iFZJ80,HDJ80,HZJ80..LHD199208-199501

BLUISH GRAY,TRIM1#

main55432-60010-06iFJ80,HDJ80,HZJ80..GX,STD199001-199208

SABLE,TRIM4#

main55432-60020-03iHDJ80..RHD199208-199407

BLUISH GRAY,TRIM1#

main55432-60020-06iHDJ80..RHD199208-199407

SABLE,TRIM4#

main55432-60140-03iHDJ80..LHD..MTM..VX; HZJ80..SOB..GX;HDJ80..LHD..ATM199208-199501

*FRG OR CANARY OR ITALY SPEC,BLUISH GRAY,TRIM1#; *FRG,BLUISH GRAY,TRIM1#

main55432-60140-06iHZJ80;HDJ80..SOB;HDJ80..ATM..GX199001-199108

*FRG,SABLE,TRIM4#

main55432-60180-B0iFZJ80,HDJ80,HZJ80..LHD199501-199801

BLUISH GRAY,TRIM1#

main55432-60180-E0iFZJ80,HDJ80,HZJ80..LHD199501-199801

OAK,TRIM4#

main55432-60270-B0iFZJ80,HDJ80..RHD199501-199801

BLUISH GRAY,TRIM1#

main55432-60270-E0iFZJ80,HDJ80..RHD199501-199801

OAK,TRIM4#

main55480-60010-03iFJ80,HDJ80..LHD..VX; HZJ80..STD199001-199208

BLUISH GRAY,TRIM1#; W(WINCH),BLUISH GRAY,TRIM1#

main55480-60010-06iFJ80,HDJ80..LHD..VX; HZJ80..STD199001-199208

SABLE,TRIM4#; W(WINCH),SABLE,TRIM4#

main55480-60020-03iHDJ80..RHD199001-199208

BLUISH GRAY,TRIM1#

main55480-60020-06iHDJ80..RHD199001-199208

SABLE,TRIM4#

main55480-60090-03iHDJ80..RHD199001-199208

UNITED KINGDOM SPEC,BLUISH GRAY,TRIM1#

main55480-60090-06iHDJ80..RHD199001-199208

UNITED KINGDOM SPEC,SABLE,TRIM4#

main55480-60130-03iHDJ80..LHD..MTM..VX199108-199208

*FRG OR CANARY OR ITALY SPEC,BLUISH GRAY,TRIM1#

main55480-60130-06iHDJ80..LHD..ATM..VX199003-199208

*FRG,SABLE,TRIM4#

main55480-60170-03iHDJ80..RHD199208-199407

UNITED KINGDOM SPEC,BLUISH GRAY,TRIM1#

main55480-60170-06iHDJ80..RHD199208-199407

UNITED KINGDOM SPEC,SABLE,TRIM4#

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-60010iFJ80,FZJ80,HDJ80..VX199001-199501

main55445-60030iFZJ80,HDJ80,HZJ80..GX,STD199208-199501

main55445-60050-B0iHDJ80..VX199505-199605

BLUISH GRAY,TRIM1#

main55445-60050-E0iFZJ80,HDJ80..VX199501-199505

OAK,TRIM4#

main55445-60060iFZJ80,HDJ80..VX199710-199801

main55445-60060-B0iFZJ80,HDJ80,HZJ80..GX,STD199710-199801

BLUISH GRAY,TRIM1#

main55445-60060-E0iFZJ80,HDJ80,HZJ80..GX,STD199501-199505

OAK,TRIM4#

main55445-60070-B0iFZJ80,HDJ80,HZJ80199605-199710

BLUISH GRAY,TRIM1#

main55445-60070-E0iFZJ80,HZJ80;HDJ80..GX,STD199505-199605

OAK,TRIM4#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

55501ADOOR SUB-ASSY, GLOVE COMPARTMENT

main55501-60050-03iFJ80,HDJ80,HZJ80..LHD199001-199010

BLUISH GRAY,TRIM1#

main55501-60050-06iFJ80,HDJ80,HZJ80..LHD199001-199010

SABLE,TRIM4#

main55501-60051-03iFZJ80,HDJ80,HZJ80..LHD199208-199501

BLUISH GRAY,TRIM1#

main55501-60051-06iFZJ80,HDJ80,HZJ80..LHD199208-199501

SABLE,TRIM4#

main55501-60060-03iHDJ80..RHD199001-199108

BLUISH GRAY,TRIM1#

main55501-60060-06iHDJ80..RHD199001-199108

SABLE,TRIM4#

main55501-60061-B0iHDJ80..RHD199108-199407

BLUISH GRAY,TRIM1#

main55501-60061-E0iHDJ80..RHD199108-199407

SABLE,TRIM4#

main55501-60110-B0iFZJ80,HDJ80,HZJ80199501-199608

BLUISH GRAY,TRIM1#

main55501-60110-E0iFZJ80,HDJ80,HZJ80199501-199608

OAK,TRIM4#

main55501-60150-B0iFZJ80,HDJ80,HZJ80199608-199801

BLUISH GRAY,TRIM1#

main55501-60150-E0iFZJ80,HDJ80,HZJ80199608-199801

OAK,TRIM4#

55521CCOVER, STEREO OPENING

main55521-12110iFJ80,HDJ80,HZJ80..LHD199001-199208

BOX TYPE

main55521-14050iHZJ80..SOB199310-199501

*EX-USSR SPEC

main55521-14050-01iHZJ80..SOB199208-199310

*EX-USSR,BLACK,TRIM1#,4#

main55521-20120iHZJ80..LUB;FZJ80,HDJ80..LHD; HZJ80..SOB..GX; HZJ80..STD199305-199501

W(1/2 DIN RADIO)

main55521-60030iFZJ80,HDJ80,HZJ80..LHD199304-199501

55522BCOVER, RADIO TUNER OPENING

main55522-20060iFZJ80,HDJ80..LHD199501-199801

TYPE B

main55522-32010iFZJ80,HDJ80..RHD199001-199801

TYPE A

55524DCOVER, SWITCH BASE HOLE, NO.5

main55524-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

55524ECOVER, SWITCH BASE HOLE, NO.6

main55524-60010iHDJ80,HZJ80..MTM199208-199501

55524FCOVER, SWITCH BASE HOLE, NO.7

main55536-60010iHDJ80..RHD199001-199407

55524GCOVER, SWITCH BASE HOLE, NO.2

main55524-60010iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

55531BCOVER, CHOKE KNOB HOLE

main55477-10010-11iFJ80,FZJ80,HDJ80,HZJ80..LHD199103-199501

BLACK,TRIM1#,4#

main55477-10050iFJ80,HDJ80,HZJ80..LHD199001-199103

main55617-10010-11iHDJ80..RHD199001-199208

BLACK,TRIM1#,4#

main55617-10010-22iHDJ80..RHD199208-199407

BLACK,TRIM1#,4#

55539COVER, SPARE SWITCH HOLE

main55536-60010iFZJ80,HDJ80..VX199501-199801

main55539-32010-11iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199308

BLACK,TRIM1#,4#

main55539-32010-C0iFZJ80,HDJ80,HZJ80..GX,STD199308-199801

BLACK,TRIM1#,4#

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-32010-11iFJ80,HDJ80,HZJ80199001-199201

BLACK,TRIM1#,4#

main55539-32010-C0iFZJ80,HDJ80..LHD199501-199801

BLACK,TRIM1#,4#

55539DCOVER, SPARE SWITCH HOLE

main55539-32010-11iFJ80,FZJ80,HDJ80,HZJ80199001-199308

BLACK,TRIM1#,4#

main55539-32010-C0iFZJ80,HDJ80,HZJ80199308-199801

BLACK,TRIM1#,4#

55539ECOVER, SPARE SWITCH HOLE

main55539-32010-11iFJ80,FZJ80,HDJ80,HZJ80199001-199308

BLACK,TRIM1#,4#

main55539-32010-C0iFZJ80,HDJ80,HZJ80199308-199801

BLACK,TRIM1#,4#

55545COVER, FUSE BOX OPENING

main55540-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

main55545-60040-B0iFZJ80,HDJ80,HZJ80199501-199605

BLUISH GRAY,TRIM1#

main55545-60040-E0iFZJ80,HDJ80,HZJ80199501-199605

OAK,TRIM4#

main55545-60050-B0iFZJ80,HDJ80,HZJ80199605-199801

BLUISH GRAY,TRIM1#

main55545-60050-E0iFZJ80,HDJ80,HZJ80199605-199801

OAK,TRIM4#

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-95J00iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199608

main55547-95J00-C0iFZJ80,HDJ80,HZJ80..GX,STD199608-199801

BLACK

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-60010iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

main55558-60020iHDJ80..RHD199001-199407

main55558-60030iFZJ80,HDJ80,HZJ80..LHD199501-199801

main55558-60040iFZJ80,HDJ80..RHD199501-199801

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

main55561-60030iFZJ80,HDJ80,HZJ80199501-199512

main55561-60060iFZJ80,HDJ80,HZJ80199512-199801

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-89101-13iFJ80,FZJ80,HDJ80,HZJ80199001-199801

BLUISH GRAY,TRIM1#

main55565-89101-16iFJ80,FZJ80,HDJ80,HZJ80199001-199501

SABLE,TRIM4#

main55565-89101-E1iFZJ80,HDJ80,HZJ80199501-199801

OAK,TRIM4#

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-89101-13iFJ80,FZJ80,HDJ80,HZJ80199001-199801

BLUISH GRAY,TRIM1#

main55569-89101-16iFJ80,FZJ80,HDJ80,HZJ80199001-199501

SABLE,TRIM4#

main55569-89101-E1iFZJ80,HDJ80,HZJ80199501-199801

OAK,TRIM4#

55573AHINGE, GLOVE COMPARTMENT DOOR

main55573-32010×2iFJ80,FZJ80,HDJ80,HZJ80199001-199801

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

main55596-60010iFZJ80,HDJ80,HZJ80..GX,VX199501-199801

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-60010iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

main55650-60020iHDJ80..RHD199001-199407

main55650-60050iFZJ80,HDJ80,HZJ80..LHD199501-199801

main55650-60060iFZJ80,HDJ80..RHD199501-199801

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-60030-03iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

BLUISH GRAY,TRIM1#

main55660-60030-06iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

SABLE,TRIM4#

main55660-60040-03iHDJ80..RHD199001-199407

BLUISH GRAY,TRIM1#

main55660-60040-06iHDJ80..RHD199001-199407

SABLE,TRIM4#

main55660-60090iFZJ80,HDJ80,HZJ80..LHD199501-199801

main55660-60100iFZJ80,HDJ80..RHD199501-199801

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199501

main55670-60030iFZJ80,HDJ80,HZJ80..LHD199501-199801

main55670-60040iFZJ80,HDJ80..RHD199501-199801

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-89101iFJ80;HDJ80..VX; HDJ80,HZJ80..GX,STD199201-199208

main55680-89101-C0iFZJ80,HDJ80,HZJ80..GX; FZJ80..VX; HDJ80,HZJ80..STD,VX199208-199501

BLACK,TRIM1#; BLACK,TRIM1#,4#

55950NOZZLE ASSY, DEFROSTER

main55950-60010iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

main55950-60020iHDJ80..RHD199001-199407

main55950-60040iFZJ80,HDJ80,HZJ80..LHD199501-199801

main55950-60050iFZJ80,HDJ80..RHD199501-199801

55955APLATE, DEFROSTER NOZZLE OPENING, NO.1

main55955-60020-03iHDJ80,HZJ80..LHD199201-199501

BLUISH GRAY,TRIM1#

main55955-60020-06iHDJ80,HZJ80..LHD199208-199501

SABLE,TRIM4#

main55955-60030-03iHDJ80..RHD199001-199407

BLUISH GRAY,TRIM1#

main55955-60030-06iHDJ80..RHD199208-199407

SABLE,TRIM4#

main55955-60040-B0iFZJ80,HDJ80..LHD199501-199801

BLUISH GRAY,TRIM1#

main55955-60040-E0iFZJ80,HDJ80..LHD199501-199801

OAK,TRIM4#

main55955-60050-B0iFZJ80,HDJ80..RHD199501-199801

BLUISH GRAY,TRIM1#

main55955-60050-E0iFZJ80,HDJ80..RHD199501-199801

OAK,TRIM4#

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010×2iFJ80,HDJ80,HZJ80199001-199201

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-60010-03iFJ80199001-199201

COLD SPEC,BLUISH GRAY,TRIM1#

main55961-60010-06iFJ80,FZJ80199201-199501

SABLE,TRIM4#

main55961-60020-03iHDJ80..RHD199001-199407

COLD SPEC,BLUISH GRAY,TRIM1#

main55961-60020-06iHDJ80..RHD199001-199407

COLD SPEC,SABLE,TRIM4#

main55961-60040-B0iFZJ80..LHD; HDJ80..LHD; HZJ80199501-199801

BLUISH GRAY,TRIM1#; COLD SPEC,BLUISH GRAY,TRIM1#

main55961-60040-E0iFZJ80..LHD; HDJ80..LHD; HZJ80199501-199801

COLD SPEC,OAK,TRIM4#; OAK,TRIM4#

main55961-60050-B0iFZJ80..RHD; HDJ80..RHD199501-199801

COLD SPEC,BLUISH GRAY,TRIM1#

main55961-60050-E0iFZJ80..RHD; HDJ80..RHD199501-199801

COLD SPEC,OAK,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-60010-03iFJ80,FZJ80199201-199501

BLUISH GRAY,TRIM1#

main55962-60010-06iHDJ80,HZJ80..LHD199001-199501

COLD SPEC,SABLE,TRIM4#

main55962-60020-03iHDJ80..RHD199001-199407

COLD SPEC,BLUISH GRAY,TRIM1#

main55962-60020-06iHDJ80..RHD199001-199407

COLD SPEC,SABLE,TRIM4#

main55962-60030-B0iFZJ80..LHD; HDJ80..LHD; HZJ80199501-199801

BLUISH GRAY,TRIM1#; COLD SPEC,BLUISH GRAY,TRIM1#

main55962-60030-E0iFZJ80..LHD; HDJ80..LHD; HZJ80199501-199801

COLD SPEC,OAK,TRIM4#; OAK,TRIM4#

main55962-60040-B0iFZJ80..RHD; HDJ80..RHD199501-199801

COLD SPEC,BLUISH GRAY,TRIM1#

main55962-60040-E0iFZJ80..RHD; HDJ80..RHD199501-199801

COLD SPEC,OAK,TRIM4#

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-60010iFJ80199001-199201

COLD SPEC

main55971-60020iHDJ80..RHD199001-199407

COLD SPEC

main55971-60040iFZJ80..LHD; HDJ80..LHD; HZJ80199501-199801

COLD SPEC

main55971-60050iFZJ80..RHD; HDJ80..RHD199501-199801

COLD SPEC

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-60010iFJ80199001-199201

main55972-60020iFZJ80; HDJ80; HZJ80199501-199801

9010508120

main90105-08120

9011906166

main90119-06166

9011906429

main90119-06429

9011908193

main90119-08193

9015950105

main90159-50105

9015950138

main90159-50138

9015950163

main90159-50163

9017908102

main90179-08102

9018305103

main90183-05103

9018905024

main90189-05024

9025404016

main90254-04016

9046714010

main90467-14010

9046804147

main90468-04147

9046804157

main90468-04157

9356855014

main93568-55014

9356855018

main93568-55018

65 parts on this diagram · 7 diagrams in section
