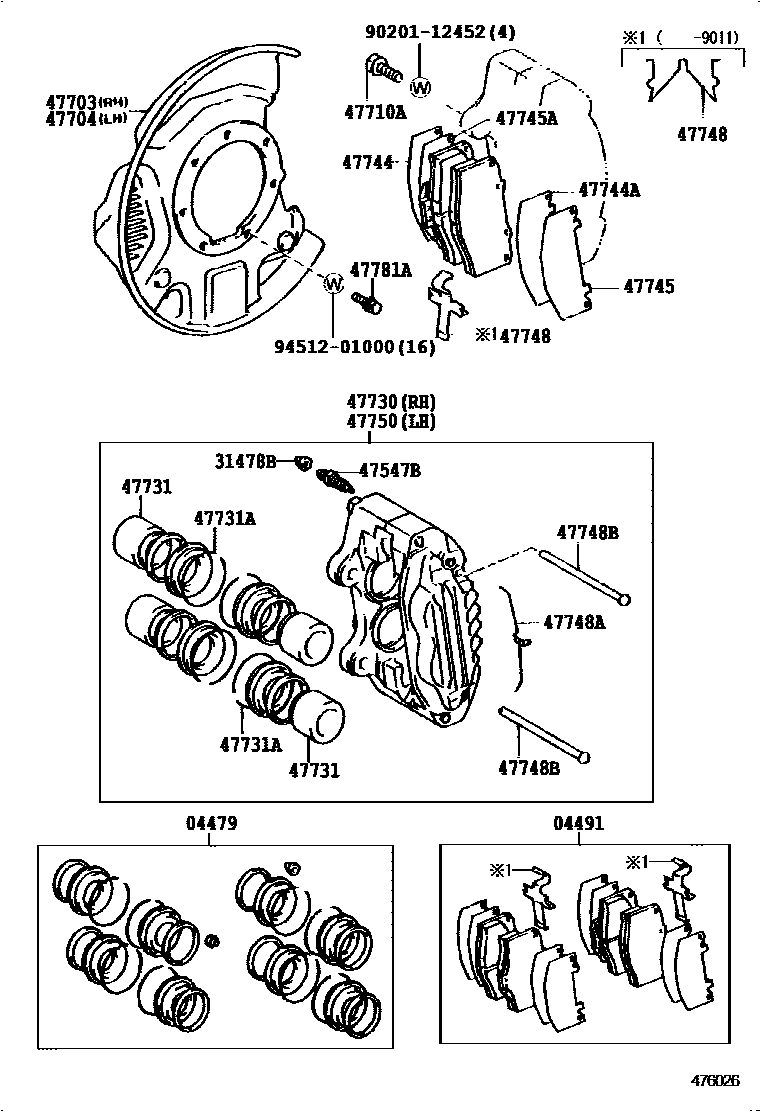

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

04491PAD KIT, DISC BRAKE, FRONT

main04491-60160iFJ80,HDJ80,HZJ80199001-199208

main04491-60180iFZJ80,HDJ80,HZJ80199208-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iFJ80,FZJ80,HDJ80,HZJ80199001-199801

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030×2iFJ80,FZJ80,HDJ80,HZJ80199001-199801

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-60050iFJ80,HDJ80,HZJ80199001-199208

W(AIR SCOOP)

main47781-60060iFJ80,HDJ80,HZJ80..GX,VX; HZJ80..STD199001-199208

main47781-60100iFZJ80,HDJ80,HZJ80199208-199801

W(AIR SCOOP)

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-60050iFJ80,HDJ80,HZJ80199001-199208

W(AIR SCOOP)

main47782-60060iFJ80,HDJ80,HZJ80..GX,VX; HZJ80..STD199001-199208

main47782-60100iFZJ80,HDJ80,HZJ80199208-199801

W(AIR SCOOP)

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12144×4iFJ80,HDJ80,HZJ80199001-199208

*12-1.25PX38-23

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60030iFJ80,HDJ80,HZJ80199001-199208

main47730-60060iFZJ80,HDJ80,HZJ80199208-199506

main47730-60061iFZJ80,HDJ80,HZJ80199506-199801

47731PISTON, FRONT DISC BRAKE

main47731-60010×8iFJ80,FZJ80,HDJ80,HZJ80199001-199801

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-50003×8iFJ80,FZJ80,HDJ80,HZJ80199001-199801

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-35020×2iFJ80,FZJ80,HDJ80,HZJ80199001-199801

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-35020×2iFJ80,FZJ80,HDJ80,HZJ80199001-199801

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-35020×2iFJ80,FZJ80,HDJ80,HZJ80199001-199801

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-35020×2iFJ80,FZJ80,HDJ80,HZJ80199001-199801

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60020×2iFJ80,HDJ80,HZJ80199001-199011

main47748-60030×2iFJ80,HDJ80,HZJ80199011-199208

main47748-60040×2iFZJ80,HDJ80,HZJ80199208-199801

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12015×2iFJ80,FZJ80,HDJ80,HZJ80199001-199801

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06014×4iFJ80,HDJ80,HZJ80199001-199208

main90240-06016×4iFZJ80,HDJ80,HZJ80199208-199801

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60030iFJ80,HDJ80,HZJ80199001-199208

main47750-60060iFZJ80,HDJ80,HZJ80199208-199506

main47750-60061iFZJ80,HDJ80,HZJ80199506-199801

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10166×16iFJ80,HDJ80,HZJ80199001-199208

9020112452

main90201-12452

9451201000

main94512-01000

21 parts on this diagram · 2 diagrams in section
