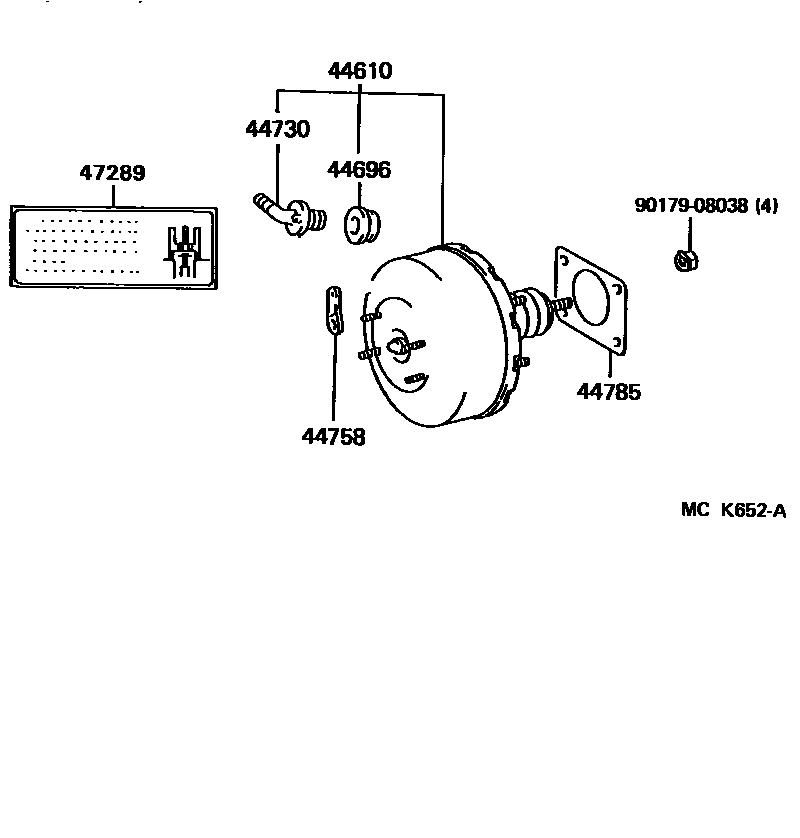

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-60560iFJ80199001-199208

main44610-60570iHDJ80..RHD199001-199208

main44610-60580iHDJ80,HZJ80..LHD199001-199208

main44610-60762iFZJ80..RHD199501-199505

main44610-60763iFZJ80..RHD199505-199801

main44610-60770iHDJ80..RHD199208-199308

main44610-60780iHDJ80,HZJ80..LHD199208-199308

main44610-60781iHDJ80,HZJ80..LHD199308-199501

main44610-60782iHDJ80,HZJ80..LHD199501-199505

main44610-60783iHDJ80,HZJ80..LHD199505-199801

main44610-60790iFZJ80199208-199308

main44610-60791iFZJ80..LHD199308-199505

main44610-60792iFZJ80..LHD199505-199801

main44610-60801iHDJ80..RHD199308-199407

main44610-60802iHDJ80..RHD199501-199505

main44610-60803iHDJ80..RHD199505-199801

44696GROMMET, CHECK VALVE

main90480-24439iFJ80;FZJ80..RHD199001-199801

main90480-24517iFZJ80..LHD199208-199801

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iFJ80;FZJ80..RHD199001-199801

main44730-14060iFZJ80..LHD199208-199801

main44730-60050×2iHDJ80..MTM..VX199001-199501

44758BRACKET, VACUUM CHECK VALVE

main44758-60050iFJ80199001-199208

main44758-60060iFZJ80..LHD199208-199801

main44758-60080iFZJ80..RHD199501-199801

44785GASKET, BRAKE BOOSTER

main44785-35020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

47289LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION

main47289-60010iHDJ80,HZJ80199001-199801

9017908038

main90179-08038

7 parts on this diagram · 4 diagrams in section
