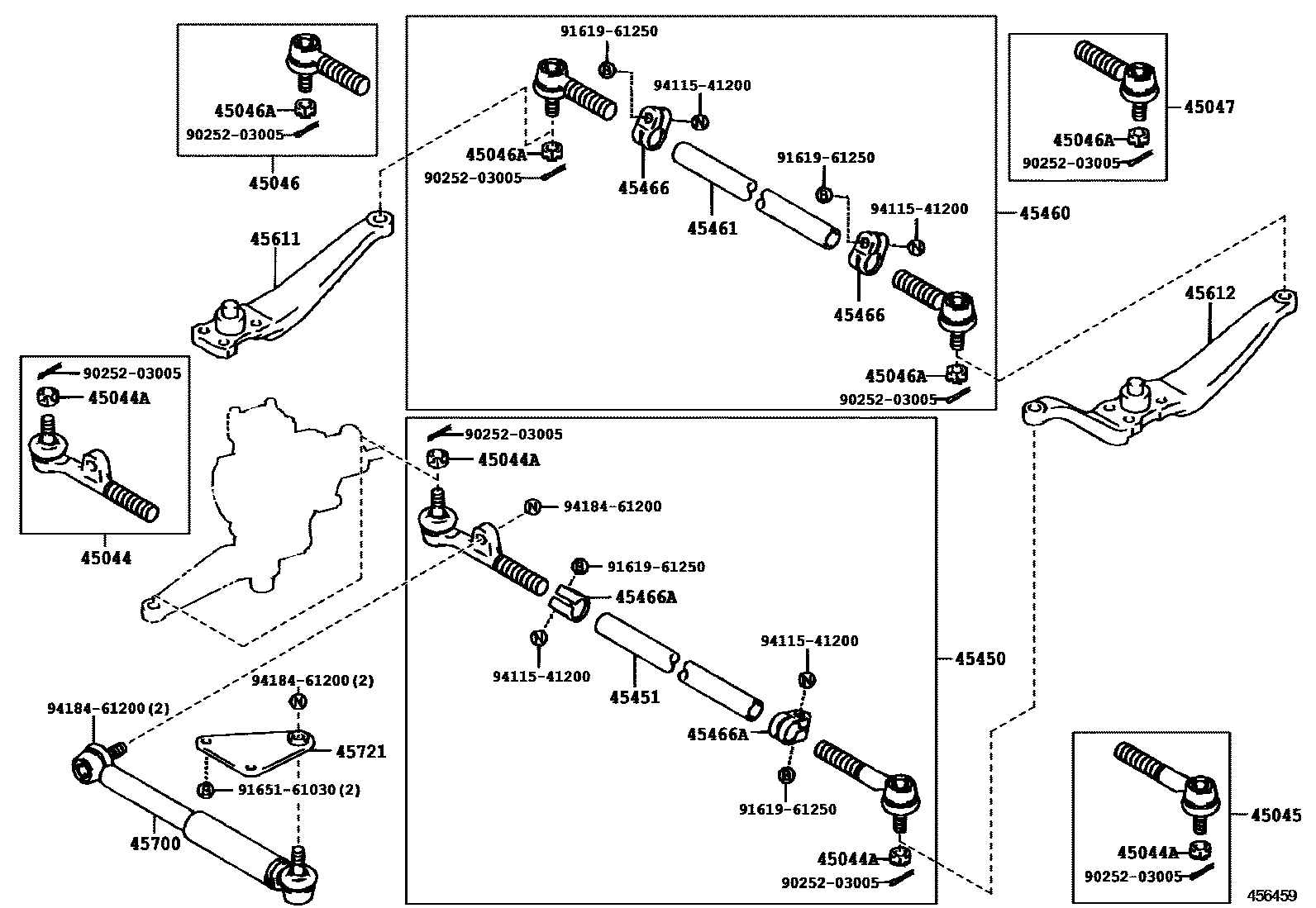

FRONT STEERING GEAR & LINK
45044END SUB-ASSY, STEERING RELAY ROD, RH
45044ANUT, CASTLE(FOR RELAY ROD)
45045END SUB-ASSY, STEERING RELAY ROD, LH
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45450ROD ASSY, STEERING RELAY
45451ROD, STEERING RELAY
45460ROD ASSY, TIE, RH
45461ROD, STEERING TIE
45466CLAMP, TIE ROD END
45466ACLAMP, RELAY ROD END
45611ARM, STEERING KNUCKLE, RH
45612ARM, STEERING KNUCKLE, LH
45700DAMPER ASSY, STEERING
45721BRACKET, STEERING DAMPER
9025203005
main90252-03005
9161961250
main91619-61250
9165161030
main91651-61030
9411541200
main94115-41200
9418461200
main94184-61200
21 parts on this diagram · 7 diagrams in section
