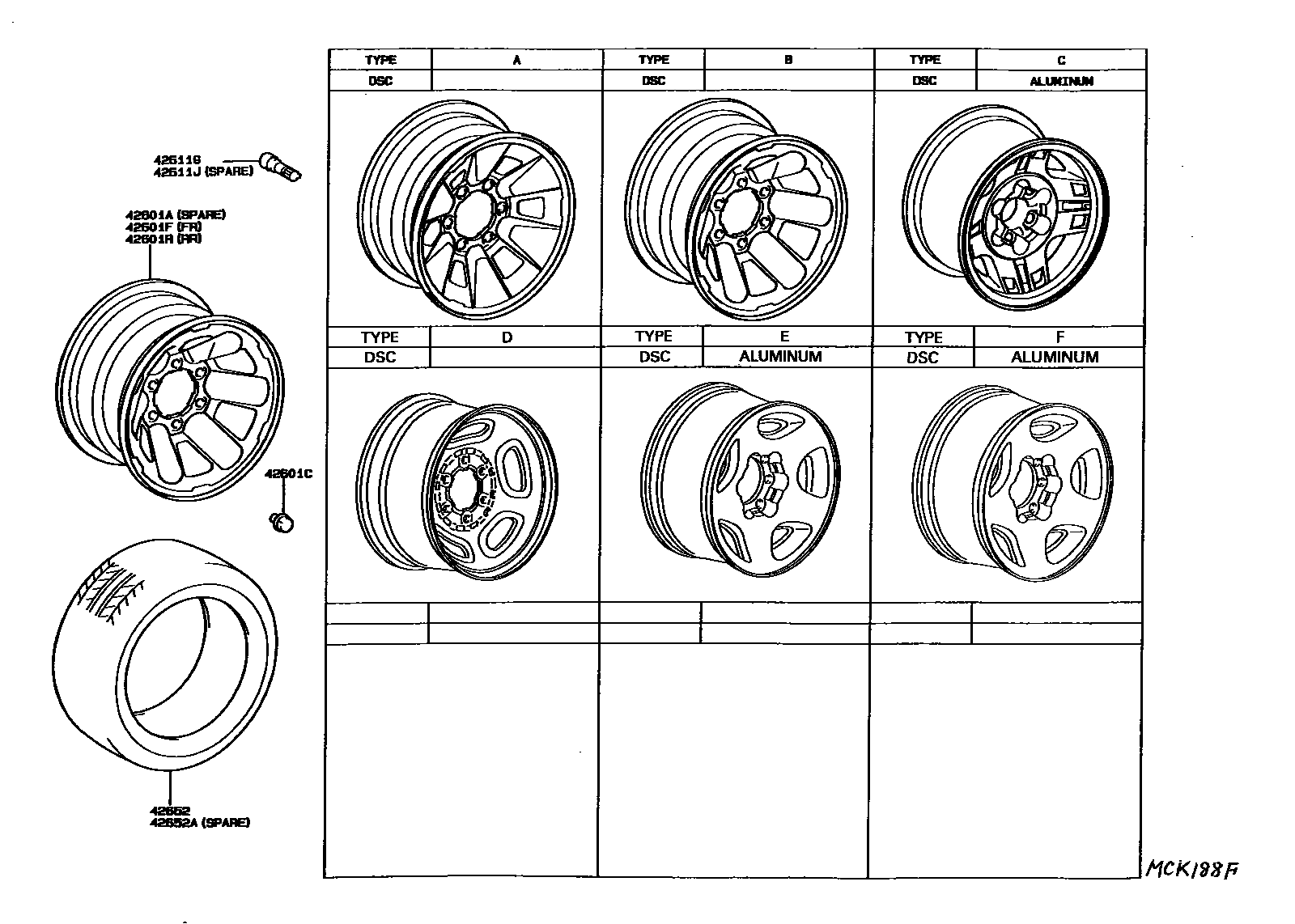

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601AWHEEL, DISC (FOR SPARE)

main42601-35490iFJ80,HDJ80,HZJ80..GX,VX199001-199501

6JX16,#,PLATED WHEEL,TYPE A

main42601-35570-03iFJ80,HDJ80,HZJ80..GX,VX199001-199208

15X7JJ, #,PLATED WHEEL, TYPE B,SILVER M.

main42601-60360-03iHDJ80199405-199501

8JJX16, #,PLATED WHEEL,TYPE D,SILVER M

main42601-60430-03iFJ80,HDJ80,HZJ80199001-199501

16X6J,OFFSET 30, #,TYPE A,SILVER M.

main42611-60040iFJ80,HDJ80,HZJ80..GX,VX199001-199208

7JJ-15, #,ALUMINUM WHEEL, TYPE C

main42611-60081iFZJ80,HDJ80199406-199501

16X8JJ U-MOLD,ALUMINUM WHEEL,TYPE E

main42611-60090iFZJ80,HDJ80199405-199501

16X8JJ, #,16X8JJ,ALUMINUM WHEEL,TYPE F

main42611-60100iFZJ80,HDJ80..GX,VX199501-199605

16X8JJ, #,16X8JJ,ALUMINUM WHEEL,TYPE E

main42611-60110iFZJ80,HDJ80..GX,VX199605-199801

16X8JJ, #,16X8JJ,ALUMINUM WHEEL,TYPE F

42601CNUT, HUB (FOR AXLE)

main90942-01077×24iFZJ80,HDJ80..GX,VX199501-199801

W(ALUMINUM WHEEL)

main90942-01081×24iFZJ80,HDJ80199208-199405

W(ALUMINUM WHEEEL)

main90942-01082×24iFJ80,FZJ80,HDJ80,HZJ80199001-199801

42601FWHEEL, DISC (FOR FRONT)

main42601-35490×2iFJ80,HDJ80,HZJ80..GX,VX199001-199501

6JX16,#,PLATED WHEEL,TYPE A

main42601-35570-03×2iFJ80,HDJ80,HZJ80..GX,VX199001-199208

15X7JJ, #,PLATED WHEEL, TYPE B,SILVER M.

main42601-60360-03×2iHDJ80199208-199405

8JJX16, #,PLATED WHEEL,TYPE D,SILVER M

main42601-60430-03×2iFZJ80,HDJ80,HZJ80199501-199801

16X6J,OFFSET 30, #,TYPE A,SILVER M.

main42611-60040×2iFJ80,HDJ80,HZJ80..GX,VX199001-199208

7JJ-15, #,ALUMINUM WHEEL, TYPE C

main42611-60081×2iFZJ80,HDJ80199406-199501

16X8JJ U-MOLD,ALUMINUM WHEEL,TYPE E

main42611-60090×2iFZJ80,HDJ80199405-199501

16X8JJ, #,16X8JJ,ALUMINUM WHEEL,TYPE F

main42611-60100×2iFZJ80,HDJ80..GX,VX199501-199605

16X8JJ, #,16X8JJ,ALUMINUM WHEEL,TYPE E

main42611-60110×2iFZJ80,HDJ80..GX,VX199605-199801

16X8JJ, #,16X8JJ,ALUMINUM WHEEL,TYPE F

42601RWHEEL, DISC (FOR REAR)

main42601-35490×2iFJ80,HDJ80,HZJ80..GX,VX199001-199501

6JX16,#,PLATED WHEEL,TYPE A

main42601-35570-03×2iFJ80,HDJ80,HZJ80..GX,VX199001-199208

15X7JJ, #,PLATED WHEEL, TYPE B,SILVER M.

main42601-60360-03×2iHDJ80199208-199405

8JJX16, #,PLATED WHEEL,TYPE D,SILVER M

main42601-60430-03×2iFJ80,HDJ80,HZJ80199001-199501

16X6J,OFFSET 30, #,TYPE A,SILVER M.

main42611-60040×2iFJ80,HDJ80,HZJ80..GX,VX199001-199208

7JJ-15, #,ALUMINUM WHEEL, TYPE C

main42611-60081×2iFZJ80,HDJ80199406-199501

ALUMINUM WHEEL,TYPE E

main42611-60090×2iFZJ80,HDJ80199405-199501

16X8JJ, #,16X8JJ,ALUMINUM WHEEL,TYPE F

main42611-60100×2iFZJ80,HDJ80..GX,VX199501-199605

16X8JJ, #,16X8JJ,ALUMINUM WHEEL,TYPE E

main42611-60110×2iFZJ80,HDJ80..GX,VX199605-199801

16X8JJ, #,16X8JJ,ALUMINUM WHEEL,TYPE F

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iFZJ80,HDJ80199208-199801

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iFZJ80,HDJ80199208-199801

42652TIRE

main42605-6A120×4iFJ80,HDJ80,HZJ80..GX,VX199001-199208

265/75R15,*D/L

main42605-6A150×4iFJ80,HDJ80,HZJ80..DSL,EFI,TD2199001-199801

215/80R16,*D/L

main42605-6A160×4iFJ80,HDJ80,HZJ80199001-199401

215/80R16,*B/S

main42605-6A161×4iHDJ80,HZJ80..DSL,TD2199401-199801

215/80R16,*B/S

main42605-6A190×4iFJ80,HDJ80,HZJ80..GX,VX199001-199208

265/75R15,*B/S

main42652-60141×4iFZJ80; HDJ80199411-199501

275/70R16,*D/L

main42652-60142×4iFZJ80,HDJ80..GX,VX199605-199801

275/70R16,*D/L

main42652-60151×4iFZJ80; HDJ80199208-199501

275/70R16,*B/S

main42652-60152×4iFZJ80,HDJ80..GX,VX199605-199801

275/70R16,*B/S

main42652-60230×4iFZJ80,HDJ80199501-199605

215/80R16,*D/L

main42652-60241×4iFZJ80,HDJ80199501-199605

215/80R16,*B/S

main42652-60320×4iFZJ80,HDJ80199605-199801

215/80R16,*D/L

main42652-60330×4iFZJ80,HDJ80199605-199801

215/80R16,*B/S

42652ATIRE (FOR SPARE)

main42605-6A120iFJ80,HDJ80,HZJ80..GX,VX199001-199208

265/75R15,*D/L

main42605-6A150iFJ80,HDJ80,HZJ80..DSL,EFI,TD2199001-199801

215/80R16,*D/L

main42605-6A160iFJ80,HDJ80,HZJ80199001-199401

215/80R16,*B/S

main42605-6A161iHDJ80,HZJ80..DSL,TD2199401-199801

215/80R16,*B/S

main42605-6A190iFJ80,HDJ80,HZJ80..GX,VX199001-199208

265/75R15,*B/S

main42652-60141iFZJ80,HDJ80..GX,VX199501-199605

275/70R16,*D/L

main42652-60142iFZJ80,HDJ80..GX,VX199605-199801

275/70R16,*D/L

main42652-60151iFZJ80; HDJ80199208-199501

275/70R16,*B/S

main42652-60152iFZJ80,HDJ80..GX,VX199605-199801

275/70R16,*B/S

main42652-60230iFZJ80,HDJ80199501-199605

215/80R16,*D/L

main42652-60241iFZJ80,HDJ80199501-199605

215/80R16,*B/S

main42652-60320iFZJ80,HDJ80199605-199801

215/80R16,*D/L

main42652-60330iFZJ80,HDJ80199605-199801

215/80R16,*B/S

8 parts on this diagram · 3 diagrams in section
