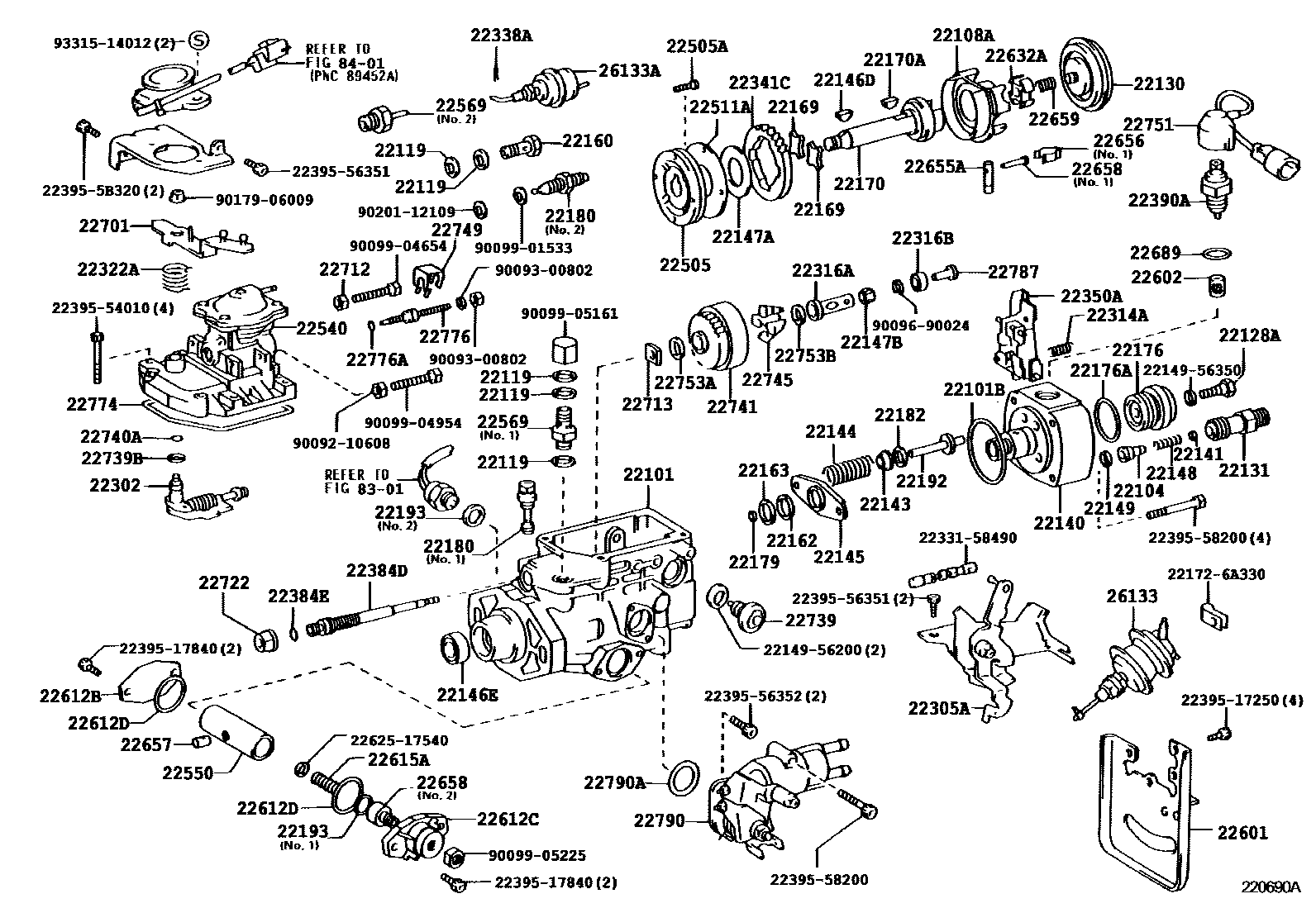

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
COLD SPEC
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
COLD SPEC
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22141SEAT, DELIVERY VALVE SPRING
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
22179SHIM, PLUNGER ADJUSTING
T=1.92
T=1.94
T=1.96
T=1.98
T=2.02
T=2.04
T=2.06
T=2.08
T=2.12
T=2.14
T=2.16
T=2.18
T=2.22
T=2.24
T=2.26
T=2.28
T=2.32
T=2.34
T=2.36
T=2.38
T=2.42
T=2.44
T=2.46
T=2.48
T=2.52
T=2.54
T=2.56
T=2.58
T=2.62
T=2.64
T=2.66
T=2.68
T=2.72
T=2.74
T=2.76
T=2.78
T=2.82
T=2.84
T=2.86
T=2.88
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=1.91
T=1.93
T=1.97
T=1.99
T=2.01
T=2.03
T=2.07
T=2.09
T=2.11
T=2.13
T=2.17
T=2.19
T=2.21
T=2.23
T=2.27
T=2.29
T=2.31
T=2.33
T=2.37
T=2.39
T=2.41
T=2.43
T=2.47
T=2.49
T=2.51
T=2.53
T=2.57
T=2.59
T=2.61
T=2.63
T=2.67
T=2.69
T=2.71
T=2.73
T=2.77
T=2.79
T=2.81
T=2.83
T=2.87
T=2.89
T=2.91
T=2.92
T=2.93
T=2.96
T=2.97
T=2.98
T=3.01
T=3.02
T=3.03
T=3.06
T=3.07
T=3.08
T=3.11
T=3.12
T=3.13
T=3.16
T=3.17
T=3.18
T=1.95
T=2.05
T=2.15
T=2.25
T=2.35
T=2.45
T=2.55
T=2.65
T=2.75
T=2.85
T=2.94
T=2.99
T=3.04
T=3.09
T=3.14
T=3.19
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
NO.2
NO.2
NO.1
NO.1
NO.2
NO.1
NO.1
NO.2
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
NO.1; NO.3
NO.2
NO.1; NO.2
22302SHAFT SUB-ASSY, SPEED CONTROL
22305AIDLE-UP SUB-ASSY
COLD SPEC
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=0.60
ID=0.65
ID=0.70
ID=0.60
ID=0.70
ID=0.75
ID=0.85
MARK 157
MARK 158
MARK 159
ID=0.45
ID=0.5
ID=0.55
ID=1.00
MARK 26
MARK 28,ID=0.90
ID=0.75
ID=1.35 & 2,L=11.6,ID=1.35 & 2,L=11.6
ID=0.8,ID=0.8
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22322ASPRING, RETURN
22338APIN, LEVER CONNECTING
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22384DSHAFT, GOVERNOR
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22540COMPENSATOR SUB-ASSY, BOOST
22550PISTON ASSY, TIMER
22569SCREW, OVERFLOW
NO.2
22601BRACKET SUB-ASSY, IDLE UP
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
22612BCOVER, TIMER
22612CCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
22615ASPRING, TIMER OUTER
K=0.18,L=33.8
K=0.19,L=33.7
K=0.20,L=33.6
K=0.16,L=32.3,NO.1
K=0.18,L=32.0,NO.1
K=0.20,L=31.8,NO.1
K=1.7,L=27.9,NO.2
K=1.30
K=1.45
K=1.60
K=1.80
K=1.95
K=1.40
K=1.60
K=1.80
K=1.08,NO.1
K=1.18,NO.1
K=1.27,NO.1
K=1.37,NO.1
K=1.96
K=2.16
K=1.77
K=9.1
K=5.7
K=0.16,L=34.2
K=0.17,L=31.4
22632ACOUPLING, INJECTION PUMP
22655APIN, TIMER SLIDE
22656CLIP, TIMER
NO.1
NO.1
NO.2
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
NO.2
NO.1
NO.1
NO.2
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
22701LEVER SUB-ASSY, ADJUSTING
MARK 383
MARK 384
MARK 381
MARK 382
ANGLE=0.0
ANGLE=5.0
ANGLE=10.0
MARK 522
MARK 523
MARK 524
MARK 247
MARK 290
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22722NUT, GOVERNOR SHAFT ROCK
22739BOLT, GOVERNOR LINK SUPPORT
22739BWASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2)
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
MARK 2
MARK 14
MARK 28
MARK 24
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22749COLLAR, SMOKE SET ADJUSTING
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
22787PLUG, GOVERNOR SLEEVE
L=4.4
L=4.6
L=4.8
L=4.9
L=5.0
L=5.1
L=5.2
L=5.3
L=5.4
L=5.5
L=5.6
L=5.7
L=5.8
L=2.1
L=2.5
L=2.9
L=3.3
L=3.7
L=4.1
L=4.5
L=4.9
L=2.8
L=3.3
L=3.4
L=3.5
L=3.6
L=3.7
L=3.8
L=3.9
L=4.0
L=4.3
L=4.5
L=4.7
L=5.9
L=6.0
L=6.1
L=6.2
L=6.3
L=6.4
L=6.5
L=6.6
L=4.1
L=3.0
L=3.1
L=3.2
L=4.2
22790COVER SUB-ASSY, TIMER
COLD SPEC
22790ARING, O(FOR TIMER COVER)
COLD SPEC
COLD SPEC
26133ACTUATOR SET, IDLE-UP
26133AACTUATOR SET, IDLE-UP
8301METER
8401SWITCH & RELAY & COMPUTER
2214956200GASKET, DELIVERY VALVE
main22149-56200
2214956350GASKET, DELIVERY VALVE
main22149-56350
221726A330CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-6A330
2233158490LEVER, GOVERNOR STOP
main22331-58490
2239517250BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-17250
2239517840BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-17840
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56352
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
223955B320BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-5B320
2262517540WASHER, TIMER SENSOR ADJUSTING
main22625-17540
9009210608
main90092-10608
9009300802
main90093-00802
9009690024
main90096-90024
9009901533
main90099-01533
9009904654
main90099-04654
9009904954
main90099-04954
9009905161
main90099-05161
9009905225
main90099-05225
9017906009
main90179-06009
9020112109
main90201-12109
9331514012
main93315-14012
110 parts on this diagram · 6 diagrams in section
