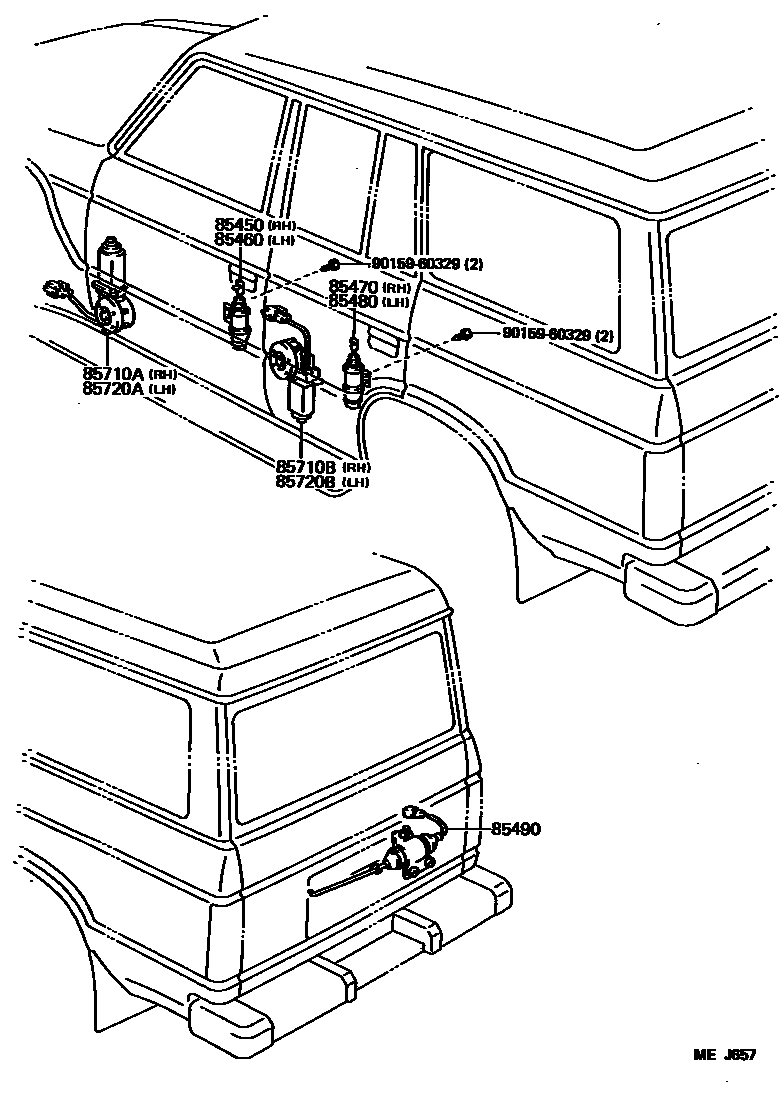

DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-90A04iFJ62198808-199001

main85450-90A05iHJ6#..GX,VX198708-199001

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85460-90A02iFJ62198808-199001

main85460-90A03iHJ6#..GX,VX198708-199001

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85470-90A02iFJ62198808-199001

main85470-90A03iHJ6#..GX,VX198708-199001

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85480-90A02iFJ62198808-199001

main85480-90A03iHJ6#..GX,VX198708-199001

85490SOLENOID ASSY, DOOR CONTROL BACK

main85450-90A06iFJ62..LUB198808-199001

main85450-90A07iHJ6#..LUB198708-199001

main85450-90A08iFJ62..SOB198808-199001

main85450-90A09iHJ6#..SOB..GX198708-199001

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-90A00iFJ62198808-199001

main85710-90A02iHJ6#..GX,VX198708-199001

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-90A01iFJ62198808-199001

main85710-90A03iHJ6#..GX,VX198708-199001

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-90A00iFJ62198808-199001

main85720-90A02iHJ6#..GX,VX198708-199001

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85720-90A01iFJ62198808-199001

main85720-90A03iHJ6#..GX,VX198708-199001

9015960329

main90159-60329

10 parts on this diagram · 1 diagram in section
