INSIDE TRIM BOARD

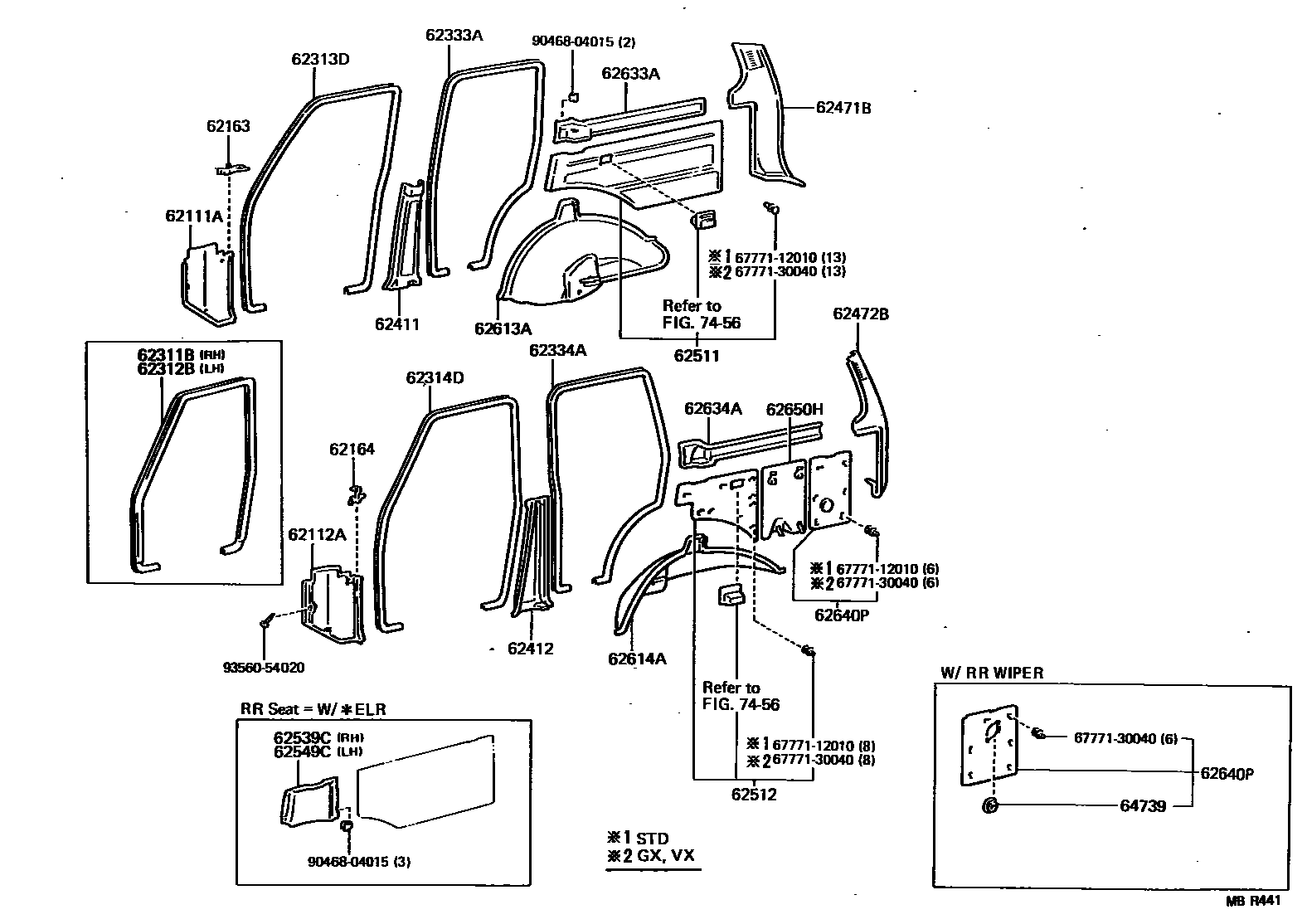

Parts diagram
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-90A00-03i198708-199001
GRAY,TRIM1#
sub62101-90A00
main62101-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62101-90A00
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-90A00-03i198708-199001
GRAY,TRIM1#
sub62102-90A00
main62102-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62102-90A00
62163COVER, COWL SIDE INSTRUMENT PANEL BRACKET, RH
main62163-90A00-03i198708-199001
GRAY,TRIM1#
sub62163-90A00
main62163-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62163-90A00
62164COVER, COWL SIDE INSTRUMENT PANEL BRACKET, LH
main62164-90A00-03i198708-199001
GRAY,TRIM1#
sub62164-90A00
main62164-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62164-90A00
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-90A00-03i198808-198810
SHADOW GRAY,TRIM1#
sub62311-90A01
main62311-90A00-06i198808-198810
SEPIA BROWN,TRIM4#
sub62311-90A01
main62311-90A01-03i198810-199001
SHADOW GRAY,TRIM1#
main62311-90A01-06i198810-199001
SEPIA BROWN,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-90A00-03i198808-198810
SHADOW GRAY,TRIM1#
sub62312-90A01
main62312-90A00-06i198808-198810
SEPIA BROWN,TRIM4#
sub62312-90A01
main62312-90A01-03i198810-199001
SHADOW GRAY,TRIM1#
main62312-90A01-06i198810-199001
SEPIA BROWN,TRIM4#
62313DTRIM, FRONT DOOR OPENING, RH
main62313-90A00-03i198708-199001
GRAY,TRIM1#
sub62313-90A00
sub62333-90A00
main62313-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62313-90A00
sub62333-90A00
62314DTRIM, FRONT DOOR OPENING, LH
main62313-90A00-03i198708-199001
GRAY,TRIM1#
sub62313-90A00
sub62333-90A00
main62313-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62313-90A00
sub62333-90A00
62333ATRIM, REAR DOOR OPENING, RH
main62333-90A00-03i198708-199001
GRAY,TRIM1#
sub62333-90A00
main62333-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62333-90A00
62334ATRIM, REAR DOOR OPENING, LH
main62333-90A00-03i198708-199001
GRAY,TRIM1#
sub62333-90A00
main62333-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62333-90A00
62411GARNISH, CENTER PILLAR, RH
main62411-90A01-03i198708-199001
GRAY,TRIM1#
sub62411-90A01
main62411-90A01-16i198708-199001
SEPIA BROWN,TRIM4#
sub62411-90A01
62412GARNISH, CENTER PILLAR, LH
main62412-90A01-03i198708-199001
GRAY,TRIM1#
sub62412-90A01
main62412-90A01-16i198708-199001
SEPIA BROWN,TRIM4#
sub62412-90A01
62471BCOVER, REAR PILLAR, RH
main62471-90A00-18i198708-199001
IVORY,TRIM1#,4#
sub62471-90A00
main62471-90A02-18i198708-199001
IVORY,TRIM1#,4#
sub62471-90A02
62472BCOVER, REAR PILLAR, LH
main62472-90A00-18i198708-199001
IVORY,TRIM1#,4#
sub62472-90A00
main62472-90A02-18i198708-199001
IVORY,TRIM1#,4#
sub62472-90A02
62511BOARD, QUARTER INSIDE TRIM, RH
main62510-90A07-16i198708-199001
SEPIA BROWN,TRIM4#
sub62510-90A07
main62510-90A15-03i198708-199001
SHADOW GRAY,TRIM1#
sub62510-90A17
main62510-90A15-06i198708-199001
SEPIA BROWN,TRIM4#
sub62510-90A17
main62510-90A16-06i198708-199001
W(*RFM) OR W(FUEL LID OPENER),SEPIA BROWN,TRIM4#
sub62510-90A25
main62510-90A50-03i198708-199001
SHADOW GRAY,TRIM1#
main62510-90A50-06i198708-199001
SEPIA BROWN,TRIM4#
main62510-90A53-06i198708-199001
W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#
main62510-90A55-03i198708-199001
W(REAR SEAT BELT = *ELR),SHADOW GRAY,TRIM1#
main62510-90A55-03i198708-199001
SHADOW GRAY,TRIM1#
main62510-90A55-06i198708-199001
W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#
main62510-90A55-06i198708-199001
SEPIA BROWN,TRIM4#
62512BOARD, QUARTER INSIDE TRIM, LH
main62520-90A39-06i198708-199001
SEPIA BROWN,TRIM4#
main62520-90A46-03i198708-199001
SHADOW GRAY,TRIM1#
main62520-90A46-06i198708-199001
SEPIA BROWN,TRIM4#
main62520-90A48-03i198708-199001
SHADOW GRAY,TRIM1#
main62520-90A48-06i198708-199001
SEPIA BROWN,TRIM4#
main62520-90A67-03i198708-199001
SHADOW GRAY,TRIM1#
main62520-90A67-06i198708-199001
SEPIA BROWN,TRIM4#
main62520-90A68-06i198708-199001
W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#
main62520-90A69-03i198708-199001
SHADOW GRAY,TRIM1#
main62520-90A69-03i198708-199001
W(REAR SEAT BELT = *ELR),SHADOW GRAY,TRIM1#
main62520-90A69-06i198708-199001
SEPIA BROWN,TRIM4#
main62520-90A69-06i198708-199001
W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#
62539CCOVER, QUARTER TRIM UPPER BELT HOLE, RH
main62539-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62539-90A01
main62539-90A01-03i198708-199001
SHADOW GRAY,TRIM1#
main62539-90A01-06i198708-199001
W(*RFM) OR W(FUEL LID OPENER),SEPIA BROWN,TRIM4#
main62539-90A01-06i198708-199001
SEPIA BROWN,TRIM4#
62549CCOVER, QUARTER TRIM UPPER BELT HOLE, LH
main62549-90A00-03i198708-199001
GRAY,TRIM1#
sub62549-90A00
main62549-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62549-90A00
62613ACOVER, QUARTER WHEEL HOUSE, RH
main62603-90A07-03i198708-199001
SHADOW GRAY,TRIM1#
sub62603-90A07
main62603-90A07-06i198708-199001
SEPIA BROWN,TRIM4#
sub62603-90A07
main62613-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62613-90A00
main62613-90A04-16i198708-199001
W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#
sub62613-90A04
main62613-90A07-03i198708-199001
SHADOW GRAY,TRIM1#
main62613-90A07-06i198708-199001
SEPIA BROWN,TRIM4#
main62613-90A07-06i198708-199001
W(*RFM),SEPIA BROWN,TRIM4#
main62613-90A09-03i198708-199001
W(REAR SEAT BELT = *ELR),SHADOW GRAY,TRIM1#
sub62613-90A07
main62613-90A09-03i198708-199001
SHADOW GRAY,TRIM1#
sub62613-90A07
main62613-90A09-06i198708-199001
W(*RFM & REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#
sub62613-90A07
main62613-90A09-06i198708-199001
W(REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#
sub62613-90A07
main62613-90A09-06i198708-199001
SEPIA BROWN,TRIM4#
sub62613-90A07
main62613-90A11-03i198708-199001
SHADOW GRAY,TRIM1#
sub62613-90A10
main62613-90A11-06i198708-199001
SEPIA BROWN,TRIM4#
sub62613-90A10
main62613-90A14-06i198708-199001
W(FUEL LID OPENER),SEPIA BROWN,TRIM4#
main62613-90A15-06i198708-199001
W(FUEL LID OPENER & REAR SEAT BELT = *ELR),SEPIA BROWN,TRIM4#
62614ACOVER, QUARTER WHEEL HOUSE, LH
main62604-90A05-03i198708-199001
SHADOW GRAY,TRIM1#
sub62604-90A05
main62604-90A05-06i198708-199001
SEPIA BROWN,TRIM4#
sub62604-90A05
main62613-90A00-16i198708-199001
W(FUEL LID OPENER),SEPIA BROWN,TRIM4#
sub62613-90A00
main62613-90A04-16i198708-199001
W(FUEL LID OPENER & REAR SEATBELT=*ELR),SEPIA BROWN,TRIM4#
sub62613-90A04
main62614-90A00-03i198708-199001
GRAY,TRIM1#
sub62614-90A00
main62614-90A00-16i198708-199001
W(*RFM),SEPIA BROWN,TRIM4#
sub62614-90A00
main62614-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub62614-90A00
main62614-90A02-03i198708-199001
W(REAR SEAT BELT = *ELR),GRAY,TRIM1#
sub62614-90A02
main62614-90A02-03i198708-199001
GRAY,TRIM1#
sub62614-90A02
main62614-90A02-06i198708-199001
BROWN,TRIM4#
sub62614-90A02
main62614-90A04-03i198708-199001
GRAY,TRIM1#
main62614-90A04-16i198708-199001
SEPIA BROWN,TRIM4#
62633AGARNISH, QUARTER TRIM, RH
main62505-90A01-18i198708-199001
*FRG SPEC,IVORY,TRIM1#,4#
sub62505-90A01
main62505-90A02-08i198708-199001
IVORY,TRIM1#,4#
main62633-90A09-08i198708-199001
IVORY,TRIM1#,4#
main62633-90A10-08i198708-199001
IVORY,TRIM4#
main62633-90A11-08i198708-199001
W(REAR SEAT BELT = *ELR),IVORY,TRIM1#,4#
main62633-90A15-08i198708-199001
W/O(REAR SEAT),IVORY,TRIM1#,4#
62634AGARNISH, QUARTER TRIM, LH
main62506-90A01-18i198708-199001
*FRG SPEC,IVORY,TRIM1#,4#
sub62506-90A01
main62506-90A02-08i198708-199001
IVORY,TRIM1#,4#
main62634-90A09-08i198708-199001
IVORY,TRIM1#,4#
main62634-90A10-08i198708-199001
IVORY,TRIM4#
main62634-90A11-08i198708-199001
W(REAR SEAT BELT = *ELR),IVORY,TRIM1#,4#
main62634-90A15-08i198708-199001
W/O(REAR SEAT),IVORY,TRIM1#,4#
62640PPANEL ASSY, QUARTER TRIM, REAR LH
main62640-90A00-06i198708-199001
SEPIA BROWN,TRIM4#
main62640-90A03-03i198708-199001
SHADOW GRAY,TRIM1#
main62640-90A03-06i198708-199001
SEPIA BROWN,TRIM4#
main62640-90A17-03i198708-199001
SHADOW GRAY,TRIM1#
main62640-90A17-06i198708-199001
SEPIA BROWN,TRIM4#
main62640-90A18-03i198708-199001
SHADOW GRAY,TRIM1#
main62640-90A18-06i198708-199001
SEPIA BROWN,TRIM4#
main62640-90A19-03i198708-199001
SHADOW GRAY,TRIM1#
main62640-90A19-06i198708-199001
SEPIA BROWN,TRIM4#
62650HPANEL ASSY, QUARTER TRIM, CENTER
main62650-90A05-06i198708-199001
SEPIA BROWN,TRIM4#
main62650-90A06-03i198708-199001
SHADOW GRAY,TRIM1#
main62650-90A06-06i198708-199001
SEPIA BROWN,TRIM4#
main62650-90A07-03i198708-199001
SHADOW GRAY,TRIM1#
main62650-90A07-06i198708-199001
SEPIA BROWN,TRIM4#
64739COVER, DECK TRIM SIDE WASHER
main64739-90K01-03i198708-199001
SHADOW GRAY,TRIM1#
sub64739-90K01
main64739-90K01-06i198708-199001
SEPIA BROWN,TRIM4#
sub64739-90K01
7456
6777112010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12010
6777130040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30040
9046804015
main90468-04015
9356054020
main93560-54020

30 parts on this diagram · 1 diagram in section
