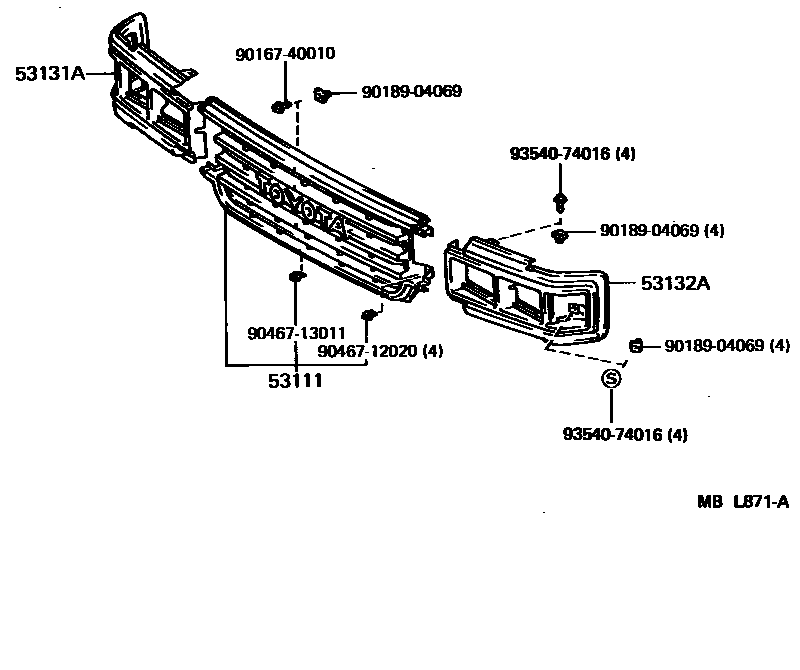

RADIATOR GRILLE

53111GRILLE, RADIATOR

main53111-90A05iHJ6#198708-198801

main53111-90A08iFJ62,HJ6#198801-199001

53131ADOOR, HEADLAMP, RH

main53131-90A05iHJ60..STD198708-199001

main53131-90A06iFJ62,HJ6#..GX,VX198708-199001

main53131-90A07iFJ62,HJ6#..LHD..(GX,VX)198708-199001

W(HEADLAMP CLEANER)

main53131-90A08iHJ61..VX198708-199001

*FRG SPEC

53132ADOOR, HEADLAMP, LH

main53132-90A05iHJ60..STD198708-199001

main53132-90A06iFJ62,HJ6#..GX,VX198708-199001

main53132-90A07iFJ62,HJ6#..LHD..(GX,VX)198708-199001

W(HEADLAMP CLEANER)

main53132-90A08iHJ61..VX198708-199001

*FRG SPEC

9016740010

main90167-40010

9018904069

main90189-04069

9046712020

main90467-12020

9046713011

main90467-13011

9354074016

main93540-74016

8 parts on this diagram · 1 diagram in section
