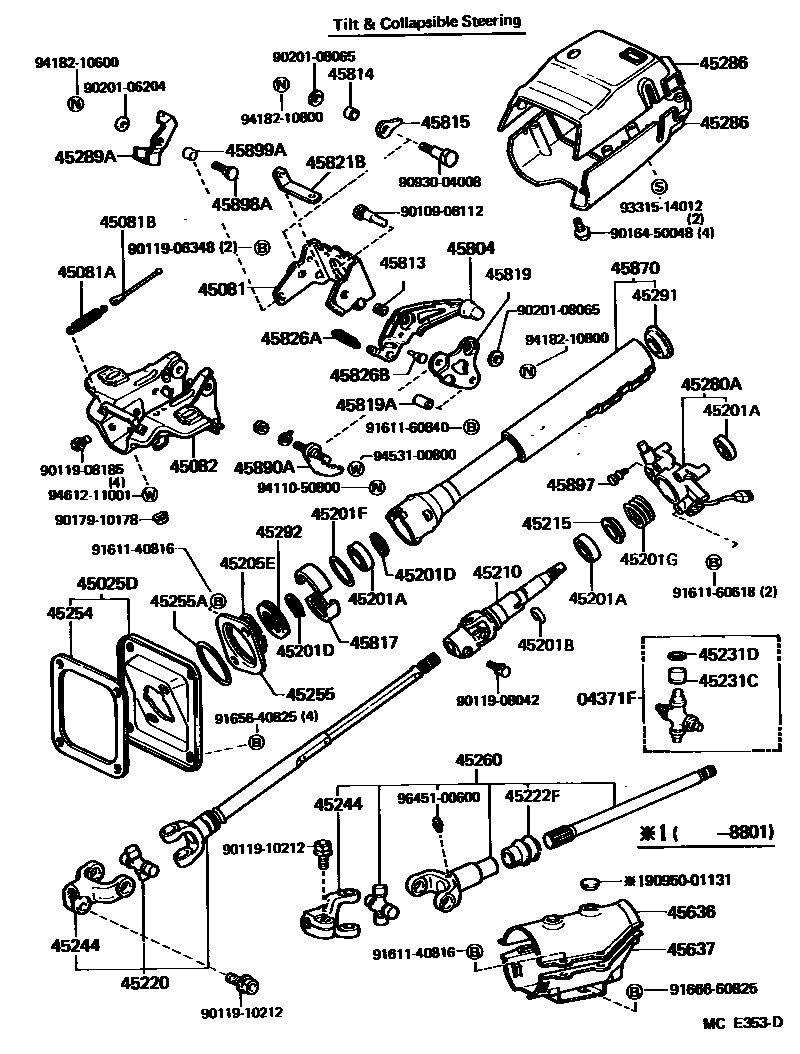

STEERING COLUMN & SHAFT

04371FSPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT)

main04371-10011iFJ62,HJ6#198708-199001

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-60020iFJ62,HJ6#198708-199001

45081SUPPORT SUB-ASSY, TILT STEERING

main45081-22020iFJ62,HJ6#198708-199001

45081ASPRING, TENSION(FOR TILT STEERING)

main90506-23009iFJ62,HJ6#198708-199001

45081BCORD(FOR TILT STEERING)

main90945-02034iFJ62,HJ6#198708-199001

L=107.5

main90945-02038iFJ62,HJ6#198708-199001

L=105.5

45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE

main45082-60010iFJ62,HJ6#198708-199001

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iFJ62,HJ6#198708-199001

UPR

main90363-28001iFJ62,HJ6#198708-199001

CTR

main90363-30007iFJ62,HJ6#198708-199001

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iFJ62,HJ6#198708-199001

T=1.20

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iFJ62,HJ6#198708-199001

45201FRING, O(FOR STEERING MAIN SHAFT)

main96711-24045iFJ62,HJ6#198708-199001

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-45011iFJ62,HJ6#198708-199001

45205ERING, SNAP(FOR STEERING COLUMN TUBE)

main90521-01002iFJ62,HJ6#198708-199001

45210SHAFT ASSY, STEERING MAIN

main45210-22050iFJ62,HJ6#198708-199001

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-22011iFJ62,HJ6#198708-199001

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-60050iFJ62,HJ6#198708-199001

45222FCOVER, DUST

main45222-60031iFJ62,HJ6#198708-199001

45231CBEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT)

main37402-10020iFJ62,HJ6#198708-199001

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-22011iFJ62,HJ6#198708-199001

main90521-22012iFJ62,HJ6#198708-199001

main90521-22013iFJ62,HJ6#198708-199001

45244YOKE, STEERING WORM

main45244-60020iFJ62,HJ6#198708-199001

45254SHIELD, STEERING COLUMN HOLE

main45254-60030iFJ62,HJ6#198708-199001

45255PLATE, STEERING COLUMN HOLE COVER

main45255-60010iFJ62,HJ6#198708-199001

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-60122iFJ62,HJ6#198708-199001

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-60080iFJ62,HJ6#198708-199001

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-60110iHJ60..RHD198708-199001

main45280-60130iHJ6#..LHD198708-199001

main45280-60260iFJ62198808-199001

45286COVER, STEERING COLUMN

main45286-22250-03iHJ60..RHD198708-199001

GRAY,TRIM1#,UPR

main45286-22250-16iHJ60..RHD198708-199001

SEPIA BROWN,TRIM4#,UPR

main45286-60130-03iFJ62,HJ6#..LHD..(GX,VX)198708-199001

GRAY,TRIM1#,UPR

main45286-60130-16iFJ62,HJ6#..LHD198708-199001

SEPIA BROWN,TRIM4#,UPR

main45287-22170-03iHJ60..RHD198708-199001

GRAY,TRIM1#,LWR

main45287-22170-16iHJ60..RHD198708-199001

SEPIA BROWN,TRIM4#,LWR

main45287-60090-03iFJ62,HJ6#..LHD..(GX,VX)198708-199001

GRAY,TRIM1#,LWR

main45287-60090-16iFJ62,HJ6#..LHD198708-199001

SEPIA BROWN,TRIM4#,LWR

main45287-60100-03iHJ60..RHD198708-199001

UNITED KINGDOM SPEC,GRAY,TRIM1#,LWR

main45287-60100-16iHJ60..RHD198708-199001

UNITED KINGDOM SPEC,SEPIA BROWN,TRIM4#,LWR

main45287-60110-03iHJ61..VX198708-199001

*FRG SPEC,GRAY,TRIM1#,LWR

main45287-60110-16iHJ61..VX198708-199001

*FRG SPEC,SEPIA BROWN,TRIM4#,LWR

45289ASUPPORT, STEERING COLUMN COVER

main45289-22020iFJ62,HJ6#198708-199001

45291SEAL, MAIN SHAFT UPPER DUST

main45282-22010iFJ62,HJ6#198708-199001

45292SEAL, MAIN SHAFT LOWER DUST

main45292-60030iFJ62,HJ6#198708-199001

45636PROTECTOR, INTERMEDIATE LINK JOINT, UPPER

main45636-60070iHJ60..RHD198708-199001

main45636-60080iHJ6#..LHD198708-199001

main45636-60090iFJ62198808-199001

45637PROTECTOR, INTER LINK JOINT, LWR NO.1

main45637-60050iHJ60..RHD198708-199001

main45637-60060iFJ62,HJ6#..LHD198708-199001

45804LEVER SUB-ASSY, STEERING TILT

main45804-22010iFJ62,HJ6#198708-199001

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-22010iFJ62,HJ6#198708-199001

OD=17.996-18.003

main45813-22020iFJ62,HJ6#198708-199001

OD=18.003-18.010

main45813-22030iFJ62,HJ6#198708-199001

OD=18.010-18.017

main45813-22040iFJ62,HJ6#198708-199001

OD=18.017-18.024

main45813-22050iFJ62,HJ6#198708-199001

OD=17.989-17.996

45814COLLAR, TILT STEERING SUPPORT, NO.2

main45814-22010iFJ62,HJ6#198708-199001

OD=17.982-18.000

main45814-22020iFJ62,HJ6#198708-199001

OD=18.000-18.018

45815SHIM, TILT STEERING SUPPORT

main45815-22060iFJ62,HJ6#198708-199001

T=0.2

main45815-22070iFJ62,HJ6#198708-199001

T=0.5

main45815-22080iFJ62,HJ6#198708-199001

T=0.8

main45815-22090iFJ62,HJ6#198708-199001

T=1.4,T=1.4

main45815-22100iFJ62,HJ6#198708-199001

T=1.8,T=1.8

45817STOPPER, STEERING SHAFT THRUST

main45817-60010iFJ62,HJ6#198708-199001

45819RETAINER, TILT LEVER

main45819-22011iFJ62,HJ6#198708-199001

45819ACOLLAR(FOR TILT LEVER RETAINER)

main90387-08002iFJ62,HJ6#198708-199001

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-22010iFJ62,HJ6#198708-199001

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-14001iFJ62,HJ6#198708-199001

45826BPIN(FOR STEERING TILT LEVER)

main72538-12010iFJ62,HJ6#198708-199001

45870TUBE ASSY, STEERING COLUMN

main45870-60030iFJ62,HJ6#198708-199001

45890APAWL ASSY, TILT STEERING

main45890-22050iFJ62,HJ6#198708-199001

45897BOLT, STEERING LOCK SET

main45897-14010iFJ62,HJ6#198708-199001

45898ABOLT, RETURN SPRING SET

main45898-22010iFJ62,HJ6#198708-199001

45899ACOVER, TILT STEERING SUPPORT STOPPER

main45899-22020iFJ62,HJ6#198708-199001

9010908112

main90109-08112

9011906348

main90119-06348

9011908042

main90119-08042

9011908185

main90119-08185

9011910212

main90119-10212

9016450048

main90164-50048

9017910178

main90179-10178

9020106204

main90201-06204

9020108065

main90201-08065

9093004008

main90930-04008

9095001131

main90950-01131

9161140816

main91611-40816

9161160618

main91611-60618

9161160840

main91611-60840

9165640825

main91656-40825

9166660825

main91666-60825

9331514012

main93315-14012

9411050800

main94110-50800

9418210600

main94182-10600

9418210800

main94182-10800

9453100800

main94531-00800

9461211001

main94612-11001

9645100600

main96451-00600

68 parts on this diagram · 1 diagram in section
