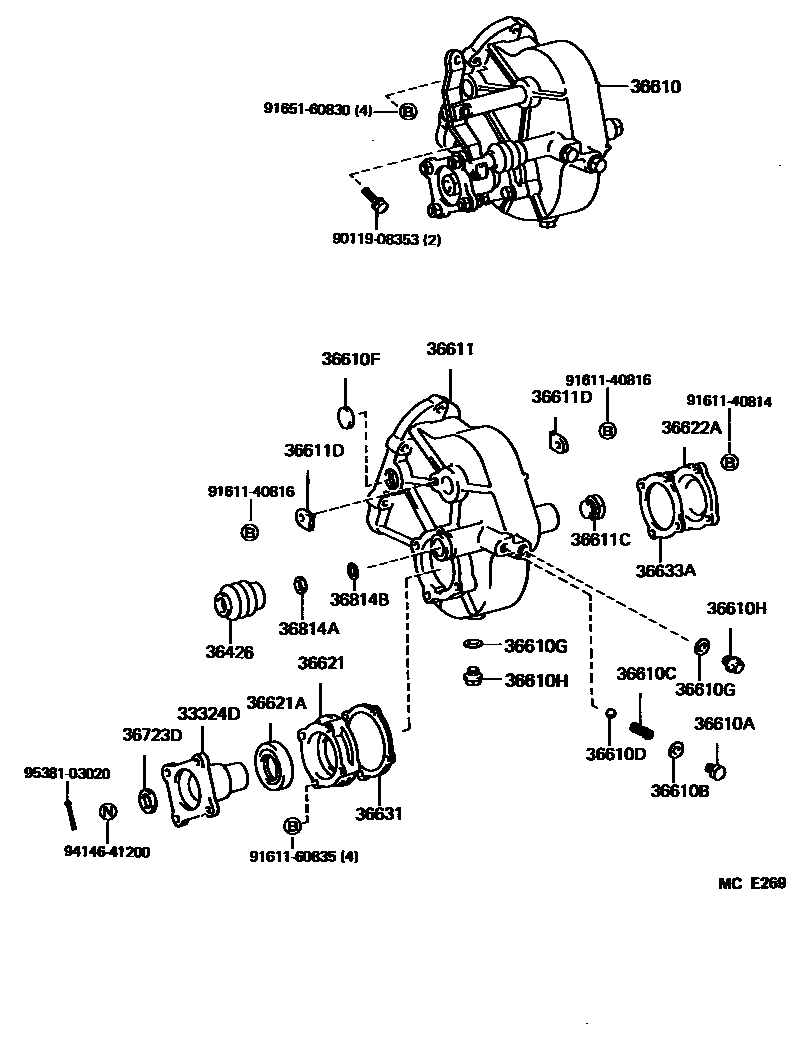

POWER TAKE-OFF CASE & GEAR
33324DFLANGE, OUTPUT SHAFT COMPANION
main33324-60020iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36426BOOT, DIAPHRAGM PUSH ROD
main36426-60010iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36610POWER TAKE-OFF ASSY
main36610-60080iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36610ABOLT, LOCK BALL (FOR POWER TAKE-OFF)
main90341-12069iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36610BGASKET, SEAT (FOR POWER TAKE-OFF)
main90430-12030iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
T=0.8
36610CSPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF)
main90501-12033iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36610DBALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF)
main90360-10003iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36610FPLUG, EXPANSION (FOR POWER TAKE-OFF)
main90330-27010iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36610GGASKET (FOR FRONT POWER TAKE-OFF DRAIN)
main90430-18008×2iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36610HPLUG (FOR FRONT POWER TAKE-OFF DRAIN)
main90341-18006×2iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36611CASE, POWER TAKE-OFF
main36611-60040iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36611CPLUG, W/HEAD STRAIGHT SCREW (FOR POWER TAKE-OFF CACE)
main90341-20005iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36611DPLATE, LOCK (FOR POWER TAKE-OFF CASE)
main36726-60010×2iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36621RETAINER, POWER TAKE-OFF BEARING
main36621-60010iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36621ASEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
main90311-35004iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36622ACOVER, POWER TAKE-OFF
main36622-60010iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36631GASKET, POWER TAKE-OFF BEARING RETAINER
main36631-60010iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36633AGASKET, POWER TAKE-OFF COVER
main36633-60010iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36723SHAFT, POWER TAKE-OFF OUTPUT, NO.1
main36723-60050iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36723DWASHER, PLATE (FOR FRONT POWER TAKE-OFF SHAFT)
main90201-12169iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36814SHAFT, POWR TAKE-OFF FORK, NO.1
main36814-60031iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36814ASEAL, DUST (FOR FRONT POWER TAKE-OFF SHAFT)
main90303-13018iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
36814BRING, O (FOR FRONT POWER TAKE-OFF SHAFT)
main96711-24012iHJ60..ATM; HJ60..STD; HJ61..GX;HJ60..LHD..MTM..SRF..LUB; HJ61..VX;HJ60..HRF;HJ60..SRF..SOB..GX198708-199001
9011908353
main90119-08353
9161140814
main91611-40814
9161140816
main91611-40816
9161160835
main91611-60835
9165160830
main91651-60830
9414641200
main94146-41200
9538103020
main95381-03020
30 parts on this diagram · 2 diagrams in section
