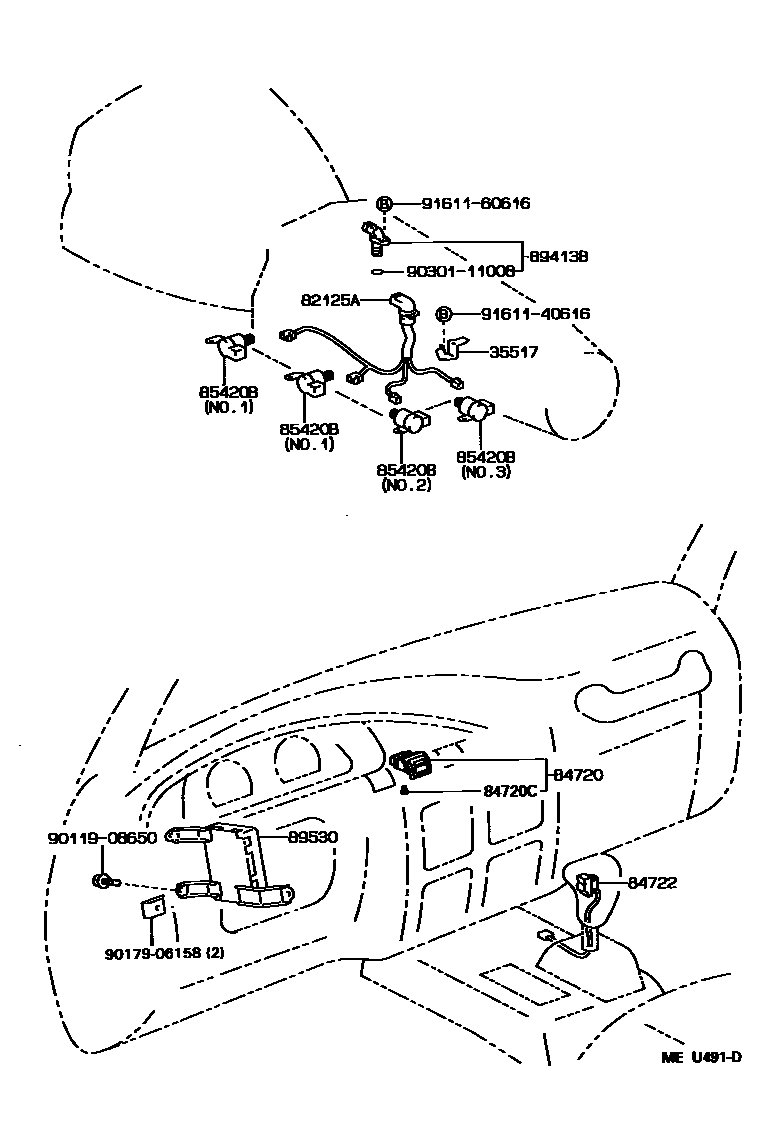

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

35517PLATE, TRANSMISSION WIRE LOCK

main35517-30010iFZJ80199501-199801

main35517-36010iFZJ80199208-199409

main35517-36011iFZJ80199409-199501

82125AWIRE, TRANSMISSION

main82125-30400iFZJ80199501-199801

main82125-36010iFZJ80199208-199501

84720SWITCH ASSY, PATTERN SELECT

main84720-60040iFZJ80199208-199501

main84720-60060iFZJ80199501-199801

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10320iFZJ80199208-199501

14V 0.84W

84722SWITCH, TRANSMISSION CONTROL

main84722-36050-C0iFZJ80199208-199801

BLACK,TRIM1#,4#

85420BSOLENOID ASSY, TRANSMISSION

main85420-30200×2iFZJ80199501-199801

NO.1

main85420-30220iFZJ80199501-199801

NO.3

main85420-60020×2iFZJ80199208-199501

NO.1

main85420-60030iFZJ80199208-199501

NO.2

main85420-60040iFZJ80199208-199501

NO.3

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iFZJ80199208-199501

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-60080iFZJ80199208-199501

9011908650

main90119-08650

9017906158

main90179-06158

9030111008

main90301-11008

9161140616

main91611-40616

9161160616

main91611-60616

13 parts on this diagram · 2 diagrams in section
