INDICATOR

81850LAMP ASSY, INDICATOR

main81850-60480iFJ80199001-199208

main81850-60481iFZJ80199208-199501

main81850-60530iFZJ80199501-199801

81850BBULB, INDICATOR LAMP

main90981-11014iFJ80,FZJ80199001-199801

14V 1.4W

81850SBULB(FOR AUTOMATIC OIL INDICATOR LAMP)

main90981-11018iFJ80,FZJ80199001-199501

81850UBULB(FOR DIFFERENTIAL LOCK INDICATOR LAMP)

main90981-11018iFZJ80199208-199801

81850XBULB (FOR CENTER DIFFERENTIAL LOCK INDICATOR LAMP)

main90981-11018iFZJ80199501-199801

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-33010iFZJ80199208-199310

sub81860-60060

main81860-60040iFJ80199001-199208

main81860-60060iFZJ80199310-199501

main81860-60080iFZJ80199501-199801

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-50180iFJ80199001-199208

12V 1.2W

main84999-50190iFJ80199001-199208

12V 1.2W,GREEN CAP

main90072-02005iFZJ80199208-199801

14V 1.12W

main90072-02006iFZJ80199208-199801

14V 1.12W,GREEN CAP

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-60020iFZJ80199208-199501

sub84999-70015

main84999-70015iFZJ80199501-199801

83101BSOCKET SUB-ASSY, AUTOMATIC OIL INDICATOR LAMP

main83101-14040iFJ80,FZJ80199001-199501

83101DSOCKET SUB-ASSY, DIFFERENTIAL LOCK INDICATOR LAMP

main83101-14040iFZJ80199208-199801

83101FSOCKET SUB-ASSY, CENTER DIFFERENTIAL LOCK LAMP BULB

main83101-14040iFZJ80199501-199801

8715

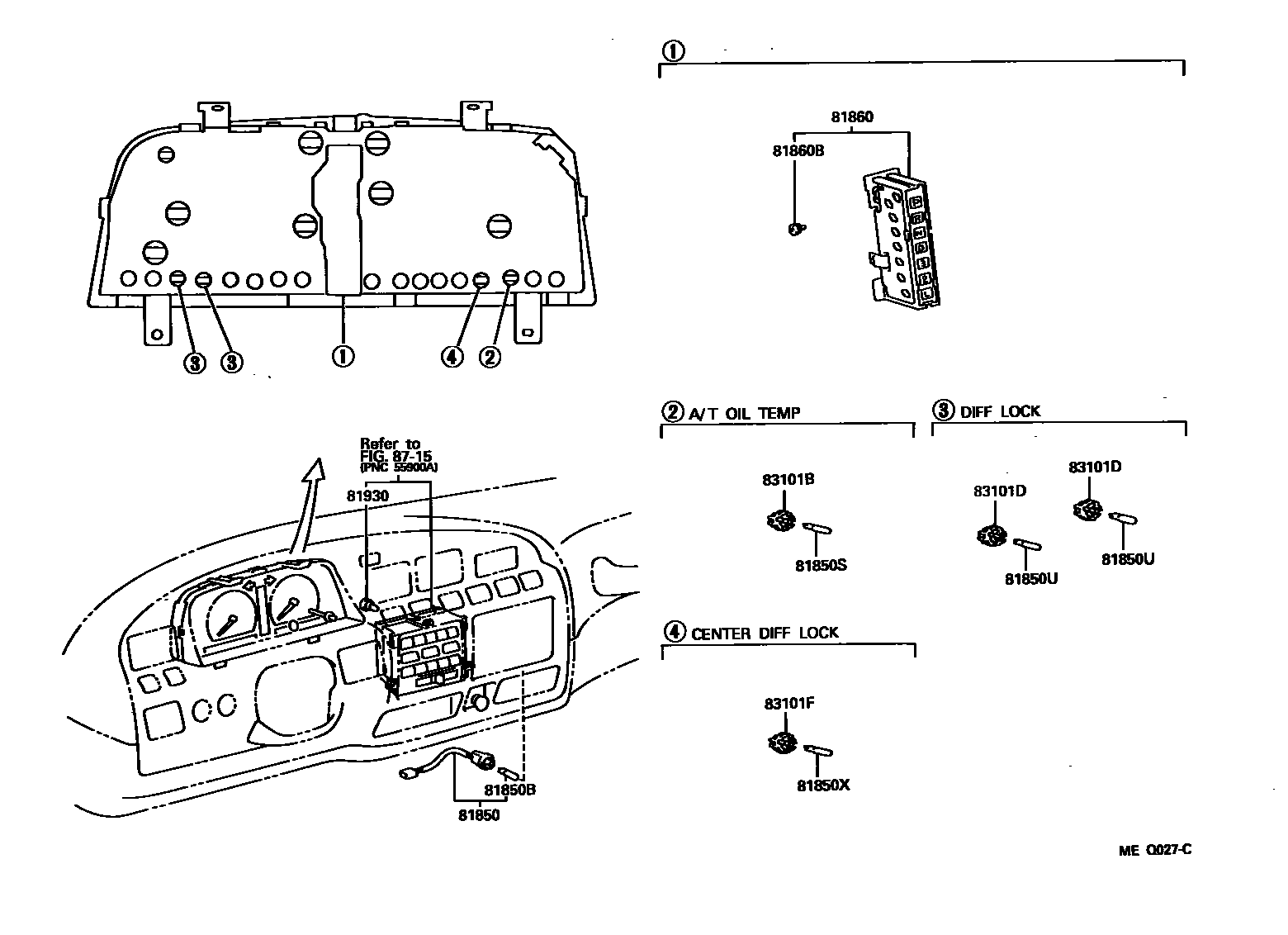

12 parts on this diagram · 1 diagram in section
