CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1COOL BOX:REFER TO FIG 87-14

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-60010iFJ80,FZJ80199001-199501

main58808-60050-C0iFZJ80199501-199801

BLACK,TRIM1#,4#

58811ABOX, CONSOLE, FRONT

main58811-60010-03iFJ80,FZJ80199001-199501

BLUISH GRAY,TRIM1#

main58811-60010-06iFJ80,FZJ80199001-199501

SABLE,TRIM4#

main58811-60090-B0iFZJ80199501-199801

BLUISH GRAY,TRIM1#

sub58811-60090

main58811-60090-E0iFZJ80199501-199801

OAK,TRIM4#

sub58811-60090

9356055016

main93560-55016

9356055025

main93560-55025

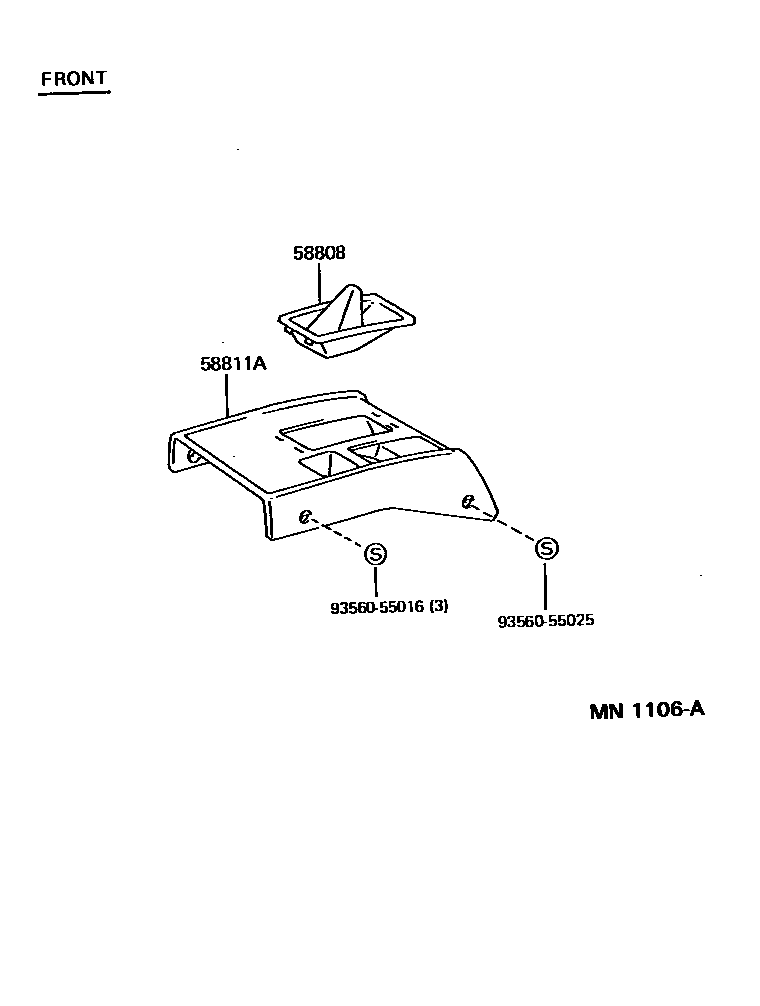

4 parts on this diagram · 3 diagrams in section
