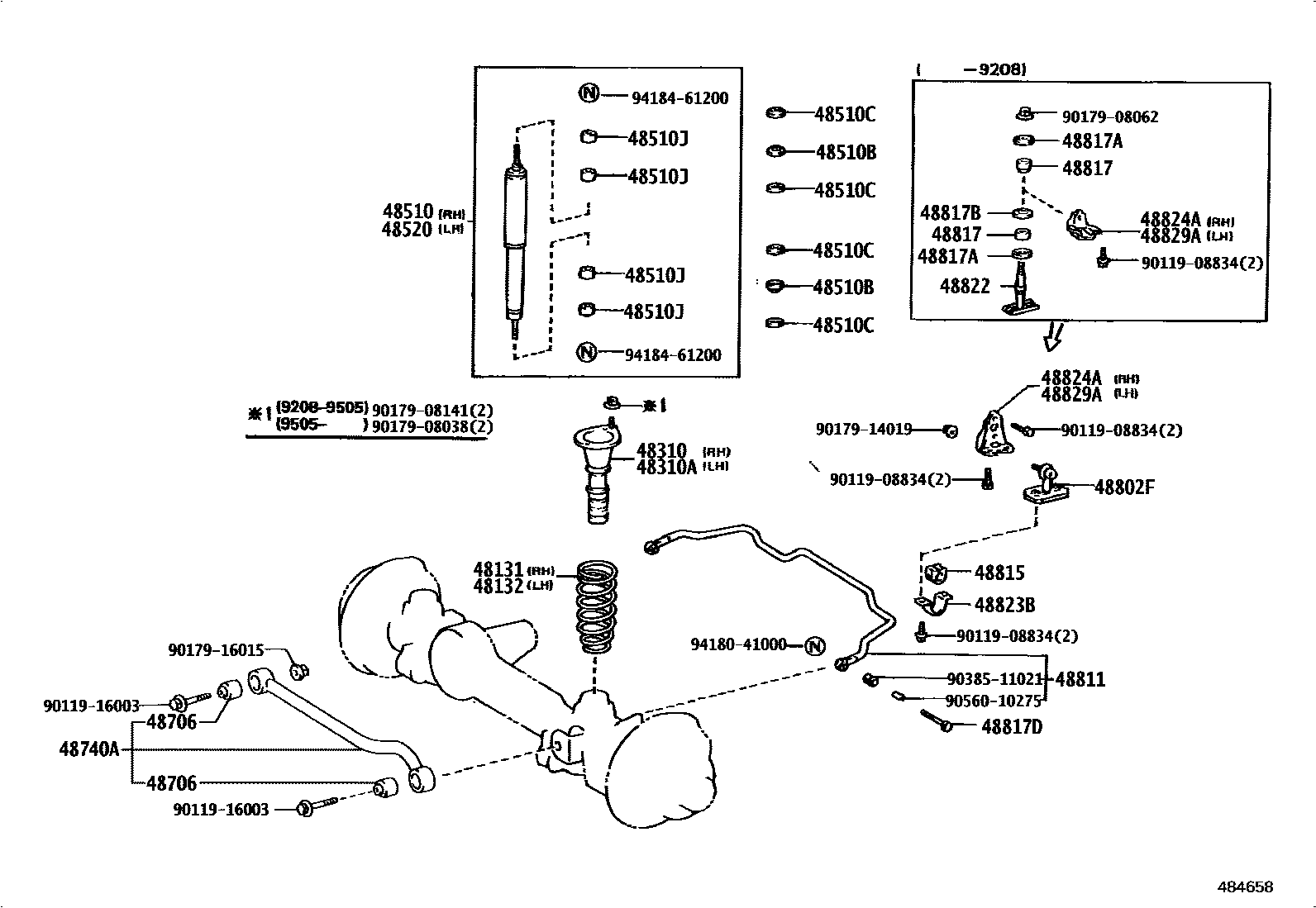

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
W(ALUMINUM WHEEL)
48132SPRING, FRONT COIL, LH
W(ALUMINUM WHEEL)
48310SPRING ASSY, FRONT SUSPENSION HOLLOW, RH
W(7JJX15 WHEEL)
W(7JJX15 WHEEL)
48310ASPRING ASSY, FRONT SUSPENSION HOLLOW, LH
W(ALUMINUM WHEEL)
W(ALUMINUM WHEEL)
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48511-60300
MARK 48511-60310,W(ALUMINUM WHEEL)
MARK 48511-60390
MARK 48511-60391
MARK 48511-60391
MARK 48511-60480
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48511-60300
MARK 48511-60310,W(ALUMINUM WHEEL)
MARK 48511-60390
MARK 48511-60391
MARK 48511-60391
MARK 48511-60480
48706BUSH SUB-ASSY, FRONT LATERAL CONTROL ROD
48740AROD ASSY, FRONT LATERAL CONTROL
48802FLINK SUB-ASSY, FRONT STABILIZER
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48823BCOVER, FRONT STABILIZER BRACKET
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011908834
main90119-08834
9011916003
main90119-16003
9017908038
main90179-08038
9017908062
main90179-08062
9017908141
main90179-08141
9017914019
main90179-14019
9017916015
main90179-16015
9038511021
main90385-11021
9056010275
main90560-10275
9418041000
main94180-41000
9418461200
main94184-61200
33 parts on this diagram · 1 diagram in section
