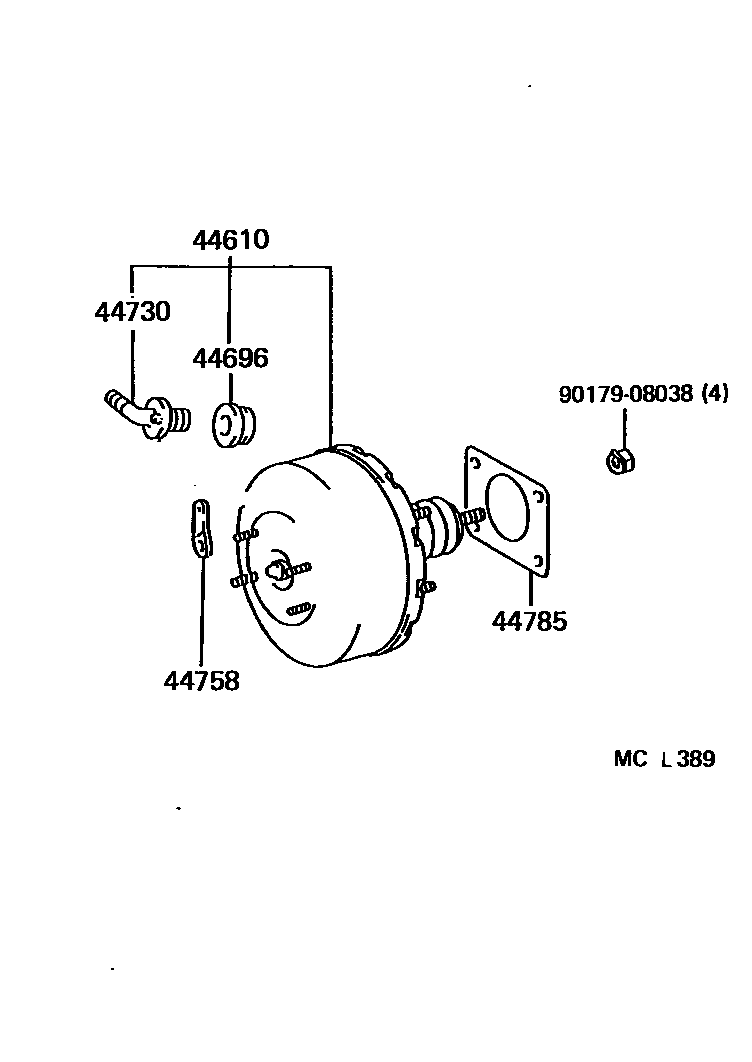

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-60620iFJ80199001-199208

main44610-60790iFZJ80199208-199308

main44610-60791iFZJ80199308-199505

main44610-60792iFZJ80199505-199801

44696GROMMET, CHECK VALVE

main90480-24517iFJ80,FZJ80199001-199801

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14060iFJ80,FZJ80199001-199801

44758BRACKET, VACUUM CHECK VALVE

main44758-60050iFJ80199001-199208

main44758-60060iFZJ80199208-199801

44785GASKET, BRAKE BOOSTER

main44785-35020iFJ80,FZJ80199001-199801

9017908038

main90179-08038

6 parts on this diagram · 2 diagrams in section
