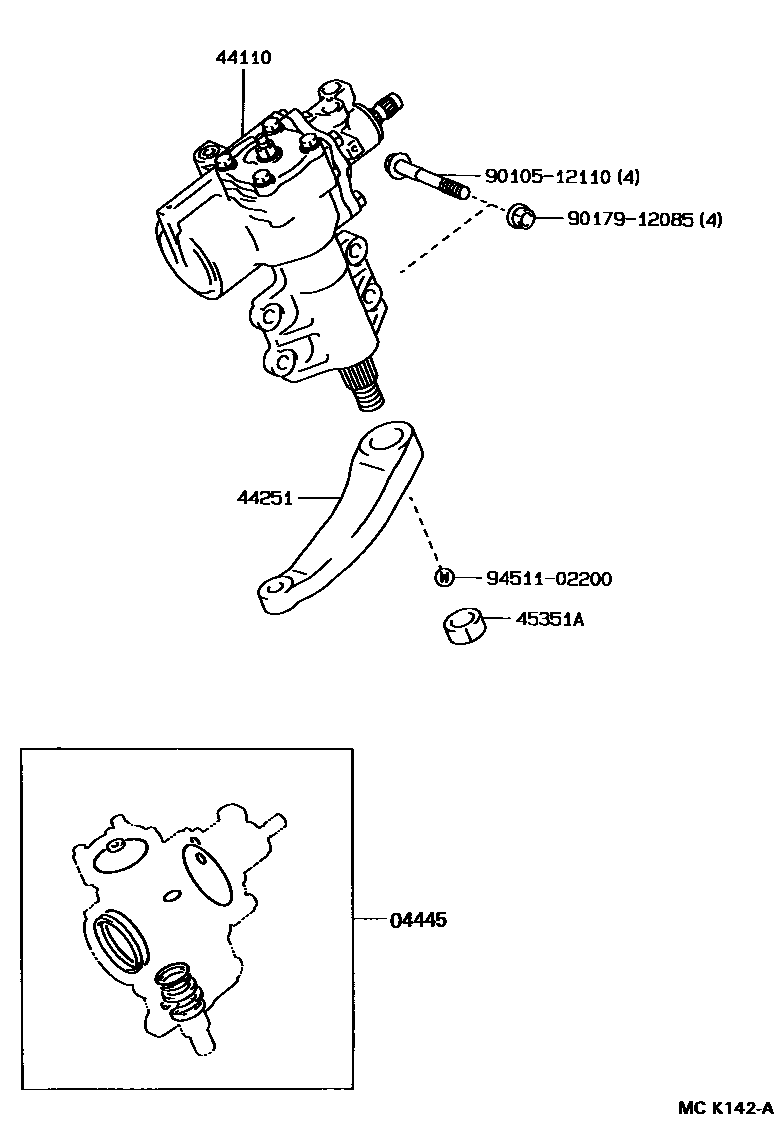

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-60050iFJ80,FZJ80199001-199801

44110GEAR ASSY, POWER STEERING

main44110-60210iFJ80199001-199208

sub44110-60212

sub45411-60400

main44110-60211iFZJ80199208-199801

sub44110-60212

sub45411-60360

44251ARM, PITMAN

main45411-60190iFJ80,FZJ80199001-199501

main45411-60191iFZJ80199501-199801

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-22058iFZJ80199208-199801

9010512110

main90105-12110

9017912085

main90179-12085

9451102200

main94511-02200

7 parts on this diagram · 3 diagrams in section
