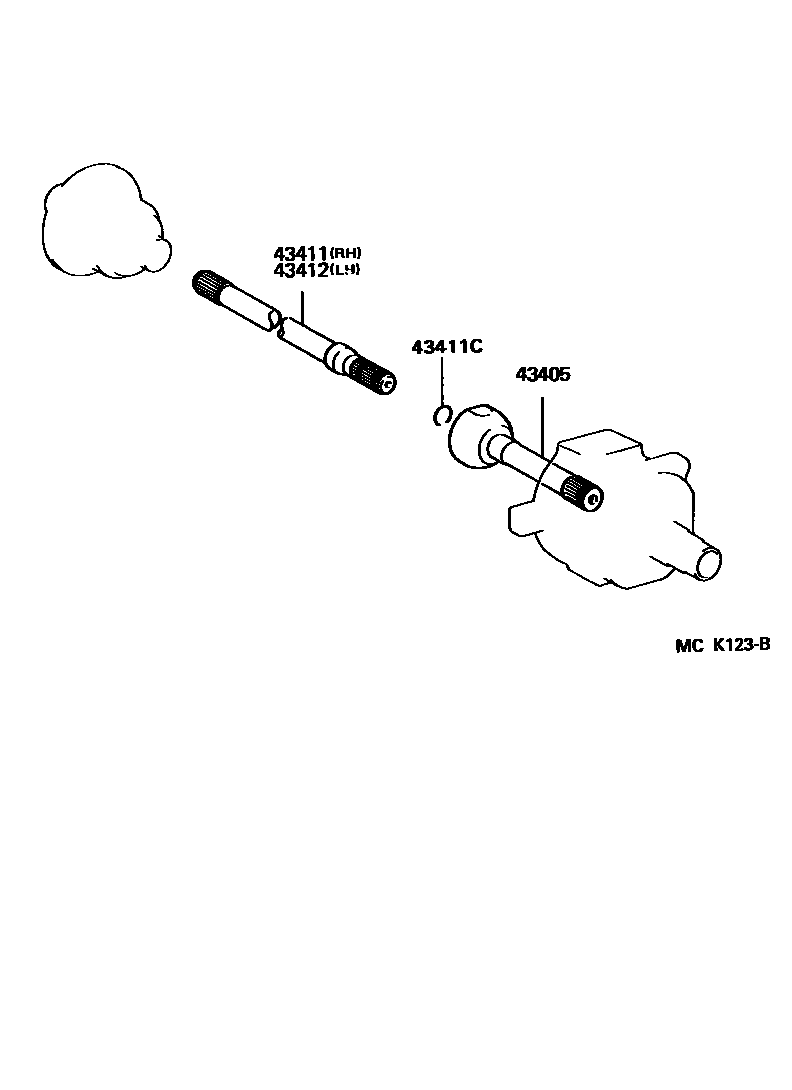

FRONT DRIVE SHAFT

43405SHAFT SUB-ASSY, FRONT AXLE OUTER

main43405-60030×2iFJ80199001-199208

main43405-60050×2iFZJ80199208-199404

L=238.5

main43405-60060×2iFZJ80199208-199404

W(*66),L=238.5

main43405-60070×2iFZJ80199501-199801

main43405-60080×2iFZJ80199404-199501

L=246.5

43411SHAFT, FRONT AXLE, INNER RH

main43411-60040iFJ80,FZJ80199001-199801

43411CRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER)

main90521-34005×2iFJ80,FZJ80199001-199801

43412SHAFT, FRONT AXLE, INNER LH

main43412-60070iFJ80,FZJ80199001-199801

4 parts on this diagram · 1 diagram in section
