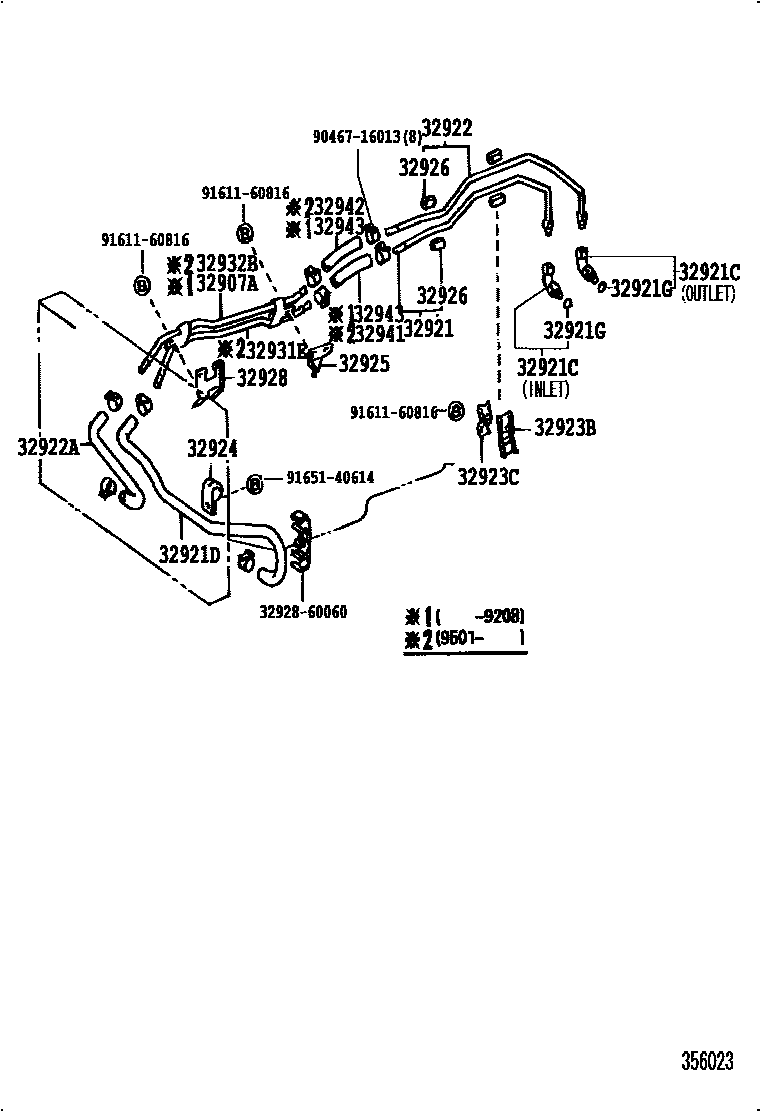

OIL COOLER & TUBE (ATM)

0001 1 0002 1AIR COOLED TYPE OIL COOLER

32907ATUBE, OIL COOLER

main32907-60030iFJ80199001-199208

32921TUBE, OIL COOLER INLET, NO.1

main32921-60050iFJ80199001-199208

main32921-60070iFZJ80199501-199801

main32921-60130iFZJ80199208-199501

32921CUNION(FOR OIL COOLER TUBE)

main90407-14027iFZJ80199501-199801

INLET

main90407-14029iFZJ80199501-199801

OUTLET

main90407-20004iFJ80,FZJ80199001-199501

OUTLET

main90407-20005iFJ80199001-199208

INLET

main90407-20006iFZJ80199305-199501

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-60110iFZJ80199208-199801

main32942-60070iFJ80199001-199208

main32942-60080iFJ80199001-199208

W(AIR COOLED TYPE OIL COOLER)

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iFZJ80199208-199801

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-60050iFJ80199001-199208

main32922-60070iFZJ80199208-199501

main32922-60140iFZJ80199501-199801

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-35011iFJ80199001-199208

main32942-60230iFZJ80199302-199310

main32942-60231iFZJ80199310-199801

main32942-60260iFZJ80199208-199302

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-60050iFZJ80199208-199501

main32923-60060iFJ80199001-199208

sub32923-25010

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main90462-12076iFJ80199001-199501

32924CLAMP, OIL COOLER TUBE, NO.2

main32909-60020iFZJ80199208-199801

main90461-08594iFJ80199001-199208

32925CLAMP, OIL COOLER TUBE, NO.3

main32909-60030iFZJ80199208-199801

main32925-60060iFJ80199001-199208

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-60010×4iFJ80199001-199208

L=45,ID=12

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-60040iFJ80199001-199208

32931ETUBE, OIL COOLER INLET, FRONT

main32931-60010iFZJ80199501-199801

32932BTUBE, OIL COOLER OUTLET, FRONT

main32932-60010iFZJ80199501-199801

32941HOSE, OIL COOLER INLET, NO.1

main32941-60170iFZJ80199501-199801

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-60270iFZJ80199501-199801

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-60090×2iFJ80199001-199208

3292860060CLAMP, FLEXIBLE HOSE, NO.1

main32928-60060

9046716013

main90467-16013

9161160816

main91611-60816

9165140614

main91651-40614

22 parts on this diagram · 2 diagrams in section
