STANDARD TOOL

09110JACK ASSY

main09110-60100iFZJ80199208-199801

main09111-60060iFJ80199001-199208

sub09110-60100

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010iFZJ80199208-199501

main09114-60050iFJ80199001-199208

sub09114-28010

main09114-60060iFZJ80199501-199508

main09114-60070iFZJ80199508-199801

09115ROD SUB-ASSY, JACK HANDLE

main09115-60040iFJ80,FZJ80199001-199801

09116LEVER, JACK HANDLE

main09116-35041iFJ80,FZJ80199001-199508

main09116-60010iFZJ80199508-199801

09120BAG, TOOL

main09120-60100iFJ80199001-199108

sub09120-60102

main09120-60110iFJ80,FZJ80199108-199305

main09120-60111iFZJ80199305-199801

09130PLIERS

main99913-11500iFJ80,FZJ80199001-199801

09135DRIVER, SCREW

main99915-10700iFJ80,FZJ80199001-199801

09135ABIT, SCREW DRIVER

main09135-60010iFJ80,FZJ80199001-199501

09141SPANNER

main99914-10810iFJ80,FZJ80199001-199801

8 X 10

main99914-11214iFJ80,FZJ80199001-199801

12 X 14

09150WRENCH, HUB NUT BOX

main09150-60020iFJ80199001-199801

09155WRENCH, SPARK PLUG

main09155-44010iFJ80199001-199208

main09155-74010iFZJ80199208-199801

09183WRENCH, WHEEL CAP

main09183-00030iFJ80,FZJ80199001-199801

09183AREPLACER, WHEEL CAP

main09183-60010iFJ80199001-199208

main09183-60020iFZJ80199208-199305

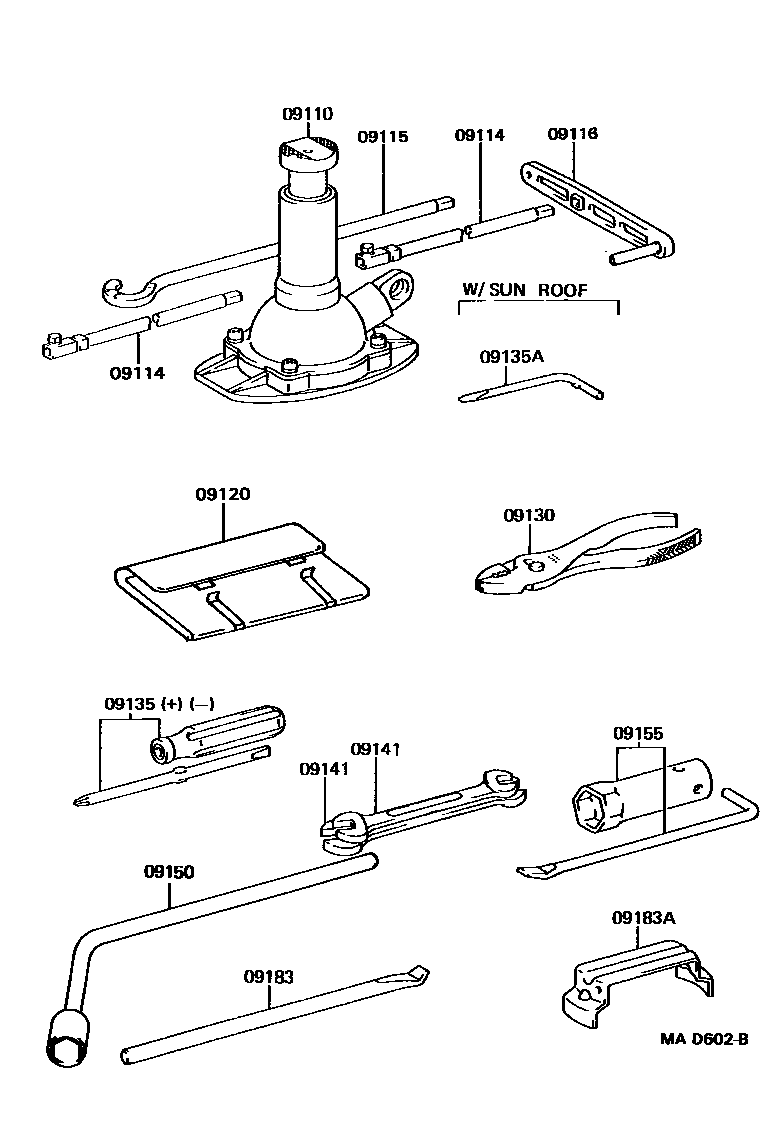

13 parts on this diagram · 1 diagram in section
