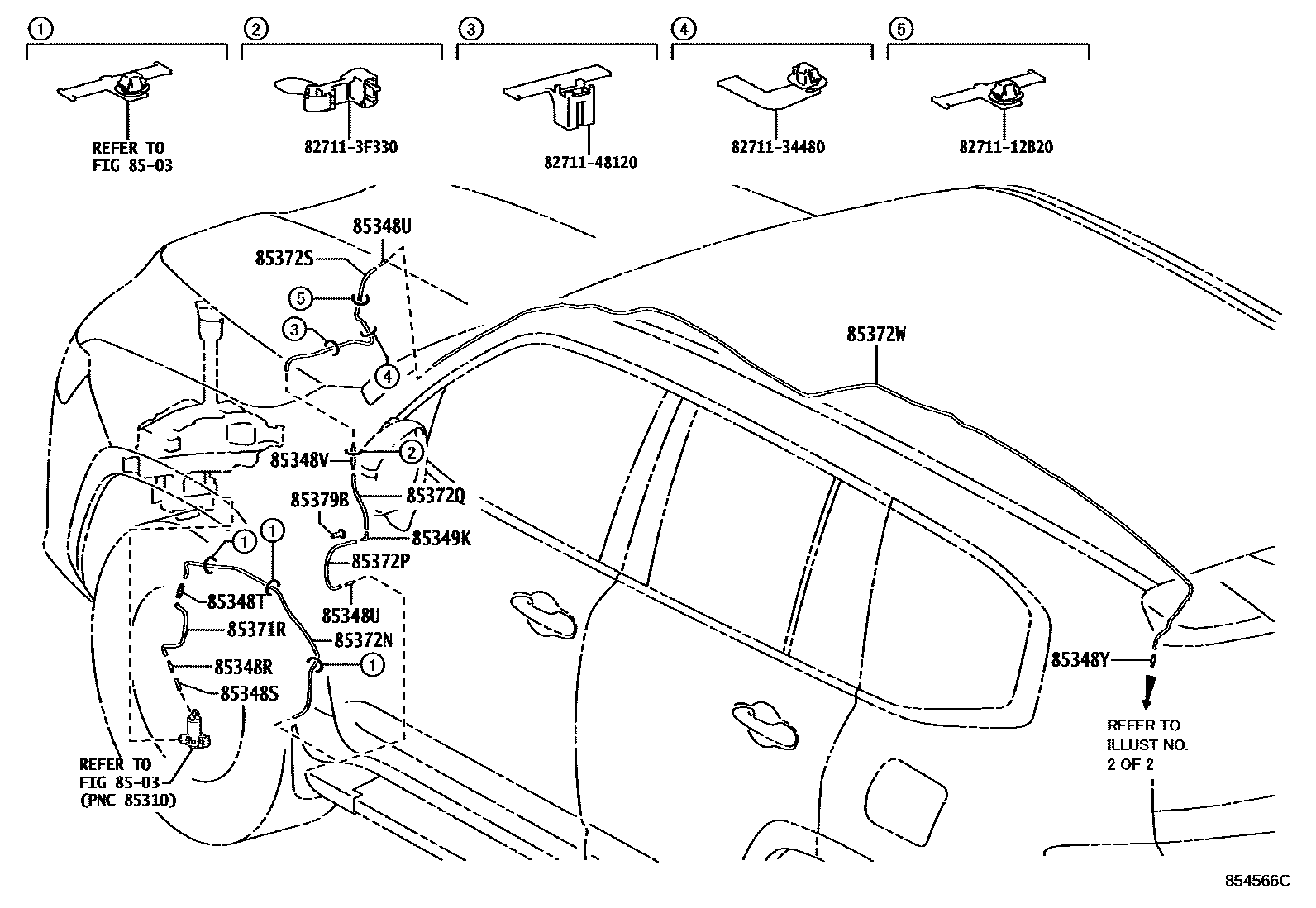

REAR WASHER
8503
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
main85355-14481iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
85348TJOINT, REAR WASHER HOSE, NO.2
main85349-89122iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
85348UJOINT, REAR WASHER HOSE, NO.3
main85349-89122iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
main85349-89122iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
85349KJOINT, REAR WASHER ELBOW, NO.2
main85355-20200iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
main90099-62085iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=340
main90099-62085iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=340,HEADLAMP CLEANER-WITH
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
main90099-62251iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=950
main90099-62251iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=950,COLD AREA SPEC&WINDSHIELD GLASS-GREEN(WITH TOP SHADE, ACOUSTIC TYPE)&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)
main90099-62251iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=950,WITHOUT(COLD AREA SPEC)&WINDSHIELD GLASS-GREEN(WITH TOP SHADE)&WINDSHIELD DEICER-WITHOUT
main90099-62251iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=950,WITHOUT(COLD AREA SPEC)&WINDSHIELD DEICER-WITHOUT
main90099-62251iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
L=950,WINDSHIELD GLASS-GREEN(WITH TOP SHADE)&WINDSHIELD DEICER-WITH(FOR WIPER)
main90099-62251iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=950,WINDSHIELD DEICER-WITH(FOR WIPER)
main90099-62251iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
L=950,WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=210
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=210,MOON ROOF-WITH
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=210,MOON ROOF-WITH(REMOTE CONTROL)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
L=210,MOON ROOF-WITH(REMOTE CONTROL)&PERIPHERAL MONITOR CAMERA-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
L=210,MOON ROOF-WITHOUT
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
L=210,MOON ROOF-WITHOUT&PERIPHERAL MONITOR CAMERA-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
L=210,PERIPHERAL MONITOR CAMERA-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=210,MOON ROOF-WITH&BACK MONITOR-WITH(WITH/BACK GIDE MONITOR & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=210,MOON ROOF-WITH(REMOTE CONTROL)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=210,MOON ROOF-WITH(REMOTE CONTROL)&BACK MONITOR-WITH(WITH/BACK GIDE MONITOR & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=210,BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=210,BACK MONITOR-WITH(WITH/BACK GIDE MONITOR & WASHER)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=200
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=200,MOON ROOF-WITH
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=200,MOON ROOF-WITH(REMOTE CONTROL)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
L=200,MOON ROOF-WITH(REMOTE CONTROL)&PERIPHERAL MONITOR CAMERA-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
L=200,MOON ROOF-WITHOUT
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
L=200,MOON ROOF-WITHOUT&PERIPHERAL MONITOR CAMERA-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
L=200,PERIPHERAL MONITOR CAMERA-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=200,MOON ROOF-WITH&BACK MONITOR-WITH(WITH/BACK GIDE MONITOR & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=200,MOON ROOF-WITH(REMOTE CONTROL)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=200,MOON ROOF-WITH(REMOTE CONTROL)&BACK MONITOR-WITH(WITH/BACK GIDE MONITOR & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=200,BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=200,BACK MONITOR-WITH(WITH/BACK GIDE MONITOR & WASHER)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=580
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=580,MOON ROOF-WITH
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=580,MOON ROOF-WITH(REMOTE CONTROL)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
L=580,MOON ROOF-WITH(REMOTE CONTROL)&PERIPHERAL MONITOR CAMERA-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
L=580,MOON ROOF-WITHOUT
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
L=580,MOON ROOF-WITHOUT&PERIPHERAL MONITOR CAMERA-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411
L=580,PERIPHERAL MONITOR CAMERA-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=580,MOON ROOF-WITH&BACK MONITOR-WITH(WITH/BACK GIDE MONITOR & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=580,MOON ROOF-WITH(REMOTE CONTROL)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=580,MOON ROOF-WITH(REMOTE CONTROL)&BACK MONITOR-WITH(WITH/BACK GIDE MONITOR & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=580,BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
L=580,BACK MONITOR-WITH(WITH/BACK GIDE MONITOR & WASHER)
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
main90099-62248iVJA300..5S..S;FJA300..V..GEN;FJA300..5S..GCC;VJA300..RHD..(A,S,Z);FJA300..(A,S,Z)..EUR;FJA300..7S..(A,G,S,Z);FJA300..(G,V)..(ARL,EUR);VJA300..LHD..S..(GCC,GEN);GRJ3202104-202411
L=3250
main90099-62248iVJA300..5S..S;FJA300..V..GEN;FJA300..5S..GCC;VJA300..RHD..(A,S,Z);FJA300..(A,S,Z)..EUR;FJA300..7S..(A,G,S,Z);FJA300..(G,V)..(ARL,EUR);VJA300..LHD..S..(GCC,GEN);GRJ3202411
L=3250,MOON ROOF-WITHOUT
main90099-62248iVJA300..5S..S;FJA300..V..GEN;FJA300..5S..GCC;VJA300..RHD..(A,S,Z);FJA300..(A,S,Z)..EUR;FJA300..7S..(A,G,S,Z);FJA300..(G,V)..(ARL,EUR);VJA300..LHD..S..(GCC,GEN);GRJ3202411
L=3250,MOON ROOF-WITHOUT&PERIPHERAL MONITOR CAMERA-WITH(WITH/*PVM & *MTMO & WASHER)
main90099-62248iVJA300..5S..S;FJA300..V..GEN;FJA300..5S..GCC;VJA300..RHD..(A,S,Z);FJA300..(A,S,Z)..EUR;FJA300..7S..(A,G,S,Z);FJA300..(G,V)..(ARL,EUR);VJA300..LHD..S..(GCC,GEN);GRJ3202411
L=3250,PERIPHERAL MONITOR CAMERA-WITH(WITH/*PVM & *MTMO & WASHER)
L=3250,BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)
L=3250,BACK MONITOR-WITH(WITH/BACK GIDE MONITOR & WASHER)
L=3270,MOON ROOF-WITH
L=3270
L=3270,MOON ROOF-WITH(REMOTE CONTROL)
L=3270,MOON ROOF-WITH(REMOTE CONTROL)&PERIPHERAL MONITOR CAMERA-WITH(WITH/*PVM & *MTMO & WASHER)
L=3270,PERIPHERAL MONITOR CAMERA-WITH(WITH/*PVM & *MTMO & WASHER)
85379BGROMMET, WASHER, A
main85379-12850iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
8271112B20WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12B20
8271134480WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-34480
827113F330WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F330
8271148120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-48120
19 parts on this diagram · 3 diagrams in section
